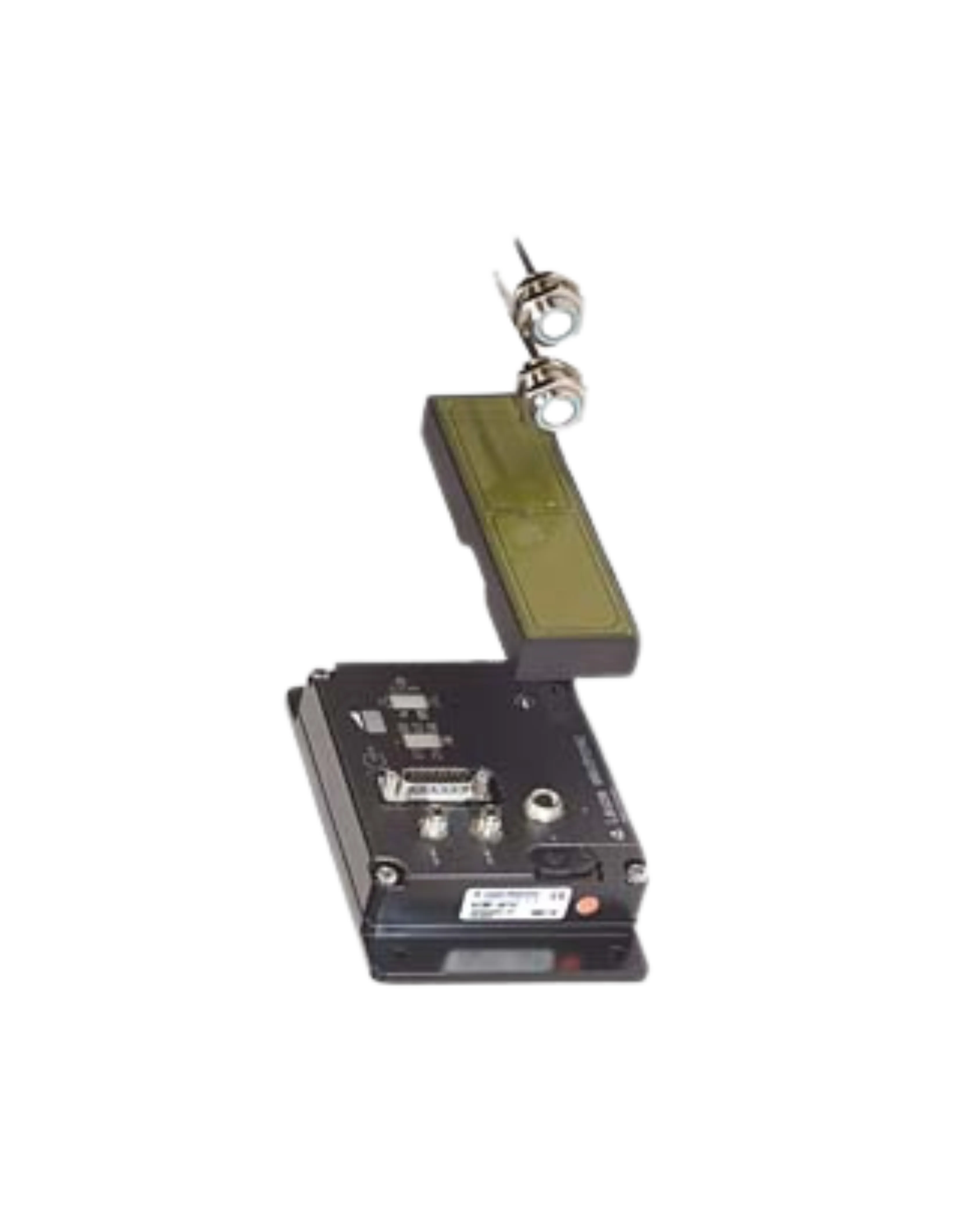

Leuze VDB 14B/2 Double Sheet Monitoring Amplifier

The Leuze VDB 14B/2 is a double sheet monitoring amplifier combining capacitive and ultrasonic sensing principles, built for multi-zone sheet monitoring applications needing more switching outputs than the compact VDB 112 series.

It runs from 18 to 30V DC, provides 7 digital NPN transistor switching outputs at up to 200Hz switching frequency, connects via a Sub-D main connector plus additional 3-pin and 5-pin connectors, and is housed in a cubic aluminum enclosure rated IP54 for 0 to 40 degrees C operation.
