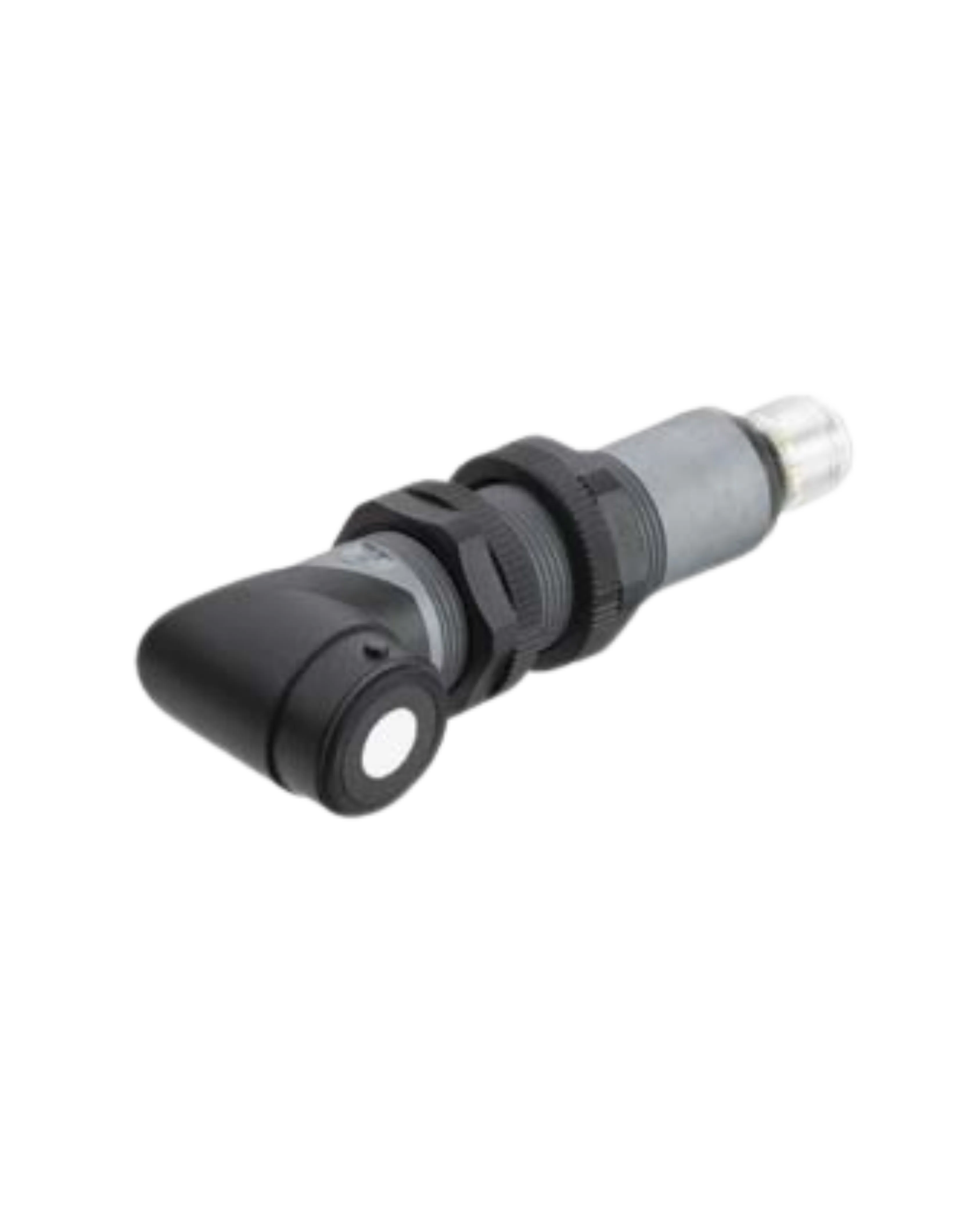

Leuze HTU318-1600.W/32NK-M12 Angled Ultrasonic Sensor

The Leuze HTU318-1600.W/32NK-M12 is a 90 degree angled ultrasonic sensor with 2 independent switching outputs, built for detecting liquids, bulk materials and transparent media largely independent of surface properties, with a small dead zone at long scanning range.

It covers a scanning range of 150 to 1600mm with teach-in adjustable switching points on each output, reversible NO/NC function, a 230kHz ultrasonic frequency with an 8 degree opening angle, runs from 10 to 30V DC drawing up to 50mA, and is housed in a stable plastic (PBT) enclosure rated IP67 with an epoxy resin active face and a 75g weight.
