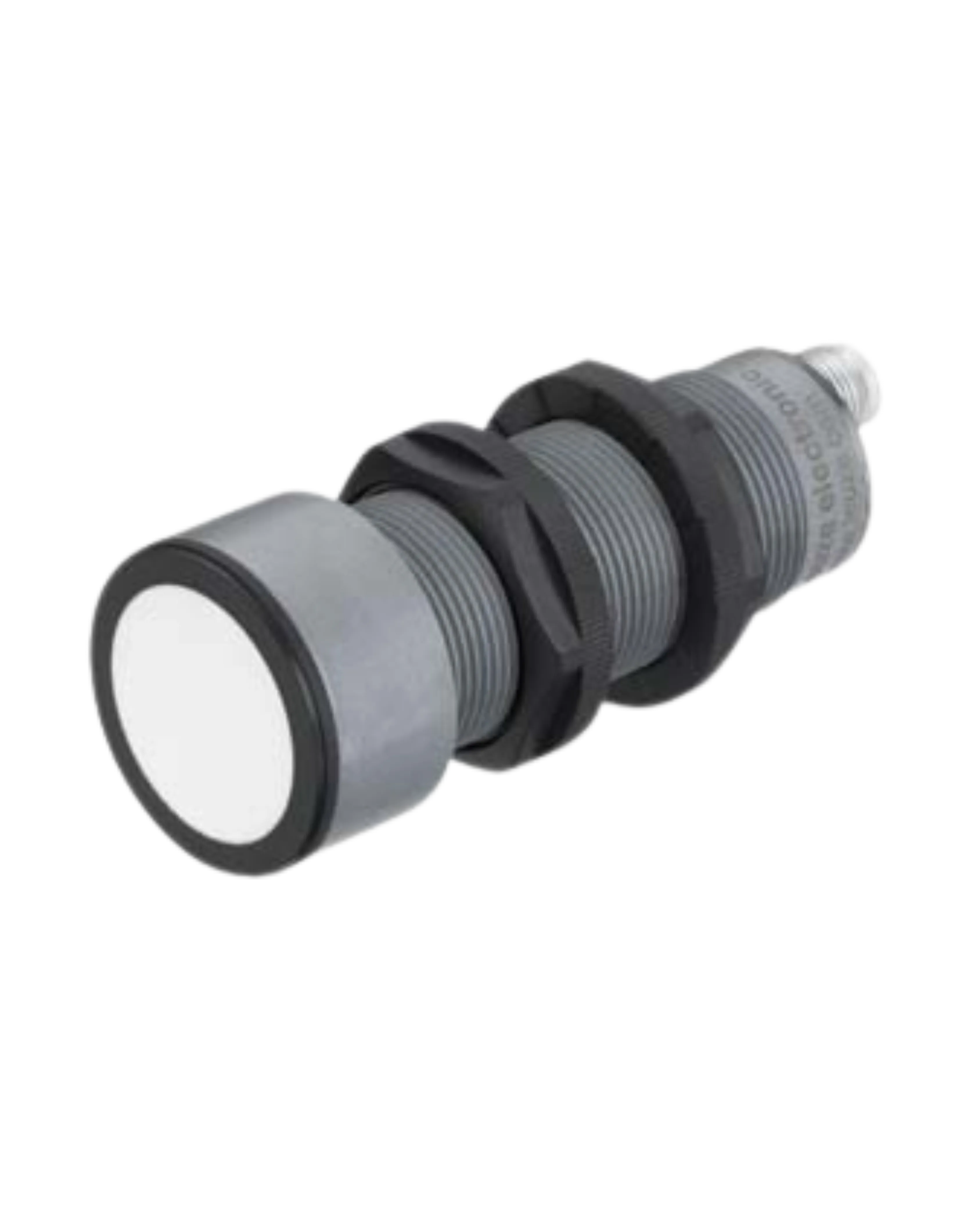

Leuze HTU330-6000.3/4PK-M12 Long-Range Ultrasonic Sensor

The Leuze HTU330-6000.3/4PK-M12 is a long-range axial-beam ultrasonic sensor with 2 independent switching outputs, built for detecting liquids, bulk materials and transparent media over extended distances with a small dead zone.

It covers an operating range of 350 to 6000mm with teach-in adjustable switching points on each output, reversible NO/NC function, a 75kHz ultrasonic frequency with a 9 degree opening angle, runs from 12 to 30V DC drawing up to 50mA, and is housed in a stable plastic (PBT) enclosure with an epoxy resin active face weighing 170g.
