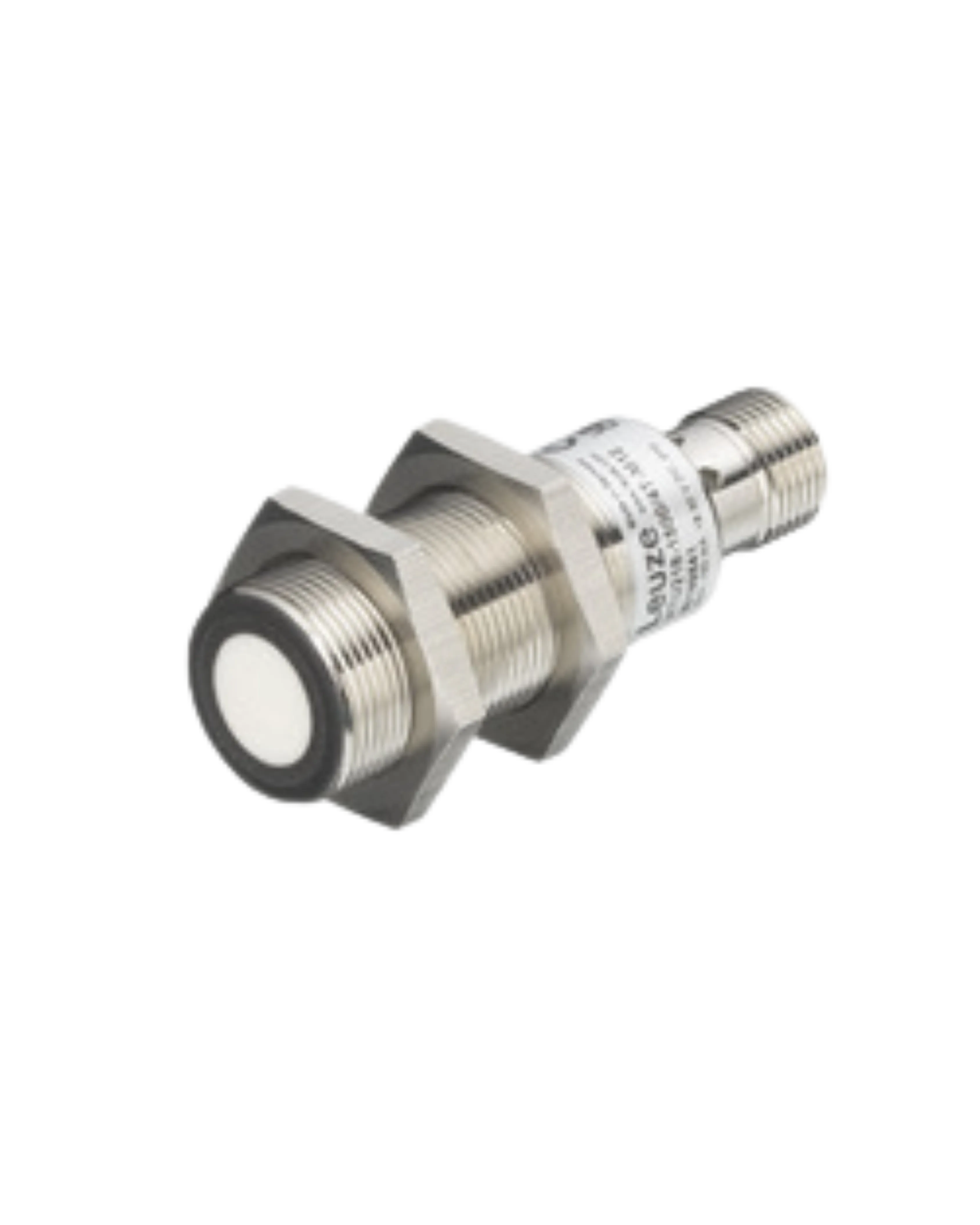

Leuze HTU218-1500/LT-M12 Ultrasonic Sensor with IO-Link

The Leuze HTU218-1500/LT-M12 is an ultrasonic diffuse reflection sensor with background suppression and IO-Link connectivity, used for mid-range object and level detection largely independent of target color or material.

It covers an operating range of 0.15 to 1.5m with a 150 to 1500mm adjustable switching point, uses a 200kHz ultrasonic frequency with a 16 degree opening angle, 1mm resolution and 0.07% repeatability, runs from 18 to 30V DC with a push-pull output supporting IO-Link (COM2, V1.1), and connects via a 4-pin A-coded M12 male connector; MTTF is rated at 677 years.
