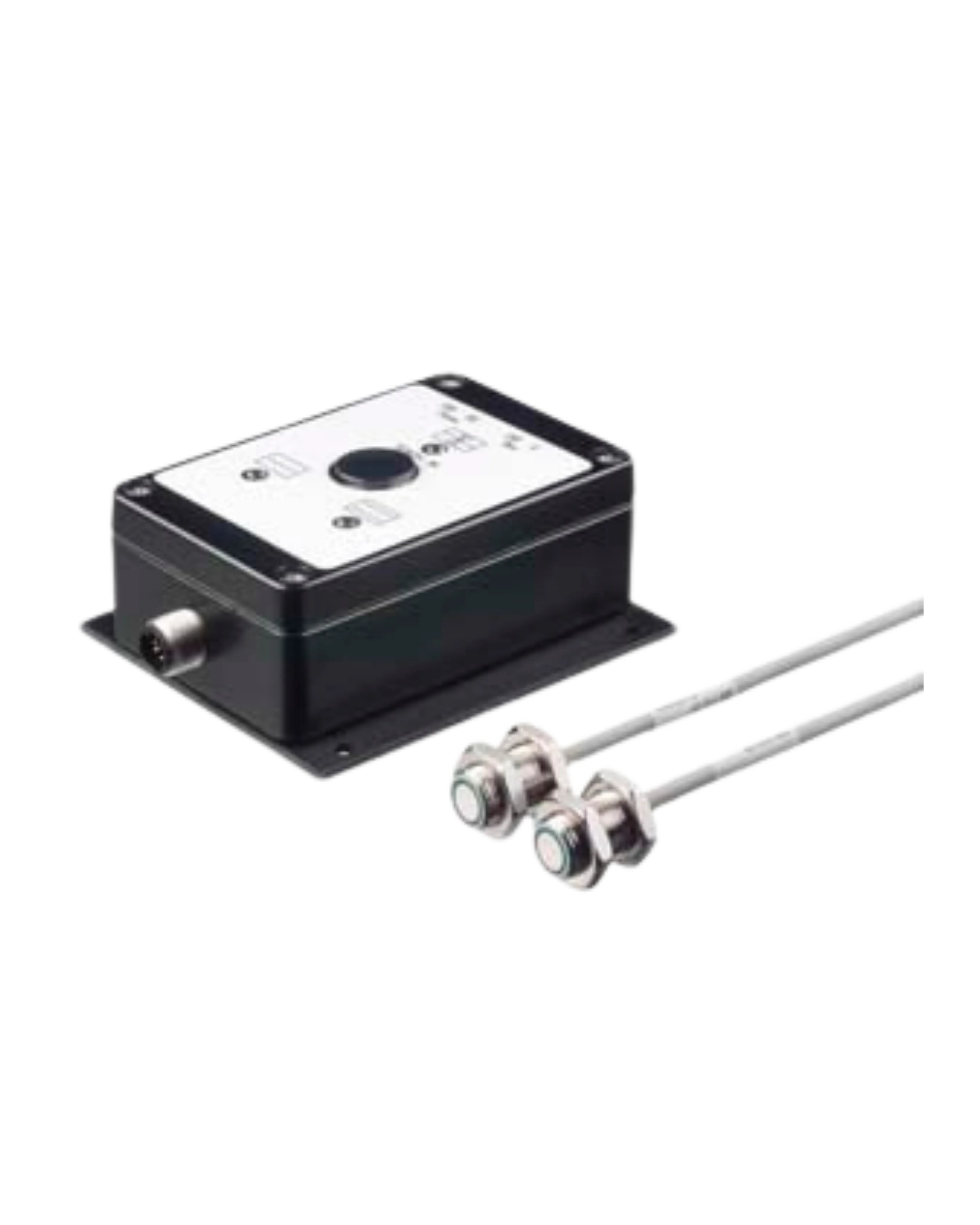

Leuze VDB 112B/6P Double Sheet Monitoring Amplifier

The Leuze VDB 112B/6P is an ultrasonic double sheet monitoring amplifier that pairs with a Leuze DB-series ultrasonic sensor head to detect single-sheet, double-sheet or missing-sheet conditions on sheet-feeding machinery.

It runs from 18 to 30V DC, provides a teach input and 2 PNP transistor switching outputs (single sheet detected / double sheet detected) at up to 200Hz switching frequency, connects via a 5-pin M12 connector, and is housed in a cubic aluminum enclosure rated IP65, c UL US approved.
