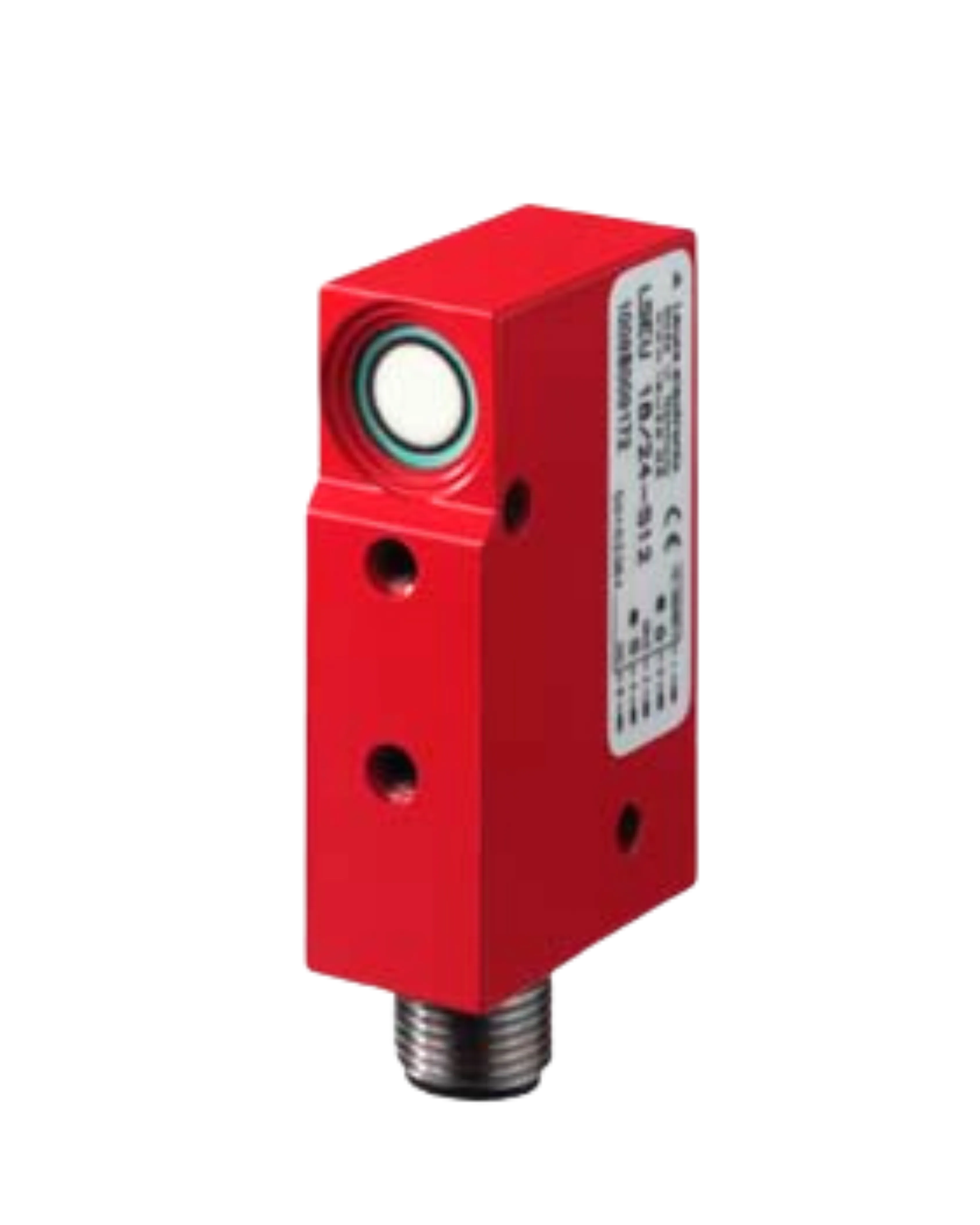

Leuze LSEU 18/24-S12 Ultrasonic Throughbeam Sensor Receiver

The Leuze LSEU 18/24-S12 is the receiver half of an LSU 18 ultrasonic throughbeam sensor pair, giving color- and transmission-independent object detection even in humid or foggy environments, optimized for air transport systems and narrow-gap detection.

It covers an operating range of 0 to 650mm in adjustable increments (5 switch positions), uses a 300kHz ultrasonic frequency with a 12 degree opening angle, runs from 10 to 30V DC drawing up to 15mA, gives a combined PNP and NPN transistor output up to 100Hz switching frequency, and is housed in a dust-insensitive metal body rated IP65 with a 5-pin M12 connector.
