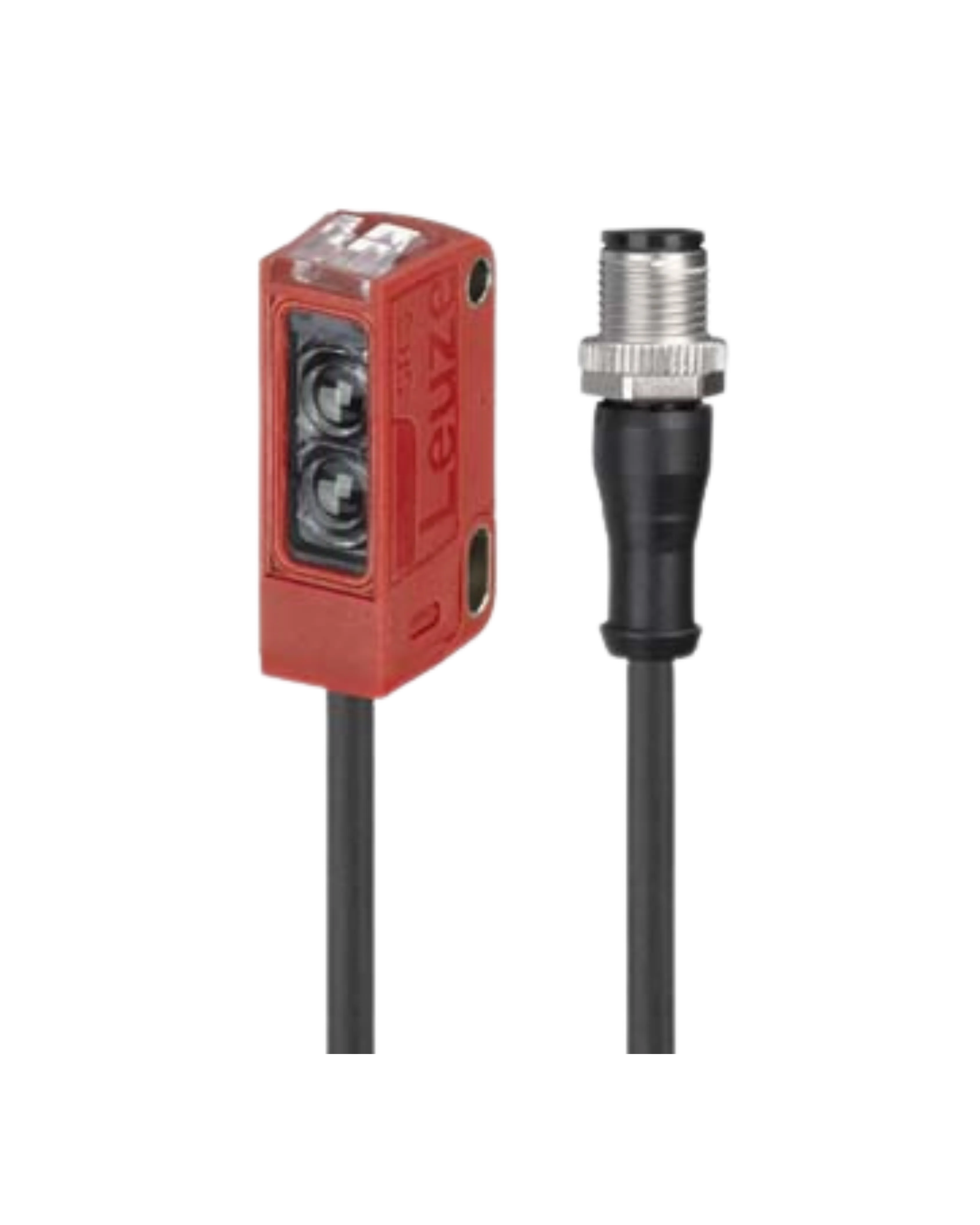

Leuze LS3C/8X-1000-M12 Throughbeam Photoelectric Sensor Transmitter

The Leuze LS3C/8X-1000-M12 is the transmitter half of a throughbeam photoelectric sensor pair, with a guaranteed operating range of up to 8.5m (typical up to 10m) and an activation input for remote enable/disable control.

It uses a pulsed red LED light source at 632nm with a round 4mm light spot at 100mm distance, runs from 10 to 30V DC drawing up to 20mA, connects via a fixed 1000mm PUR cable terminated in a 4-pin A-coded M12 connector, and is housed in a compact plastic (PC-ABS) body.
