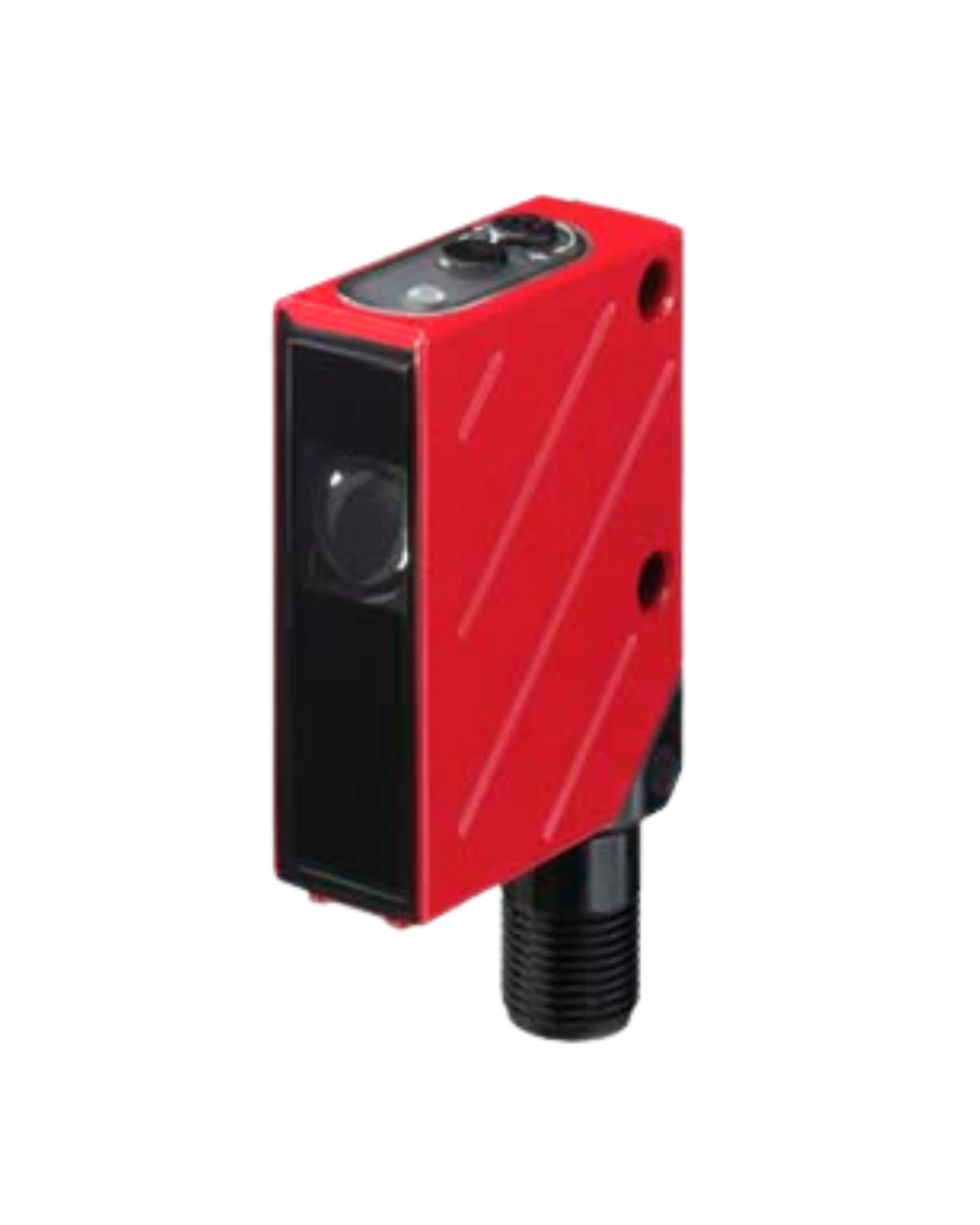

Leuze LRT 8 44.04-100-S12 Luminescence Sensor

The Leuze LRT 8 series luminescence sensor detects luminescent objects and markings using UV (370nm) or blue (470nm) LED illumination, with various filter and light-spot-size options and a rotatable M12 connector for flexible mounting.

It covers a scanning range of 0 to 500mm, switches at up to 1500Hz with a 0.33ms response time, offers a sensitivity adjustment via a 12-turn potentiometer, runs from 10 to 30V DC, and is housed in a metal body with a glass optics cover rated IP67/IP69K for -20 to +60 degrees C operation.
