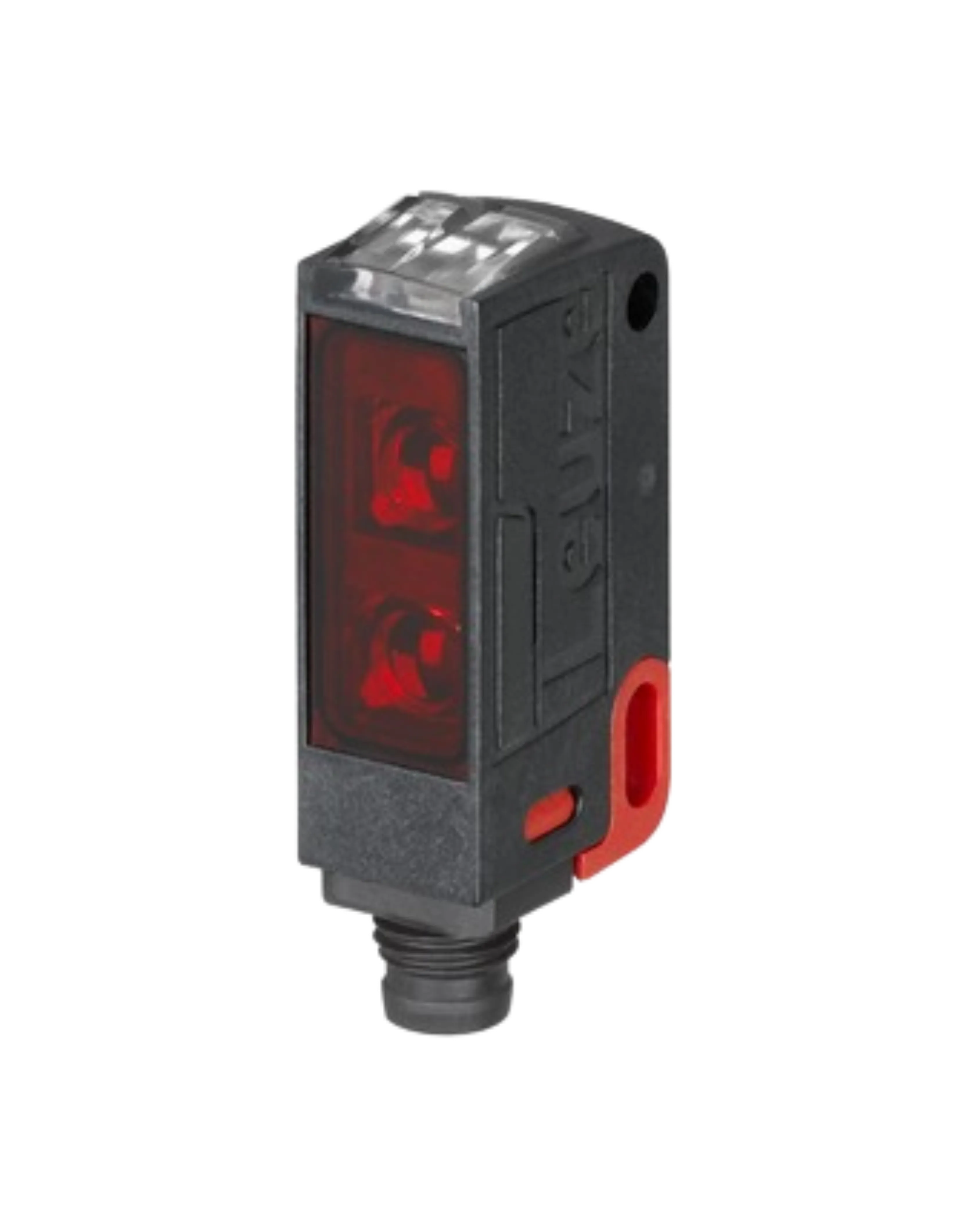

Leuze LE23/PX-M8 Throughbeam Photoelectric Sensor Receiver

The Leuze LE23/PX-M8 is the receiver half of a throughbeam photoelectric sensor pair, used for reliable long-range object detection where sensing range is defined by the matching transmitter unit.

It runs from 10 to 30V DC, gives a PNP transistor dark-switching output rated up to 100mA with a 500Hz switching frequency and 1ms response time, connects via a 4-pin M8 connector, and is housed in a compact plastic (PC-ABS) body rated IP67 for -40 to +60 degrees C operation, c UL US approved.
