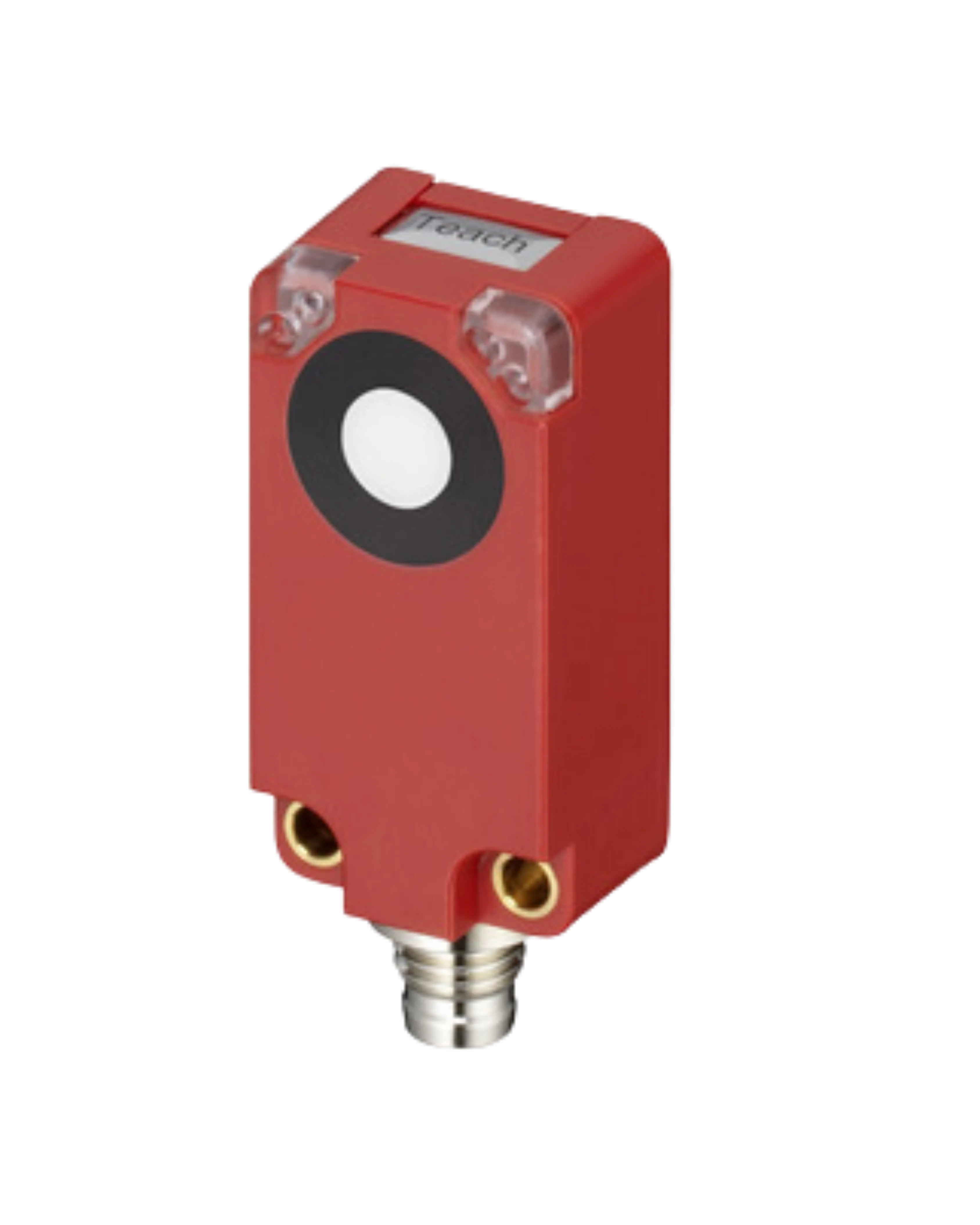

Leuze HTU420B-1000.3/L6-M8 Cubic Ultrasonic Sensor with IO-Link

The Leuze HTU420B-1000.3/L6-M8 is a cubic-housing ultrasonic diffuse reflection sensor with background suppression and IO-Link connectivity, supporting synchronous multiplex operation when multiple units are installed close together.

It covers an operating range of 0.02 to 1m with a narrow 1 to 5 degree opening angle at 220kHz, sub-millimeter resolution (less than 0.3mm), 2 push-pull digital switching outputs (IO-Link / PNP-NPN selectable), runs from 12 to 30V DC, connects via a 4-pin M8 connector, and is rated with an MTTF of 422 years.
