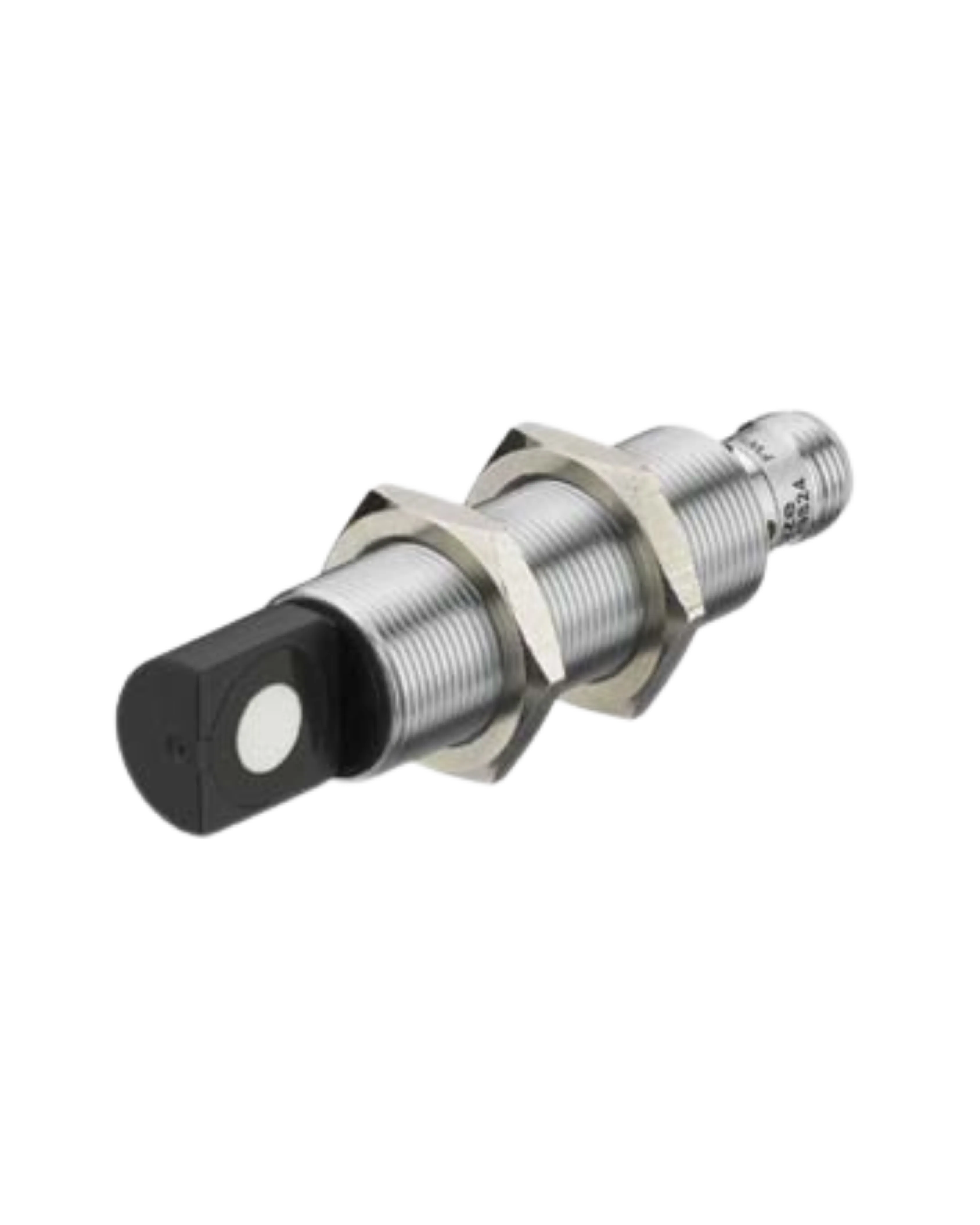

Leuze HTU418B-1300.W/4T4-M12 Angled Ultrasonic Sensor

The Leuze HTU418B-1300.W/4T4-M12 is a 90 degree angled ultrasonic sensor in an all-metal (nickel-plated brass) housing, with 2 independently teachable PNP switching outputs, built for detecting liquids, bulk materials and transparent media.

It covers a scanning range of 150 to 1300mm, reversible NO/NC function per output, a 200kHz ultrasonic frequency with a 16 degree opening angle, runs from 15 to 30V DC drawing up to 50mA, connects via a 5-pin M12 connector, and is rated IP67/IP68 for operating temperatures from -25 to +70 degrees C.
