ABB Variable Speed Drives (VSD): Complete Guide, Features, Benefits & Applications
In modern industrial automation, energy efficiency and process control are critical for achieving high performance and reducing operational costs. One of the most effective solutions for optimizing motor performance is the use of ABB Variable Speed Drives (VSDs).

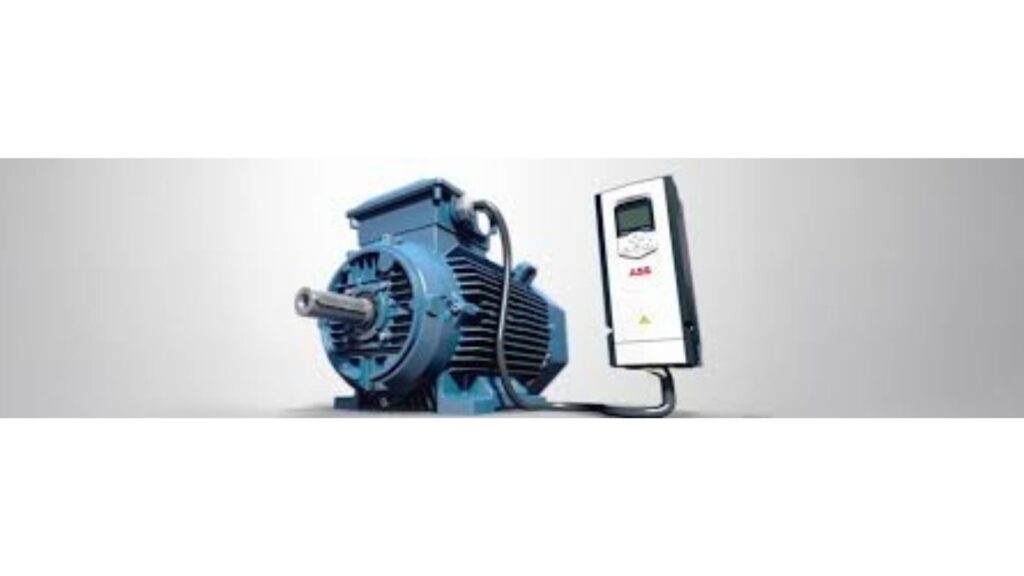

ABB Variable Speed Drives, also known as ABB VFD drives (Variable Frequency Drives), are advanced devices that control the speed and torque of electric motors by adjusting the frequency and voltage supplied to the motor. These drives are widely used in industries across the world to improve efficiency, reduce energy consumption, and enhance system reliability.
In this comprehensive guide, we will explore the features, working principle, types, applications, and benefits of ABB VSD drives.
What is an ABB Variable Speed Drive (VSD)?
An ABB Variable Speed Drive (VSD) is an electronic device designed to regulate the speed of an electric motor by controlling the input power frequency and voltage.
Instead of running motors at full speed continuously, ABB drives allow operators to adjust motor speed according to actual process requirements. This results in significant energy savings and improved system performance.
ABB, a global leader in automation and power technologies, offers a wide range of VSDs suitable for both low voltage (LV) and medium voltage (MV) applications.
How ABB Variable Speed Drives Work
The working principle of an ABB VSD drive is based on converting fixed AC power into variable frequency output.
Basic Working Process:
- Rectifier Stage – Converts AC power into DC
- DC Link – Stabilizes and filters the DC voltage
- Inverter Stage – Converts DC back into AC with variable frequency and voltage
By controlling the frequency, the motor speed can be precisely adjusted, resulting in optimized performance and reduced energy usage.
Key Features of ABB Variable Speed Drives
ABB drives are known for their advanced technology, reliability, and user-friendly operation.
Major Features:
- High energy efficiency (up to 30–60% energy savings)
- Advanced motor control algorithms
- Built-in safety features and protections
- Easy installation and commissioning
- Smart control panels with digital interfaces
- Compatibility with industrial automation systems
- Remote monitoring and diagnostics
These features make ABB VSD drives one of the most preferred choices in industrial applications.
Types of ABB Variable Speed Drives
ABB offers a wide range of drives designed for different industries and applications.
1. General Purpose Drives
These drives are designed for basic applications such as pumps, fans, and conveyors.
Example:
- ABB ACS550 Drive
- Reliable and easy to use
- Suitable for HVAC and water systems
2. Machinery Drives
These drives are used in machine building and OEM applications.
Example:
- ABB ACS355 Drive
- Compact design
- High performance for machinery
3. Industrial Drives
Designed for heavy-duty industrial applications requiring high power and reliability.
Example:
- ABB ACS880 Drive
- Advanced control capabilities
- Suitable for demanding environments
4. Micro Drives
Small-sized drives for simple applications.
Example:
- ABB ACS150 Drive
- Compact and cost-effective
- Ideal for small motors
Applications of ABB VSD Drives
ABB Variable Speed Drives are used in a wide range of industries and applications.
Common Applications:
- HVAC systems (heating, ventilation, air conditioning)
- Water and wastewater treatment plants
- Oil & gas industries
- Cement and steel manufacturing
- Food and beverage processing
- Conveyor systems and material handling
- Pumps, fans, and compressors
These drives help industries achieve better control, efficiency, and operational reliability.
Benefits of ABB Variable Speed Drives
Using ABB VSD drives offers numerous benefits for industrial operations.
1. Energy Savings
One of the biggest advantages of ABB drives is energy efficiency. By controlling motor speed, energy consumption can be reduced significantly, especially in pump and fan applications.
2. Improved Process Control
VSDs allow precise control of motor speed, resulting in better process accuracy and consistency.
3. Reduced Mechanical Stress
Running motors at optimal speeds reduces wear and tear, extending the lifespan of equipment.
4. Lower Maintenance Costs
With reduced stress and improved efficiency, maintenance requirements are minimized.
5. Enhanced System Reliability
ABB drives come with built-in protection features that prevent overload, overheating, and voltage fluctuations.
6. Environmental Benefits
Reduced energy consumption leads to lower carbon emissions, making ABB drives environmentally friendly.
Why Choose ABB Variable Speed Drives?
Choosing the right VSD is critical for achieving long-term efficiency and performance.
ABB is a global leader in power and automation technologies, known for delivering high-quality and reliable solutions.
Reasons to Choose ABB Drives:
- Proven global brand
- Advanced technology and innovation
- Wide product range for all applications
- Strong technical support
- High durability and performance
Installation and Maintenance Tips
To ensure optimal performance of ABB VSD drives:
- Install drives in a clean, dust-free environment
- Ensure proper ventilation and cooling
- Use correct wiring and grounding techniques
- Regularly inspect and clean the drive
- Monitor performance using built-in diagnostics
Following these practices helps maximize the efficiency and lifespan of the drive.
Future Trends in ABB VSD Technology
The future of ABB Variable Speed Drives is focused on smart and connected solutions.
Emerging Trends:
- IoT-enabled smart drives
- Predictive maintenance using AI
- Cloud-based monitoring systems
- Higher efficiency standards (IE4, IE5 motors)
- Integration with Industry 4.0 systems
These advancements will further enhance industrial automation and energy efficiency.
Conclusion
ABB Variable Speed Drives (VSDs) are essential components in modern industrial systems. They provide unmatched energy efficiency, precise motor control, and long-term reliability.
Whether used in HVAC systems, manufacturing plants, or heavy industries, ABB drives help reduce energy costs, improve productivity, and extend equipment life.
For businesses aiming to optimize operations and stay competitive, investing in ABB VFD drives is a smart and future-ready decision.
