Mitsubishi Electric VFD D700

The FR-D700 VFD is a class-leading, ultra-compact variable frequency drive designed for high-performance motor control in general-purpose industrial applications. Often called the “micro-drive” standard, the Mitsubishi FR-D700 VFD combines a space-saving footprint with the rugged reliability Mitsubishi Electric is known for. Whether you are upgrading an old system or building a new one, this inverter provides the efficiency your machinery needs.

Range and Model Classifications

The Mitsubishi FR-D700 VFD series is versatile, supporting various input voltages while delivering consistent 3-phase output to your motors. Choosing the right FR-D700 VFD model ensures maximum energy savings.

Power Supply Type	Model Prefix	Capacity Range (kW)
3-Phase 200V	FR-D720	0.1 kW to 15 kW
3-Phase 400V	FR-D740	0.4 kW to 15 kW
1-Phase 200V	FR-D720S	0.1 kW to 2.2 kW
1-Phase 100V	FR-D710W	0.1 kW to 0.75 kW

FR-D700 Models Price

Model	Power	Voltage	Price (€)
FR-D720S-0.1K	0.1 kW	220V	€520
FR-D720S-0.2K	0.2 kW	220V	€635
FR-D720S-0.4K	0.4 kW	220V	€750
FR-D720S-0.75K	0.75 kW	220V	€880
FR-D720-1.5K	1.5 kW	220V	€920
FR-D720-2.2K	2.2 kW	220V	€960
FR-D740-3.7K	3.7 kW	380V	€1020
FR-D740-5.5K	5.5 kW	380V	€1100
FR-D740-7.5K	7.5 kW	380V	€1280

Key High-Performance Features

• Superior Starting Torque: Achieve 150% torque at a mere 1Hz. This feature makes the Mitsubishi FR-D700 VFD perfect for heavy-start machinery like conveyors.

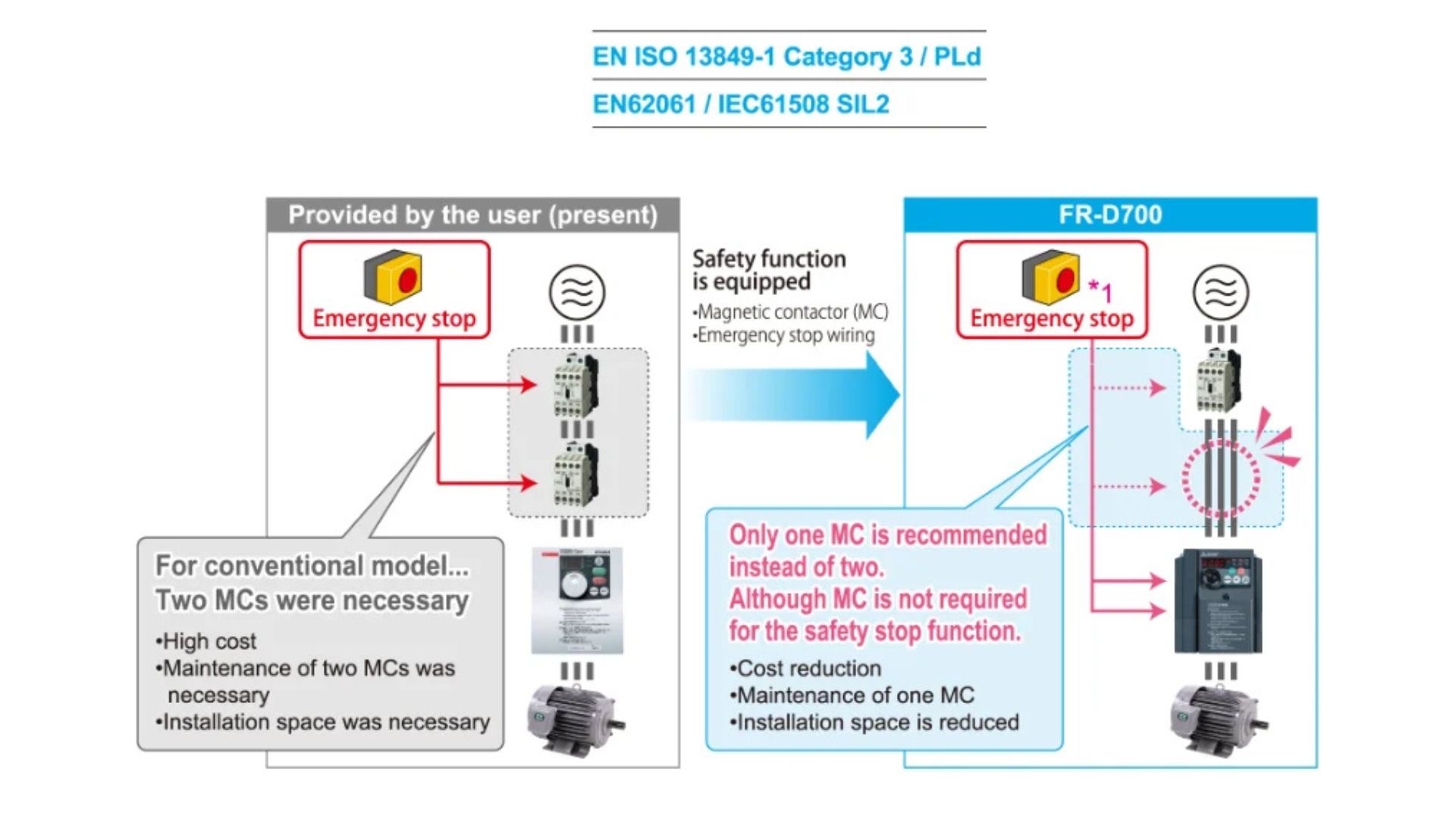

• Integrated Safety Functions: Includes a built-in Emergency Stop (Safety STO). The Mitsubishi FR-D700 VFD complies with EN954-1 Category 3, saving you costs on external safety hardware.

• 10-Year Maintenance-Free Design: The Mitsubishi FR-D700 VFD is engineered for longevity with a 10-year service life rating for cooling fans and capacitors.

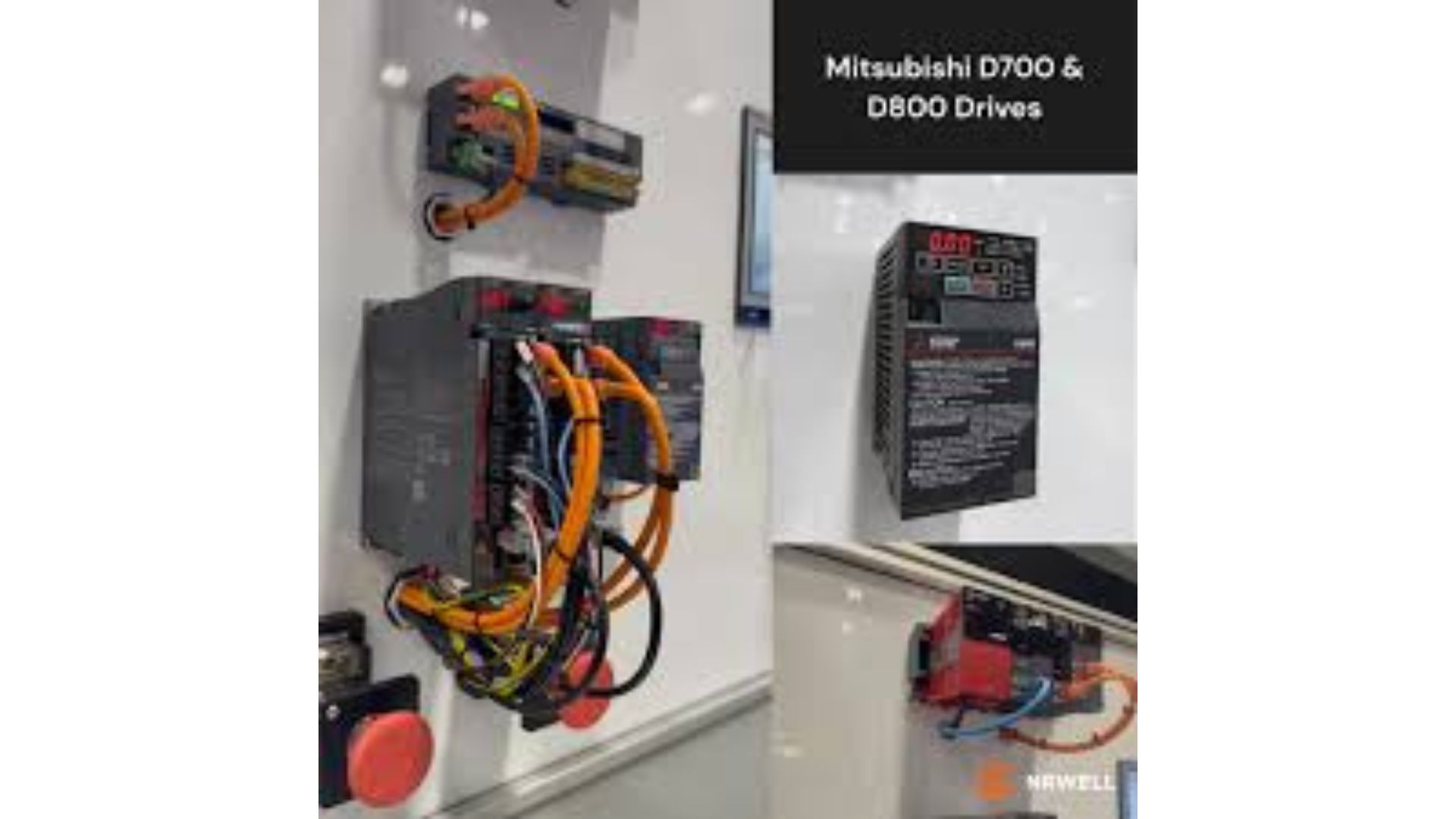

• Vibration-Resistant Wiring: Equipped with Spring Clamp Terminals for secure connections that never need retightening.

• Smart Communication: Native Modbus RTU support allows the Mitsubishi FR-D700 VFD to integrate seamlessly with your PLC.

  • Compact & Space-Saving Design – Perfect for small panels
  • Advanced Motor Control – Stable and smooth speed control
  • Energy Efficient – Reduces power consumption
  • Built-in Brake Transistor – Quick stopping capability
  • Easy Wiring & Setup – User-friendly interface
  • High Overload Capacity – Reliable under heavy loads
  • Long Life Components – Durable and low maintenance
  • Automatic Torque Boost – Better performance at low speeds
  • PID Control Built-in – Ideal for pump & fan applications
  • Protective Functions – Overcurrent, overvoltage, overheating protection

Advanced Technical Specifications

To understand the power of the Mitsubishi FR-D700 VFD, look at these industrial-grade specs:

• Control Method: Soft-PWM / High carrier frequency PWM control for reduced motor noise.

• Output Frequency Range: 0.2 Hz to 400 Hz for high-speed precision.

• Overload Endurance: 150% for 60 seconds; 200% for 0.5 seconds.

• Dynamic Braking: Models 0.4K and above include a built-in brake transistor for high-inertia loads.

• Self-Diagnostics: The “Life Check” monitor on the Mitsubishi FR-D700 VFD alerts you before a component fails.

Installation & Environmental Guidelines

To maximize the life of your Mitsubishi FR-D700 VFD, follow these professional standards:

1. Orientation: Mount the FR-D700 VFD vertically on metal for heat dissipation.

2. Ambient Temperature: Operational between -10°C and +50°C.

3. Side-by-Side Mounting: The FR-D700 VFD supports “Bookshelf” installation with zero horizontal clearance.

4. Cooling Clearance: Maintain 5cm of space above and below the unit.

Easy Parameter Settings & Connectivity

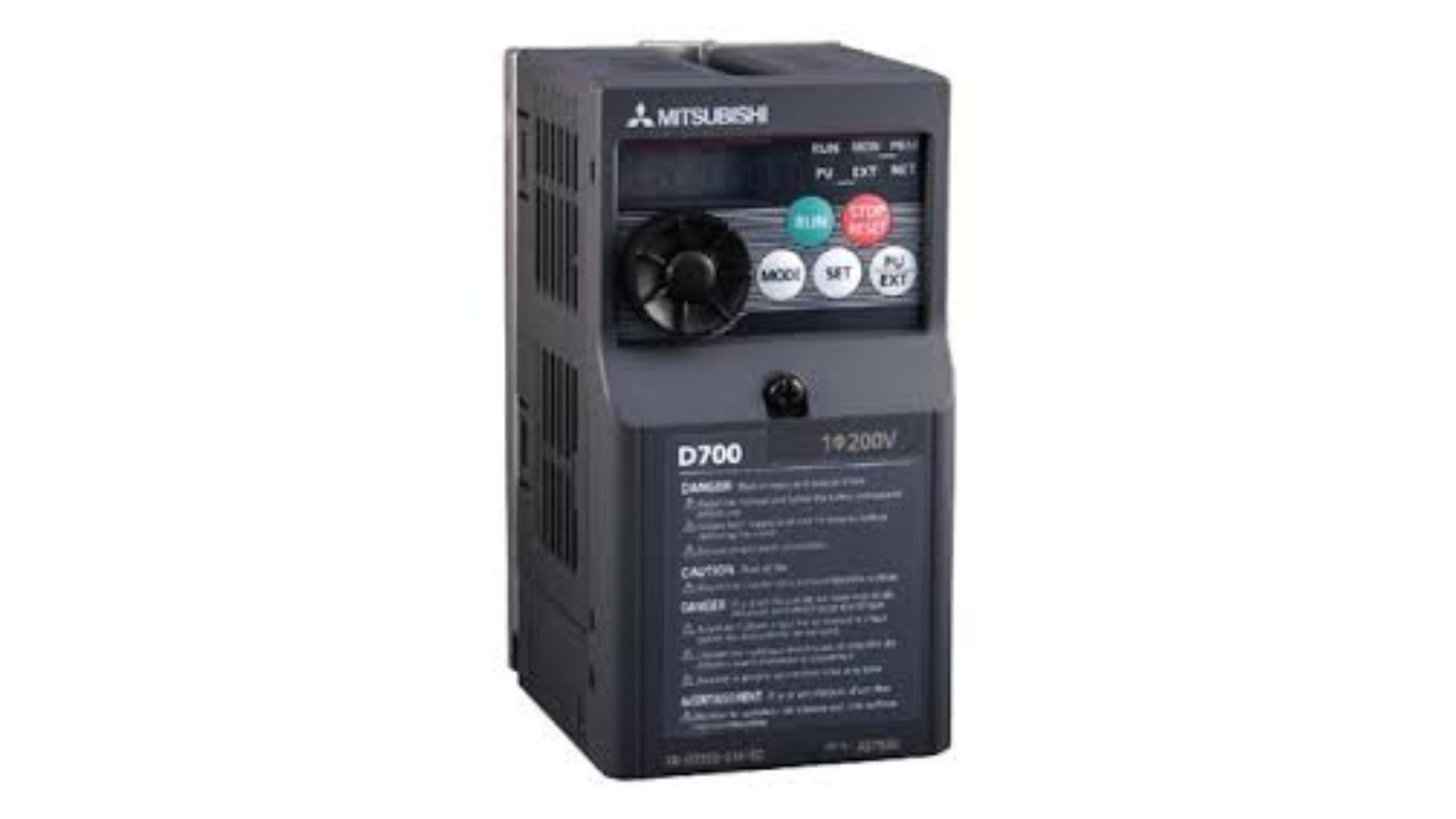

Setting up your Mitsubishi FR-D700 VFD is simple using the digital dial.

• PU Mode: Direct control via the keypad.

• External Mode: Control via terminal signals like switches.

• Network Mode: Remote control of the Mitsubishi FR-D700 VFD via Modbus RTU.

Common Industrial Applications

The FR-D700 VFD is an ideal solution for:

• Conveyor Systems: High torque ensures smooth starts for heavy goods.

• Fans and Pumps: Use the FR-D700 VFD to reduce energy consumption significantly.

• Packaging Machines: Precision speed control for high-speed automated lines.

• Textile Machinery: Reliability in dusty or vibrating environments.

• Industrial automation systems
• Conveyor belts
• HVAC systems
• Pumps and fans
• Packaging machines
• Textile machinery
• Small CNC machines

Benefits

• 🔋 Energy Savings up to 30%
• ⚙️ Improved Machine Life
• 🔇 Reduced Motor Noise
• 🔄 Smooth Start & Stop
• 🛠️ Low Maintenance Cost

Conclusion:

The Mitsubishi FR-D700 VFD is the most cost-effective and reliable “set-and-forget” solution for modernizing industrial motor control. Its mix of safety, durability, and compact design makes the Mitsubishi FR-D700 VFD a top-tier choice for any engineer.
