SINAMICS V20 VFD: Complete Guide, Technical Specs & Price in Pakistan & Italy
The SINAMICS V20 VFD (Variable Frequency Drive) is one of the most popular compact frequency inverters used in industrial automation across Pakistan and Italy. Whether you are running pumps, fans, compressors, or conveyor belts in a textile mill, cement plant, food factory, or water treatment facility, the SINAMICS V20 VFD converter delivers cost-effective, reliable, and energy-efficient motor speed control. In this complete guide, Techno Control Corporation an authorized SINAMICS V20 VFD supplier with offices in Lahore, Pakistan and Turin, Italy covers everything you need to know: features, frame sizes, technical specifications, applications, accessories, and how to get the best price whether you are sourcing from Pakistan or Italy.
Quick Overview — SINAMICS V20 VFD
Power Range: 0.12 kW to 30 kW | Voltage: 1AC 230V & 3AC 380–480V | Frame Sizes: 9 (FSAA to FSE) | Operating Temp: -10°C to +60°C | Communication: USS, Modbus RTU | Available from: Techno Control Corporation — Lahore, Pakistan 🇵🇰 & Turin, Italy 🇮🇹

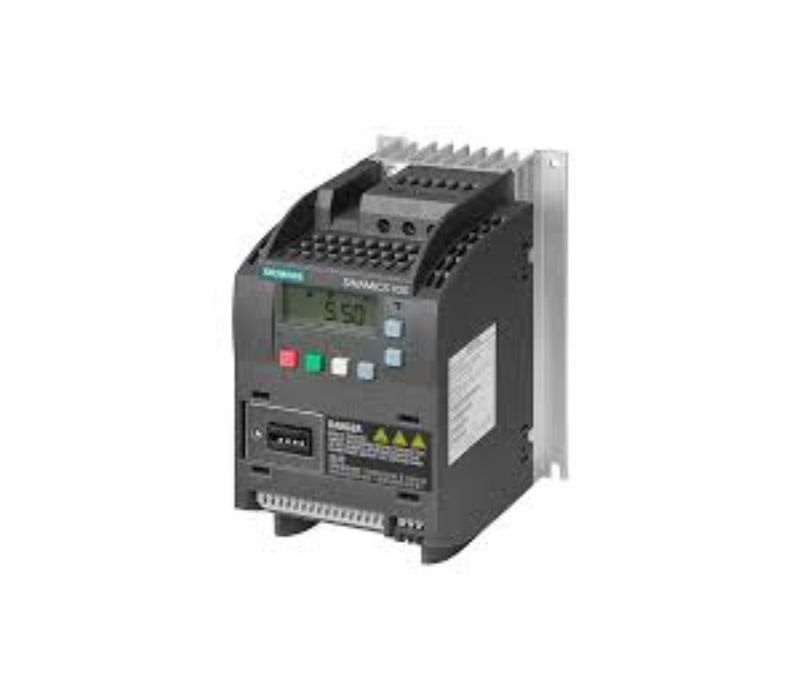

What Is the SINAMICS V20 VFD Inverter?
The SINAMICS V20 VFD is a compact, basic-performance frequency converter (also called a variable frequency drive or VFD) from Siemens’ renowned SINAMICS drives family. It is specifically engineered for simple motion sequences and basic industrial applications, making it ideal for small-to-medium-sized motors in factories across Pakistan and industrial facilities in Italy.
Siemens designed the Siemens VFD SINAMICS V20 to stand out with three core qualities: quick commissioning, ease of operation, and exceptional cost-efficiency. It is the go-to drive for engineers and procurement managers in both Pakistan and Italy who need a proven, globally trusted brand without overspending on features they do not need.
With nine frame sizes covering a power range from 0.12 kW up to 30 kW (0.16 HP to 40 HP), the SINAMICS VFD V20 handles a wide variety of motor control tasks across industries from a small 0.12 kW pump motor to a heavy-duty 30 kW industrial fan drive.
Is the SINAMICS V20 a Constant Torque VFD?
A question frequently asked by engineers and procurement teams is: is the SINAMICS V20 a constant torque VFD?
The answer is yes the SINAMICS V20 supports both constant torque (CT / High Overload) and variable torque (VT / Low Overload) duty cycles, making it highly versatile:
Constant Torque (High Overload HO) Mode: In this mode, the SINAMICS V20 delivers 150% overload current for 60 seconds and 200% for 3 seconds. This makes it fully capable of driving loads that demand constant torque across the entire speed range such as conveyors, compressors, positive displacement pumps, hoists, and extruders. When engineers ask “is the SINAMICS V20 a constant torque VFD,” the answer for these applications is a clear yes.
Variable Torque (Low Overload LO) Mode: For centrifugal pumps, fans, and blowers — where torque demand increases with the square of speed the V20 can be configured in variable torque mode, allowing a higher continuous output current rating for the same frame size. This is where the ECO mode and Hibernation function deliver their greatest energy savings.
The ability to operate as a constant torque VFD or a variable torque VFD from the same hardware platform — simply by selecting the appropriate duty cycle setting is one of the most practical and cost-effective features of the SINAMICS V20 VFD for engineers specifying drives across diverse applications in Pakistan and Italy.
SINAMICS V20 VFD Manual Your Essential Reference
Whether you are commissioning a drive for the first time or troubleshooting an existing installation, the SINAMICS V20 VFD manual is an indispensable technical resource. Siemens provides comprehensive documentation for the V20, and understanding what is covered helps engineers and technicians get the most out of their drives.
What the SINAMICS V20 VFD Manual Covers
The official SINAMICS V20 vfd manual also referred to as the SINAMICS V20 VFD manual PDF in its downloadable digital form is a detailed technical document that includes the following key sections:
- Safety Instructions: Electrical safety, installation clearances, and handling precautions.
- Hardware Description: Dimensional drawings, frame size identification, terminal layouts, and connection diagrams for all nine frame sizes (FSAA through FSE).
- Electrical Installation: Power wiring, motor connection, EMC cable routing, and grounding guidelines.
- Connection Macros (Cn): The SINAMICS V20 VFD manual includes a set of predefined connection macros (Cn000 to Cn015) that map the drive’s digital and analog inputs/outputs to the most common control wiring configurations BOP control, terminal control, USS, Modbus RTU, and more. Selecting the correct connection macro is one of the first steps in commissioning and is clearly explained in the SINAMICS V20 VFD manual.
- Application Macros (AP): Alongside connection macros, the manual documents application macros (AP000 to AP700) that pre-configure the drive’s key parameters for specific applications such as pumps, fans, compressors, and conveyors drastically reducing commissioning time.
- Parameter List: A complete reference of all drive parameters, their default values, permissible ranges, access levels, and descriptions. The parameter list is the core of the SINAMICS V20 VFD manual and is used by engineers for both initial setup and fine-tuning.
- Fault Codes and Alarms: A comprehensive troubleshooting section listing all fault codes (e.g., F0001 overcurrent, F0003 undervoltage) and alarm messages, along with their causes and corrective actions. This section of the SINAMICS V20 VFD manual is invaluable when diagnosing field issues.
- Communication Setup: Step-by-step guidance for configuring USS protocol and Modbus RTU communication, including baud rate settings, node addressing, and telegram structures relevant for SIMATIC S7-1200 and S7-1500 PLC integration.
- BOP Operation: How to navigate menus, set parameters, and monitor drive status using the Basic Operator Panel directly on the drive.
- Smart Access Module (SAM) Setup: Instructions for Wi-Fi commissioning using the optional Smart Access Module a feature not found in generic VFD manuals.
Key Features of the SINAMICS V20 VFD
Here is what makes the SINAMICS VFD V20 a top choice for factories in Pakistan and industrial projects in Italy:
1. Ultra-Compact Design
The SINAMICS V20 is Siemens’ smallest converter in its class. The FSAA and FSAB frame sizes for single-phase 230V operation measure just 68 mm wide and 142 mm tall perfect for panel installations where space is limited.
2. Fast and Easy Commissioning
The built-in Basic Operator Panel (BOP) allows engineers to commission the drive directly on-site without a laptop or software. Application macros and connection macros come pre-installed, reducing setup time dramatically. For wireless commissioning, the optional SINAMICS V20 VFD Smart Access Module creates a Wi-Fi hotspot, enabling drive configuration via smartphone, tablet, or laptop a significant advantage in busy factory environments in Pakistan and Italy alike.
3. Wide Voltage Range & Robustness
The SINAMICS V20 vfd operates on both single-phase 230V AC and three-phase 380–480V AC supplies, making it compatible with the industrial power infrastructure of both Pakistan and Italy. Its coated PCBs and electronic components, advanced cooling design, and wide operating temperature range (-10°C to +60°C) give it exceptional durability in demanding environments.
4. Energy-Saving ECO Mode
The drive features a built-in ECO mode (V/f and V²/f) that automatically reduces energy consumption during partial load operation. The Hibernation Mode shuts down the drive during idle states and restarts it automatically when demand returns ideal for pump and fan applications to reduce electricity bills.
5. Keep Running Mode
Pakistan’s industrial power supply can be unstable. The SINAMICS V20 VFD‘s Keep Running Mode automatically adapts to line fluctuations, compensating internally and acknowledging error messages autonomously keeping your production line running even during voltage disturbances.
6. Integrated Braking Unit
Frame sizes FSD and FSE (7.5 kW to 30 kW) come with an integrated braking chopper, eliminating the need for an external braking module and saving cost and panel space.
7. USS and Modbus RTU Communication
The SINAMICS V20 VFD supports USS protocol and Modbus RTU at its terminals, enabling seamless integration with Siemens SIMATIC PLCs and other control systems via the TIA Portal.
8. Parameter Cloning Without Power
Using the optional Parameter Loader with SD card, engineers can save, transfer, and load drive parameters without powering the unit — a major time saver when setting up multiple identical drives across a production line.
SINAMICS V20 VFD Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SINAMICS V20 Compact Frequency Converter |
| Power Range | 0.12 kW to 30 kW (0.16 HP to 40 HP) |
| Frame Sizes | 9 sizes: FSAA, FSAB, FSA, FSB, FSC, FSD, FSE |
| Input Voltage (Single Phase) | 1AC 200V – 240V ±10% |
| Input Voltage (Three Phase) | 3AC 380V – 480V +10% / -15% |
| Output Frequency | 0 – 550 Hz |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Protection Degree | IP20 (standard) / IP55 (optional enclosure) |
| Overload Capacity (HO) | 150% for 60 seconds, 200% for 3 seconds |
| Braking Chopper | Integrated from frame size FSD (7.5 kW) onwards |
| Communication Protocol | USS, Modbus RTU (at terminals) |
| Mounting | Wall mount, Push-through mount, DIN rail (FSAA/FSAB) |
| Digital Inputs | 3 (standard) |
| Analog Inputs | 1 x 0–10V / 0–20mA |
| Relay Outputs | 1 standard |
| Energy Functions | ECO mode (V/f, V²/f), Hibernation mode, Energy monitoring |
| Standards & Certifications | CE, UL, cUL, IEC 61800-3 EMC |
| Ambient Humidity | Up to 95% RH (non-condensing) |
| Part Number Series | 6SL3210-XXXXX (e.g., 6SL3210-5BB17-5UV1) |
SINAMICS V20 VFD Frame Sizes & Power Range
The SINAMICS VFD V20 is available in nine frame sizes, each designed for a specific power and voltage range. Choosing the correct frame size is critical for correct drive sizing in your application.
| Frame Size | Voltage | Power Range | Key Feature |
|---|---|---|---|
| FSAA | 1AC 230V | 0.12 – 0.37 kW | Siemens’ smallest converter — 68mm wide |
| FSAB | 1AC 230V | 0.55 – 1.5 kW | DIN rail mountable, ultra-compact |
| FSA | 3AC 400V | 0.37 – 1.5 kW | Side-by-side mounting possible |
| FSB | 3AC 400V | 2.2 – 4.0 kW | Standard wall mount |
| FSC | 3AC 400V | 5.5 – 7.5 kW | Push-through mounting available |
| FSD | 3AC 400V | 7.5 – 15 kW | Integrated braking chopper |
| FSE | 3AC 400V | 18.5 – 30 kW | HO + LO duty cycle, integrated braking |
For factories operating on a 3AC 380–415V supply (standard in Pakistan) or 3AC 400V (standard in Italy and across Europe), the FSA through FSE frame sizes are directly applicable without any modification. Techno Control Corporation can help you select the correct frame size and part number based on your motor nameplate data, wherever you are located.
Applications of SINAMICS V20 VFD in Pakistan & Italy
The SINAMICS V20 VFD is widely used across the following industries and applications in both Pakistan and Italy:
Pumps and Water Systems
One of the most common uses of the SINAMICS V20 VFD in Pakistan is pump speed control — particularly in water treatment plants, HVAC systems, boiler feed pumps, and process water circulation. The Hibernation Mode and ECO function make it highly energy-efficient for variable-speed pump duty. As a constant torque VFD, it equally serves positive displacement pump applications that demand consistent torque throughout operation.
Fans and HVAC
The V20 is ideal for industrial fans, blowers, and HVAC ventilation systems. Variable speed control of fans using a VFD can reduce electricity consumption by up to 50% compared to fixed-speed operation a major advantage given Pakistan’s high energy costs.
Italian Industrial Projects (Turin & Beyond)
From Techno Control Corporation’s Turin, Italy office, the Siemens VFD SINAMICS V20 is supplied to Italian OEMs, machine builders, and industrial facilities across northern Italy. Italy’s manufacturing heartland including the automotive, food processing, packaging, and mechanical engineering sectors in Piedmont, Lombardy, and Veneto relies on compact, reliable drives like the SINAMICS V20 VFD for machine integration, conveyor control, and process automation.
Textile Industry Pakistan
Pakistan’s textile sector extensively uses VFDs for spinning machines, braiding machines, winders, and conveyor drives. The SINAMICS V20 VFD‘s robustness, coated PCBs, and wide temperature tolerance make it well suited to the demanding conditions inside textile mills. Its constant torque capability is particularly valuable for winder and braiding machine applications where torque consistency is critical.

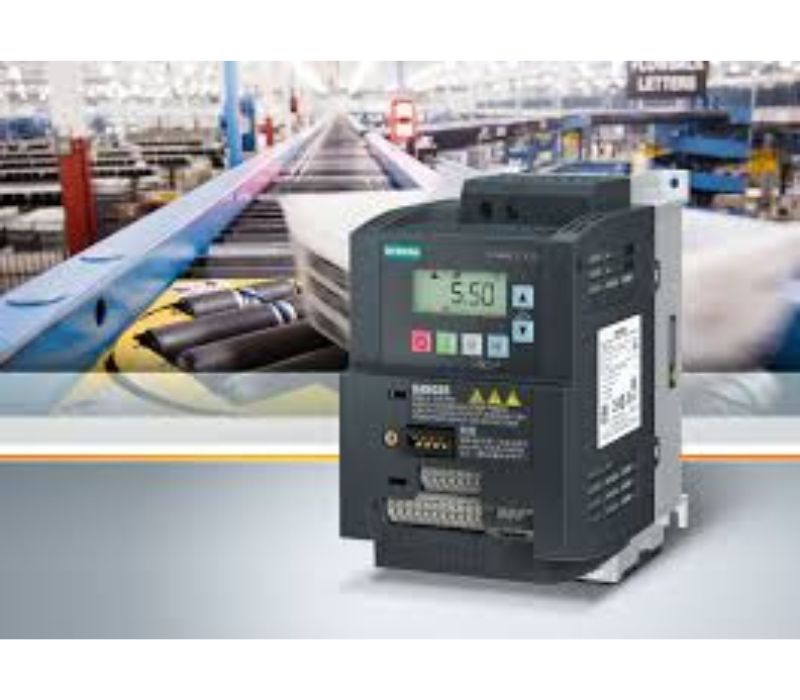

Conveyors and Material Handling
In logistics, cement, food processing, and steel industries, the SINAMICS VFD V20 controls conveyor belt speed with precise ramp-up and ramp-down, reducing mechanical wear and improving process control. Conveyors are a classic constant torque load, and the V20’s HO duty rating makes it well suited for this application.
Cement and Heavy Industry
Cement factories in Pakistan rely on drives like the SINAMICS V20 VFD for crusher drives, cooler fans, and kiln inlet fans where compact, reliable drives are required.
Food, Beverage & Pharmaceutical
For multinational factories operating in Pakistan, the SINAMICS V20 VFD is used in mixer drives, conveyor control, and packaging machines applications that demand precise speed control and hygienic reliability.
Compressors
Industrial air compressors and process gas compressors benefit from SINAMICS V20 VFD based speed control. Compressors are inherently constant torque loads, and the V20’s HO overload rating of 150% for 60 seconds makes it the right constant torque VFD for compressor soft starting and speed regulation.
SINAMICS V20 VFD Accessories & Options
| Accessory | Function |
|---|---|
| SINAMICS V20 Smart Access Module | Wi-Fi web server — commission and operate via smartphone or tablet |
| Basic Operator Panel (BOP) | Local display and keypad for parameter setting and monitoring |
| BOP Interface Module | Enables remote mounting of the BOP panel |
| Parameter Loader + SD Card | Save and clone drive parameters without power supply |
| I/O Expansion Module (400V) | Adds 2 digital inputs and 2 relay outputs |
| Line Filter (C1/C2/C3) | EMC compliance for residential or industrial environments |
| Line Reactor | Reduces voltage peaks and harmonic currents |
| Braking Resistor + Braking Module | Dynamic braking for frame sizes FSAA to FSC |
| Output Reactor | Reduces voltage stress on motor for long cable runs |
| Shield Connection Kit | Proper EMC cable shielding and strain relief |
SINAMICS V20 VFD + SIMATIC: A Complete Automation Solution
A major advantage of the SINAMICS V20 VFD is its seamless integration with Siemens SIMATIC S7-1200 and S7-1500 PLCs through the TIA Portal. This combination gives Pakistani factories a fully integrated, single-brand automation solution drives, PLCs, and HMIs from one trusted supplier.
Application examples for speed control via USS protocol and Modbus RTU including constant torque conveyor control and variable torque pump/fan applications can be downloaded free of charge from the Siemens Industry Online Support portal and deployed directly in your factory’s TIA Portal project. These examples complement the SINAMICS V20 VFD manual PDF as practical, ready to use programming references.
Why Choose SINAMICS V20 VFD Over Other VFDs in Pakistan?
| Feature | SINAMICS V20 VFD | Generic VFDs |
|---|---|---|
| Brand Reliability | Global Siemens quality, 175+ years | Varies |
| Commissioning Time | Very fast — built-in macros, Smart Access Wi-Fi | Often complex |
| Coated PCBs | Yes — ideal for dust/humidity | Rarely |
| Keep Running Mode | Yes — handles unstable Pakistani power supply | Rarely |
| Constant Torque (HO) Support | Yes — 150% / 60s, 200% / 3s | Often limited |
| PLC Integration | Native SIMATIC S7 via TIA Portal | Extra engineering needed |
| Energy Saving Functions | ECO mode, Hibernation, Energy monitoring | Basic or none |
| Manual & Documentation | Comprehensive Siemens SINAMICS V20 VFD manual PDF available free | Often limited |
| Resale & Support | Strong global and local support | Limited |
| Spare Parts Availability | Available through authorized suppliers in Pakistan | Uncertain |
SINAMICS V20 VFD Price in Pakistan & Italy
The SINAMICS V20 VFD price varies depending on the frame size, power rating, voltage variant, and whether an integrated filter is included. This applies whether you are purchasing from our Pakistan or Italy office:
- Smaller frame sizes (FSAA/FSAB — 0.12 to 0.55 kW) are the most affordable entry points.
- Mid-range frame sizes (FSA to FSC — 0.37 to 7.5 kW) cover the most common pump, fan, and constant torque conveyor applications.
- Larger frame sizes (FSD/FSE — 7.5 to 30 kW) are used for heavier industrial loads and carry a higher price.
Get a price quote for SINAMICS V20 VFD Pakistan or Italy.
Request a Quote → Contact Techno Control Corporation
Conclusion:
SINAMICS V20 VFD The Smart VFD Choice for Industries in Pakistan & Italy
The SINAMICS V20 VFD is a compact, cost-effective, and remarkably reliable frequency inverter that has earned its place as one of the most trusted motor drives in industrial sectors across Pakistan and Italy. Its combination of quick commissioning, robust construction, constant torque and variable torque duty cycle support, energy-saving features, wide voltage compatibility, and native SIMATIC PLC integration makes it an outstanding choice for engineers and factory managers from Lahore to Turin.
The comprehensive SINAMICS V20 VFD manual freely available as a SINAMICS V20 VFD manual PDF from the Siemens SIOS portal ensures that engineers always have authoritative technical guidance at hand for installation commissioning parameter setting, and troubleshooting of the Siemens V20 vfd across any application.
Whether you need a single SINAMICS VFD V20 for a pump replacement or a bulk order for a greenfield factory project Techno Control Corporation with physical offices in Lahore, Pakistan and Turin, Italy is ready to assist with selection, pricing, and technical support from either location.
Ready to order the SINAMICS V20 VFD? We serve Pakistan & Italy.
