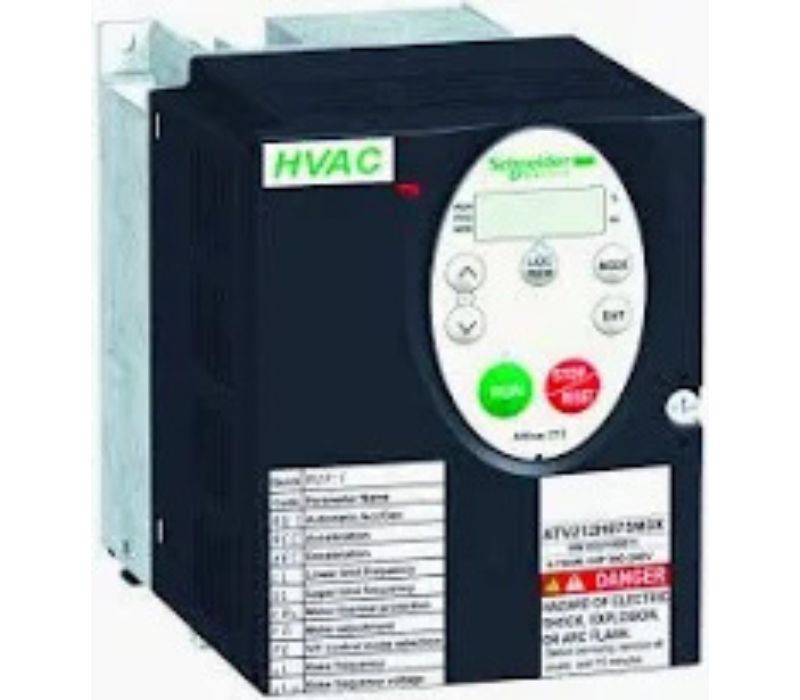

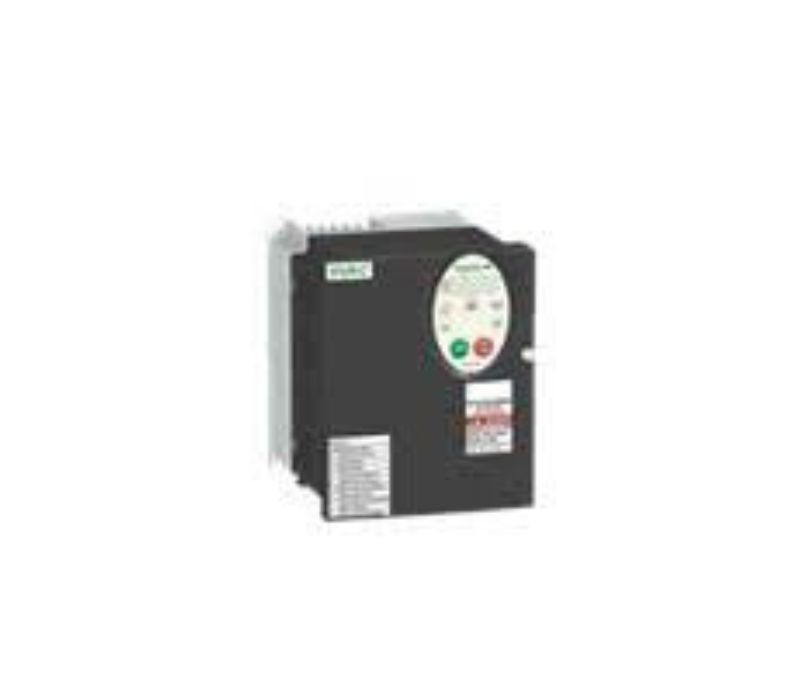

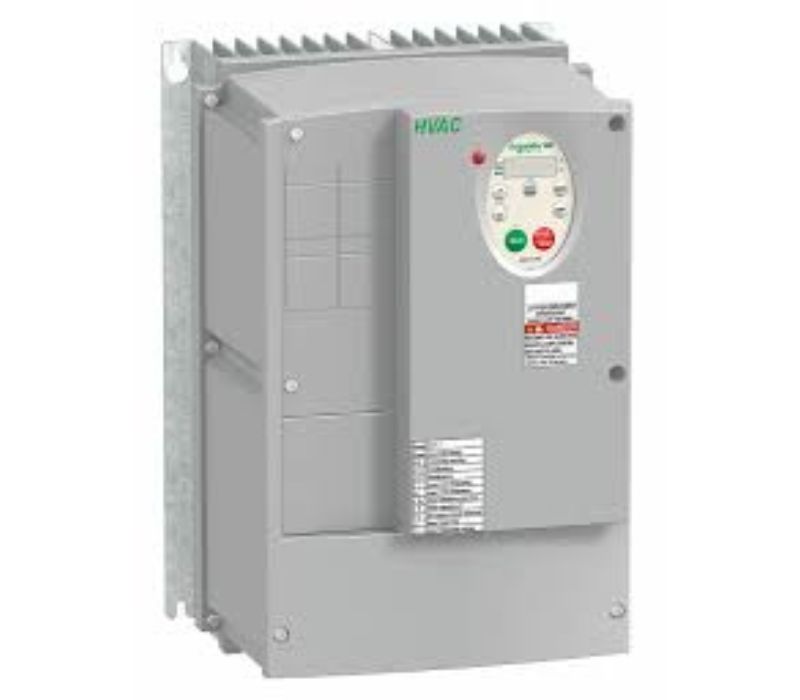

Schneider Inverter Altivar 212  Reliable HVAC VFD for Energy Saving Motor Control

The Schneider inverter Altivar 212 is a powerful and efficient variable frequency drive designed for modern HVAC and fluid management applications. Also known as the Altivar 212 VFD, this drive is widely used for controlling 3-phase asynchronous motors in pumps, fans, ventilation systems, heating units, air conditioning systems, and building automation projects.

For industries, commercial buildings, hospitals, hotels, shopping malls, and water pumping systems, the Altivar 212 provides a smart solution for reducing energy consumption, improving motor performance, and achieving smooth speed control. Schneider Electric designed this inverter especially for the tertiary building sector, where HVAC efficiency and reliable motor operation are essential.

If you are looking for a professional VFD for energy-saving applications, the Schneider VFD Altivar 212 is one of the most practical choices. It combines easy installation, flexible communication options, built-in protection features, and strong compatibility with building management systems.

What Is Schneider Electric Altivar 212?

The Altivar 212 is a variable speed drive from Schneider Electric developed for controlling motor speed according to real load demand. Instead of running a pump or fan at full speed all the time, the drive adjusts the motor speed based on the system requirement. This helps reduce electricity usage, mechanical stress, noise, and maintenance cost.

The Schneider Electric Inverter Altivar 212 is mainly used in:

Heating systems
Ventilation systems
Air conditioning units
Pumping applications
Water treatment plants
Commercial HVAC systems
Building automation systems
Fan and blower control
Industrial fluid management applications

Because HVAC motors often run for long hours, even a small improvement in efficiency can create significant energy savings. The Altivar 212 is designed with an eco-energy concept and can help achieve energy savings compared to traditional control systems.

Key Features of Schneider Inverter Altivar 212

The Schneider inverter Altivar 212 offers several advanced features that make it suitable for HVAC and pump applications.

1. Energy-Saving Operation

One of the biggest advantages of the Schneider Inverter Altivar 212 is its energy-saving design. In fan and pump applications, motor speed reduction can greatly reduce power consumption. This makes the drive ideal for buildings where HVAC systems operate daily for many hours.

2. Designed for HVAC Applications

The Altivar 212 is not just a general inverter. It is specially developed for HVAC and fluid management applications. It performs well in heating, ventilation, air conditioning, water pumping, and similar systems where stable motor control is required.

3. Communication Compatibility

The Altivar 212 supports commonly used communication protocols in building automation. These include:

Modbus
BACnet
METASYS N2
APOGEE FLN P1
Optional LonWorks

This makes the drive easy to integrate with Building Management Systems, also called BMS. For commercial buildings and industrial facilities, this communication flexibility is very important.

4. Integrated EMC Filters

Depending on the model, the Altivar 212 comes with integrated EMC filters. These filters help reduce electromagnetic interference and support cleaner operation in electrical installations.

5. Anti-Harmonic Technology

The Schneider Altivar 212 uses anti-harmonic technology to reduce harmonic distortion. This improves power quality and makes the drive more suitable for sensitive electrical networks.

6. Instant Energy Consumption Viewing

Another useful feature is the ability to view energy consumption. This helps maintenance teams and facility managers monitor performance and understand how much energy is being used by the system.

Schneider VFD Altivar 212 Input Details

The Altivar 212 input depends on the exact model and voltage range. Common ATV212 models are available for 3-phase power supply ranges, including 200–240 V and 380–480 V classes. Before installation, the line voltage must always be checked with the drive nameplate to confirm compatibility.

This step is very important because incorrect input voltage can damage the inverter. The Altivar 212 installation manual PDF clearly explains that users should verify the drive reference, check voltage compatibility, mount the drive correctly, and wire the unit according to electrical safety requirements.

For safe operation, installation and wiring should always be performed by qualified electrical personnel.

Applications of Altivar 212 VFD

The Altivar 212 VFD is commonly used in commercial and industrial environments where speed control is required for pumps and fans. Some common applications include:

HVAC Systems

The drive is widely used in HVAC systems for controlling fans, blowers, and air handling units. By adjusting motor speed based on demand, it improves comfort and reduces energy waste.

Pumping Systems

For water pumping, booster pumps, circulation pumps, and chilled water systems, the Altivar 212 provides smooth motor control and helps prevent unnecessary energy consumption.

Building Automation

Because the drive supports communication protocols such as BACnet and Modbus, it can be connected with building management systems for centralized monitoring and control.

Commercial Buildings

Hotels, hospitals, offices, shopping centers, and airports can use the Schneider Altivar 212 inverter for efficient HVAC motor control.

Industrial Fluid Management

The drive is also suitable for fluid handling systems where stable speed control, protection, and energy efficiency are required.

Altivar 212 Manual and Documentation

For correct installation, programming, and maintenance, users should always refer to the official Altivar 212 manual. Schneider Electric provides different documents for this drive, including the installation manual and programming manual.

The Schneider VFD Altivar 212 manual helps users understand wiring, mounting, safety instructions, technical data, and setup procedures. The Altivar 212 programming manual is used for parameter settings, motor control configuration, input/output settings, communication setup, and application functions.

Important documentation includes:

Altivar 212 manual
Altivar 212 VFD manual
Schneider VFD Altivar 212 manual
Altivar 212 programming manual
Altivar 212 installation manual PDF

If you are installing the drive for the first time, the installation manual should be checked before wiring. If you are setting motor parameters or communication settings, the programming manual should be used.

Why the Altivar 212 Programming Manual Is Important

The Altivar 212 programming manual is very important because every application may require different settings. A pump application may need different acceleration, deceleration, control mode, and protection settings compared to a ventilation fan application.

The programming manual helps with:

Motor parameter setup
Speed reference configuration
Input and output settings
Communication parameter setup
Fault diagnosis
Control mode selection
Energy-saving settings
Application-specific functions

Schneider Inverter Altivar 212 using the correct parameters helps the drive operate safely and efficiently. Wrong parameter settings may cause motor trips, poor performance, overheating, or unexpected system behavior.

Installation Guidelines for Schneider Inverter Altivar 212

Before installing the Schneider inverter Altivar 212, users should follow proper electrical and mechanical installation steps. The drive should be checked for damage after unpacking, and the model reference should match the purchase order.

Basic installation steps include:

Check the drive model and rating
Confirm the input voltage range
Mount the drive vertically
Maintain proper ventilation space
Connect line supply and grounding
Connect motor terminals correctly
Connect control wiring
Use proper protection devices
Refer to the schneider Inverter Altivar 212 installation manual PDF
Program the drive according to the motor and application

The drive must be installed in a suitable environment with correct temperature, ventilation, and protection. Electrical safety is very important because VFDs contain high-voltage components.

Benefits of Schneider Electric Altivar 212

The Schneider Electric Altivar 212 provides many practical benefits for HVAC and pumping systems.

Lower Energy Cost

The main benefit is reduced energy consumption. By controlling motor speed according to actual demand, the drive helps avoid unnecessary full-speed operation.

Better Motor Protection

The drive includes motor control and protection features that help reduce mechanical and electrical stress.

Smooth Operation

Soft starting and controlled acceleration reduce sudden motor shocks, pressure surges, and mechanical wear.

Easy BMS Integration

With built-in communication options such as Modbus and BACnet, the drive can be easily connected to building automation systems.

Reliable HVAC Performance

The Altivar 212 is specifically designed for HVAC applications, making it more suitable for fans and pumps than many basic general-purpose inverters.

Reduced Maintenance

Smooth motor control reduces stress on belts, bearings, pumps, and fans. This can lower maintenance requirements over time.

Schneider Inverter Altivar 212 for Pumps and Fans

Pumps and fans are among the best applications for the Schneider Inverter Altivar 212 because their load demand often changes during operation. A fixed-speed motor runs at full speed even when full output is not required. This wastes energy and increases wear.

With the Altivar 212, the motor speed can be adjusted according to pressure, flow, temperature, or system demand. This makes it ideal for:

Chilled water pumps
Hot water circulation pumps
Cooling tower fans
Exhaust fans
Fresh air fans
Booster pumps
AHU fans
HVAC ventilation systems

Schneider Inverter Altivar 212 for building owners and facility managers, this means better control, lower running cost, and improved system performance.

Schneider Inverter Altivar 212 Technical Highlights

Here are the important technical highlights of the Altivar 212:

Product type: Variable frequency drive / variable speed drive
Brand: Schneider Electric
Series: Altivar 212
Motor type: 3-phase asynchronous motors
Main use: HVAC and fluid management
Applications: Heating, ventilation, air conditioning, pumping
Communication: Modbus, BACnet, METASYS N2, APOGEE FLN P1, optional LonWorks
EMC filters: Integrated, depending on model
Speed range: 1:50
Transient overtorque: 110% for 60 seconds
Certifications: UL, CSA, C-Tick, NOM depending on model
Energy monitoring: Instant viewing of energy consumption

Why Choose Schneider VFD Altivar 212?

The Schneider VFD Altivar 212 is a strong choice for users who need a reliable, energy-saving inverter for HVAC and pump control. It is made by Schneider Electric, a trusted global brand in electrical automation and power management.

This drive is especially useful for customers who want:

A professional HVAC inverter
A reliable pump and fan drive
Easy building automation integration
Lower energy consumption
Better motor control
Access to Schneider documentation and manuals
A drive with communication flexibility
A solution for commercial and industrial buildings

Schneider Inverter Altivar 212 whether you need a replacement drive, a new HVAC control solution, or a VFD for a pumping system, the Altivar 212 is a practical and efficient option.

Conclusion

The Schneider inverter Altivar 212 is a dependable and energy-efficient VFD designed for HVAC, pumping, and fluid management applications. With strong communication support, integrated EMC filters, anti-harmonic technology, and energy monitoring features, it offers excellent value for commercial and industrial users.

For best results, always check the Schneider Inverter Altivar 212 manual, Altivar 212 VFD manual, and Altivar 212 programming manual before installation and configuration. The Altivar 212 installation manual PDF is especially important for wiring, mounting, and safety instructions.

If your project requires reliable motor speed control for pumps, fans, heating, ventilation, or air conditioning, the Schneider Electric Altivar 212 is a professional solution that can improve performance, reduce energy use, and support long-term system efficiency.
