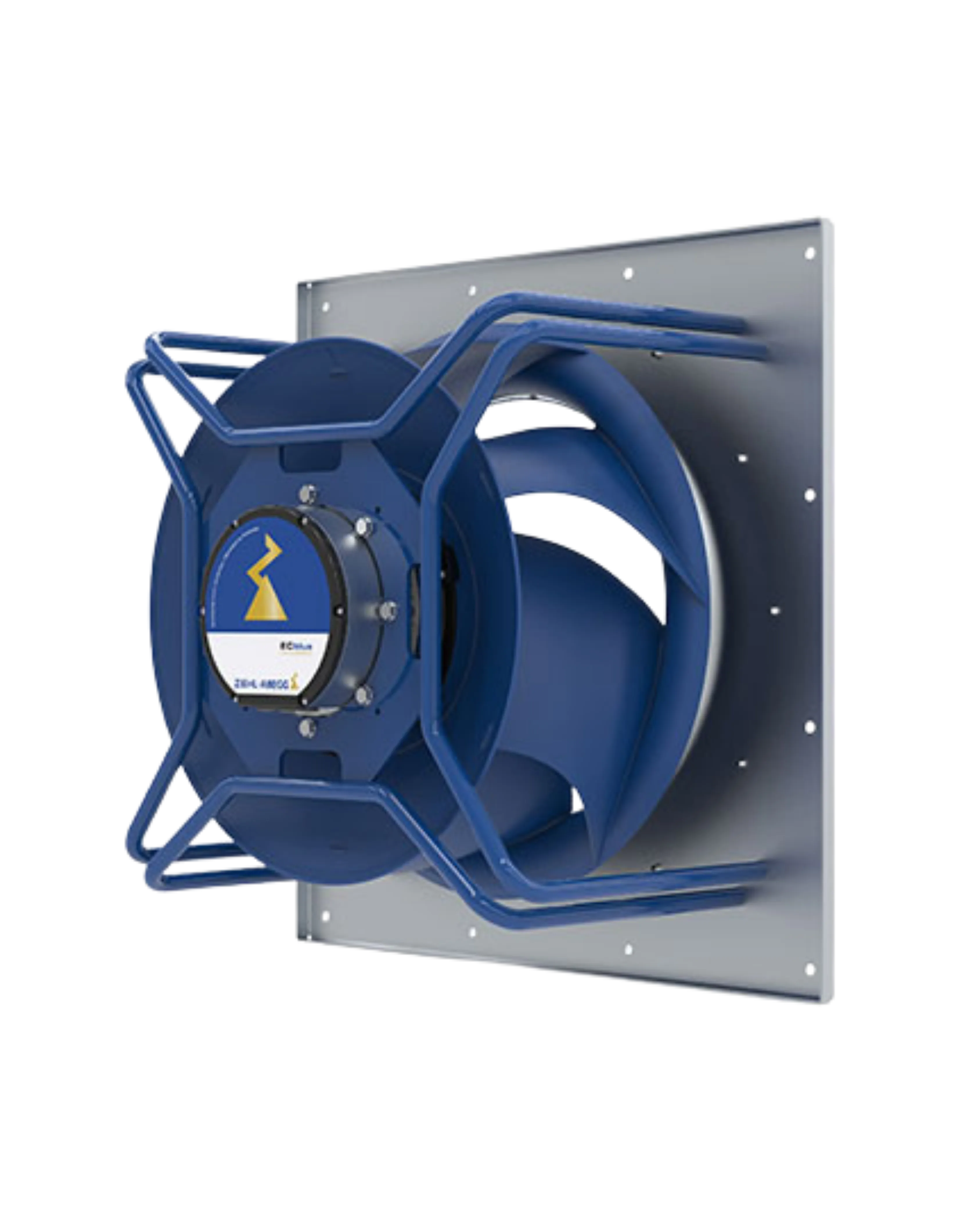

Ziehl-Abegg RH40V-6IK.BF.1R Compact Box Fan

The Ziehl-Abegg RH40V-6IK.BF.1R is a compact box fan with a full bell mouth inlet, built for duct and air handling unit integration, offered with a Basic controller and compatible with the RH..C-ECblue / Vpro-ECblue control range.

It is rated 0.27kW motor input power, 1.45/1.05A current, 1170 min-1 rated speed, runs on 1~200-277V AC at 50/60Hz, carries IP54 protection, and is rated for a maximum conveyor temperature of 60 degrees C with selectable horizontal or vertical motor shaft installation positions.
