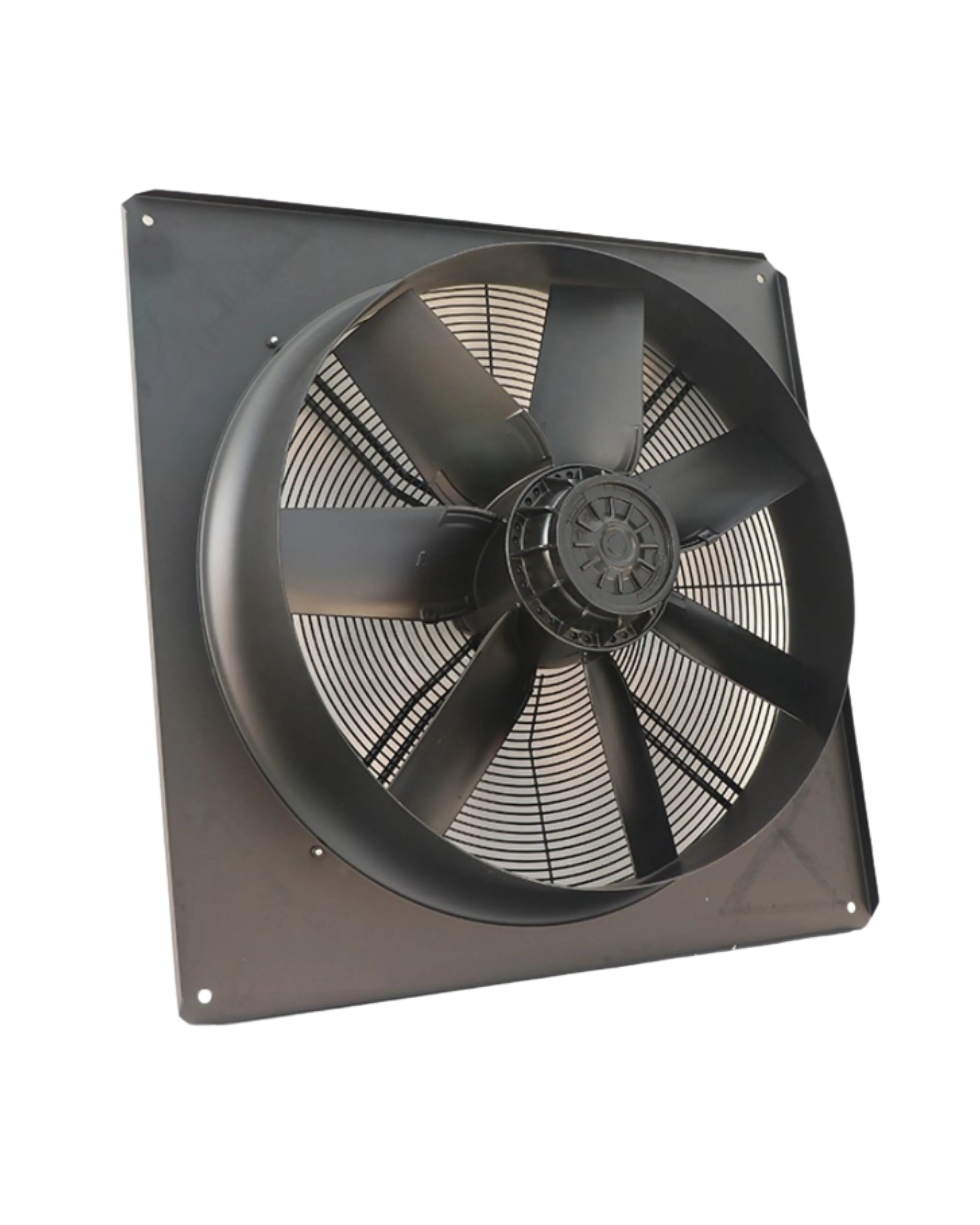

Ziehl-Abegg FC080-6DQ.6N.V7 Axial Fan, Size 800mm

The Ziehl-Abegg FC080-6DQ.6N.V7 is a 6-pole, 3-phase AC axial fan from the FC series, size 800mm, in a Design Q square full bell mouth configuration with 7 aluminium blades, built for industrial air-moving duty.

It is rated 3~230/400V (Delta/Star) +/-10% at 50Hz, 1.40kW motor input power, 4.70/2.70A rated current, 900 min-1 rated speed, carries IP54 protection, thermal class THCL155, a conveyor temperature range of -40 to +60 degrees C, and an ErP 2015 static efficiency of 38.0%.
