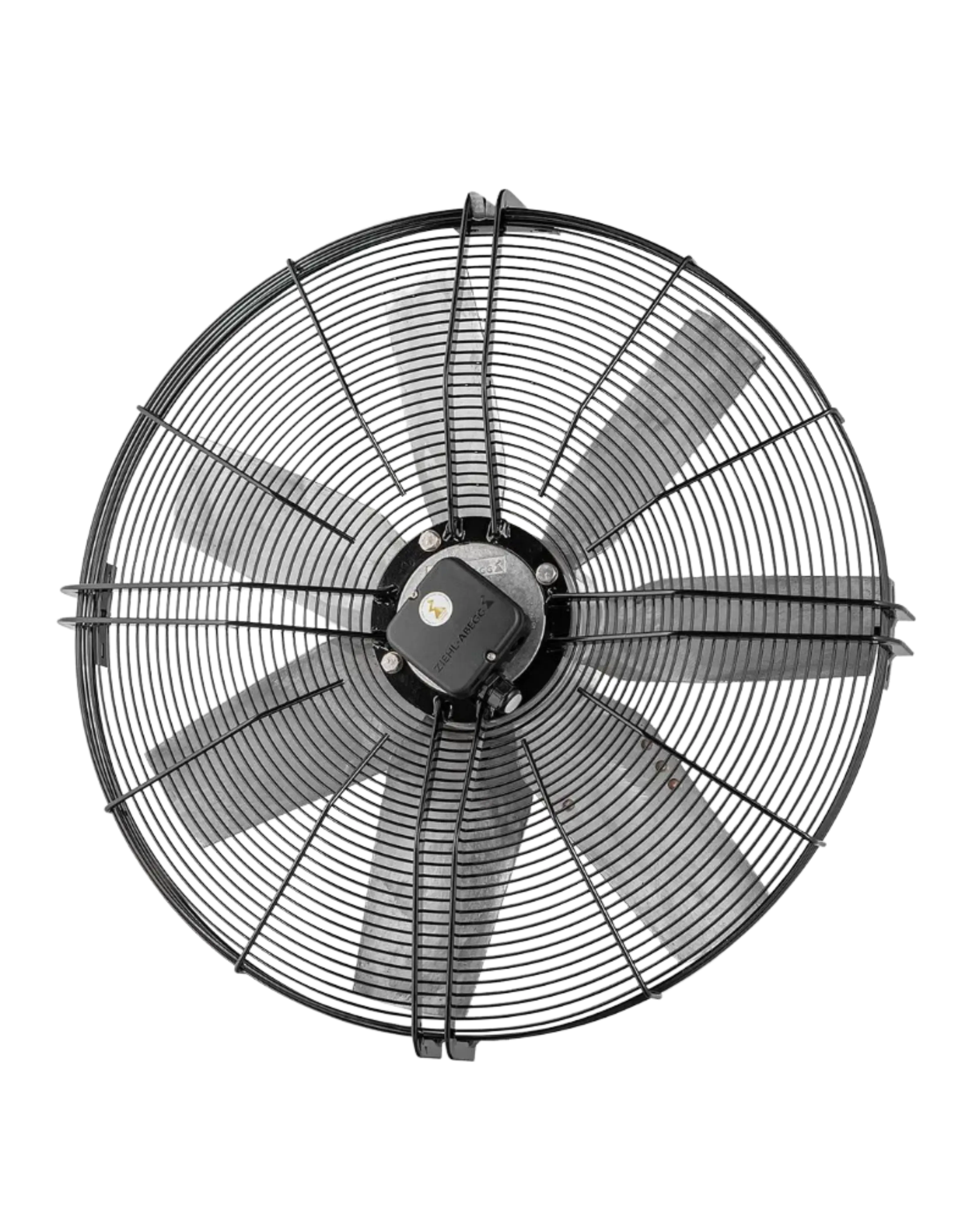

Ziehl-Abegg FC063-6EK.6F.V7 Axial Fan, Size 630mm

The Ziehl-Abegg FC063-6EK.6F.V7 is a 6-pole, single-phase AC axial fan from the FC series, size 630mm, in a Design F flange-ring configuration with a guard grille, built with 7 aluminium blades for single-phase industrial ventilation applications.

It is rated 1~230V +/-10% at 50Hz (60Hz data available), 0.60kW motor input power, 2.70A rated current, 880 min-1 rated speed, uses a 12.0 microfarad service capacitor, requires a frequency inverter for speed control, carries IP54 protection, thermal class THCL155, and a conveyor temperature range of -25 to +70 degrees C.
