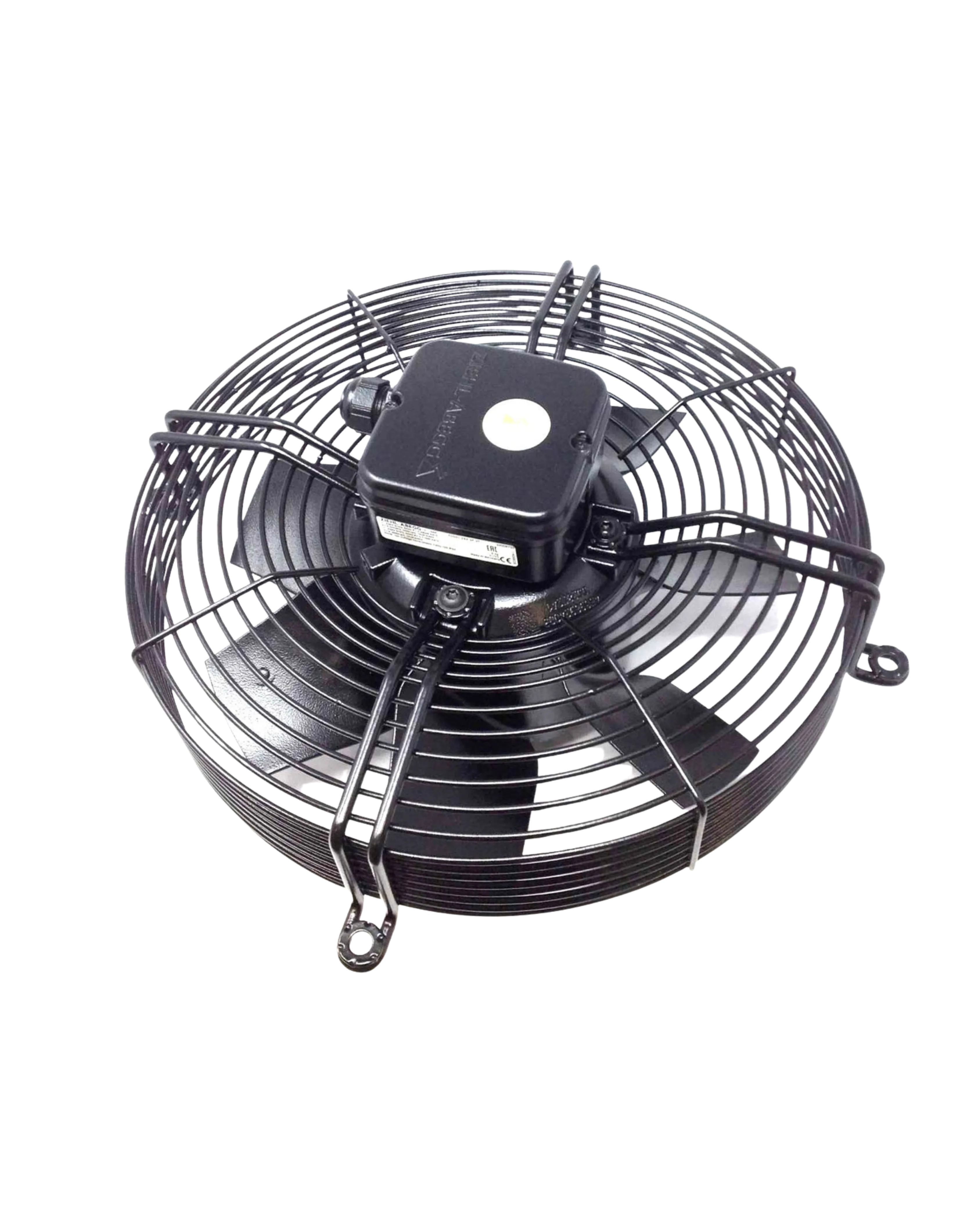

Ziehl-Abegg FN063-SDK.4I.V7P1 Axial Fan with Sickle Blades

The Ziehl-Abegg FN063-SDK.4I.V7P1 is an axial fan with sickle-profile aluminium blades, built for industrial ventilation, condenser and process cooling applications, mounted via a motor-integrated terminal box.

It is rated 3~400V D/Y 50Hz at 0.62/0.44kW (1.25/0.72A, 900/720 min-1), with 60Hz ratings up to 1.00kW at 460V, carries IP54 protection, thermal class THCL155, ball bearings with long-life lubrication, unpainted aluminium rotor and blades, a RAL 9005 powder-coated motor suspension, operates down to -40 degrees C, and weighs 15.40kg.
