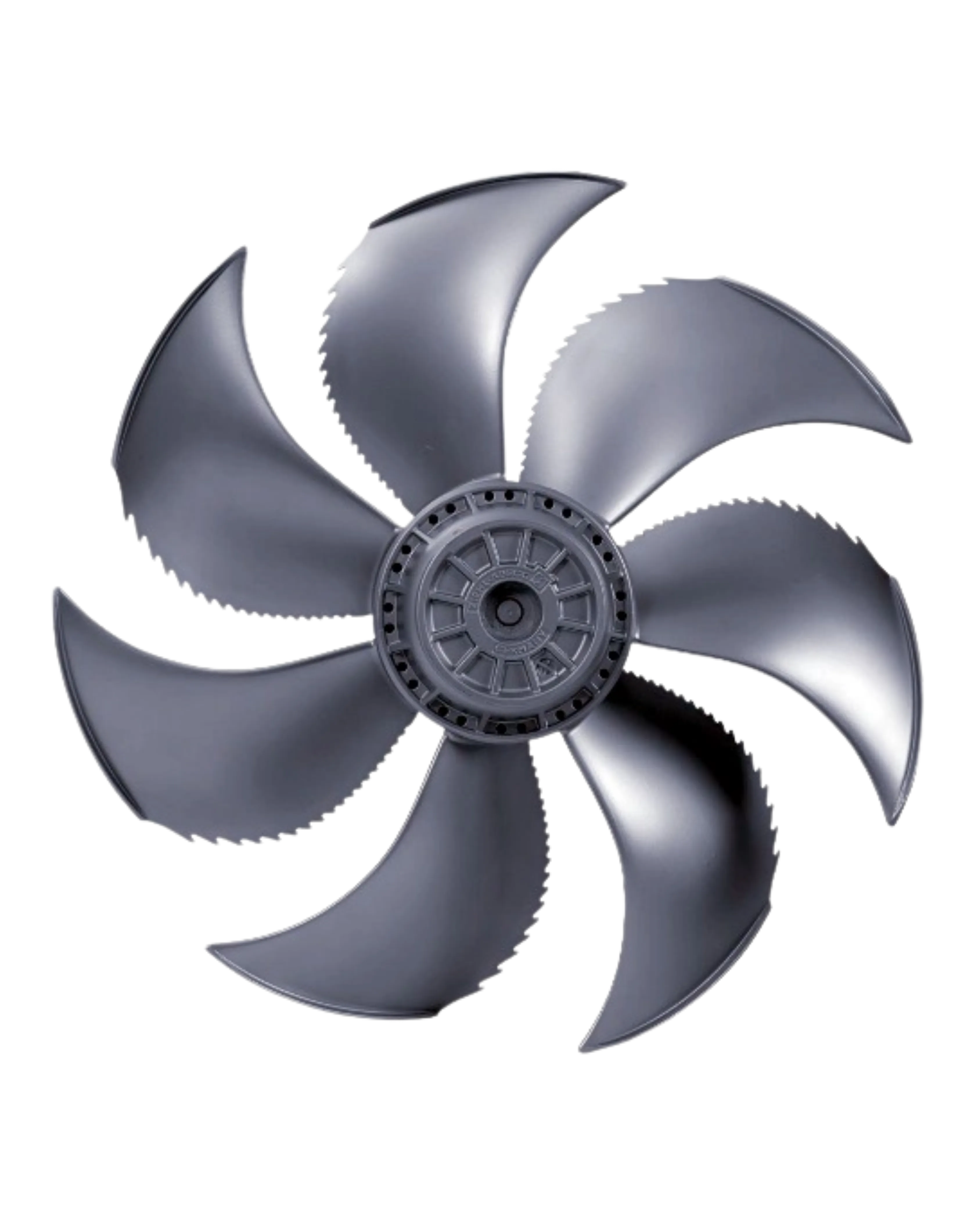

Ziehl-Abegg FN080-SDA.6N.V7P5 Axial Fan, Size 800mm

The Ziehl-Abegg FN080-SDA.6N.V7P5 is a 6-pole, 3-phase AC axial fan from the FE2owlet FN series, size 800mm, in Design A (axial bolted suspension, full bell mouth, no guard grille) configuration for industrial ventilation applications.

It is rated 3~400V +/-10% D/Y at 50Hz, 1.8/1.15kW motor input power (Delta/Star), 3.80/2.20A rated current, 890/690 min-1 rated speed, a starting current ratio of 11/3.7A, 5% current increase, a conveyor temperature rating of 65 degrees C, and weighs 29kg.
