TORK-TMF300E SMS-TORK - Thermal Gas Mass Flow Meter

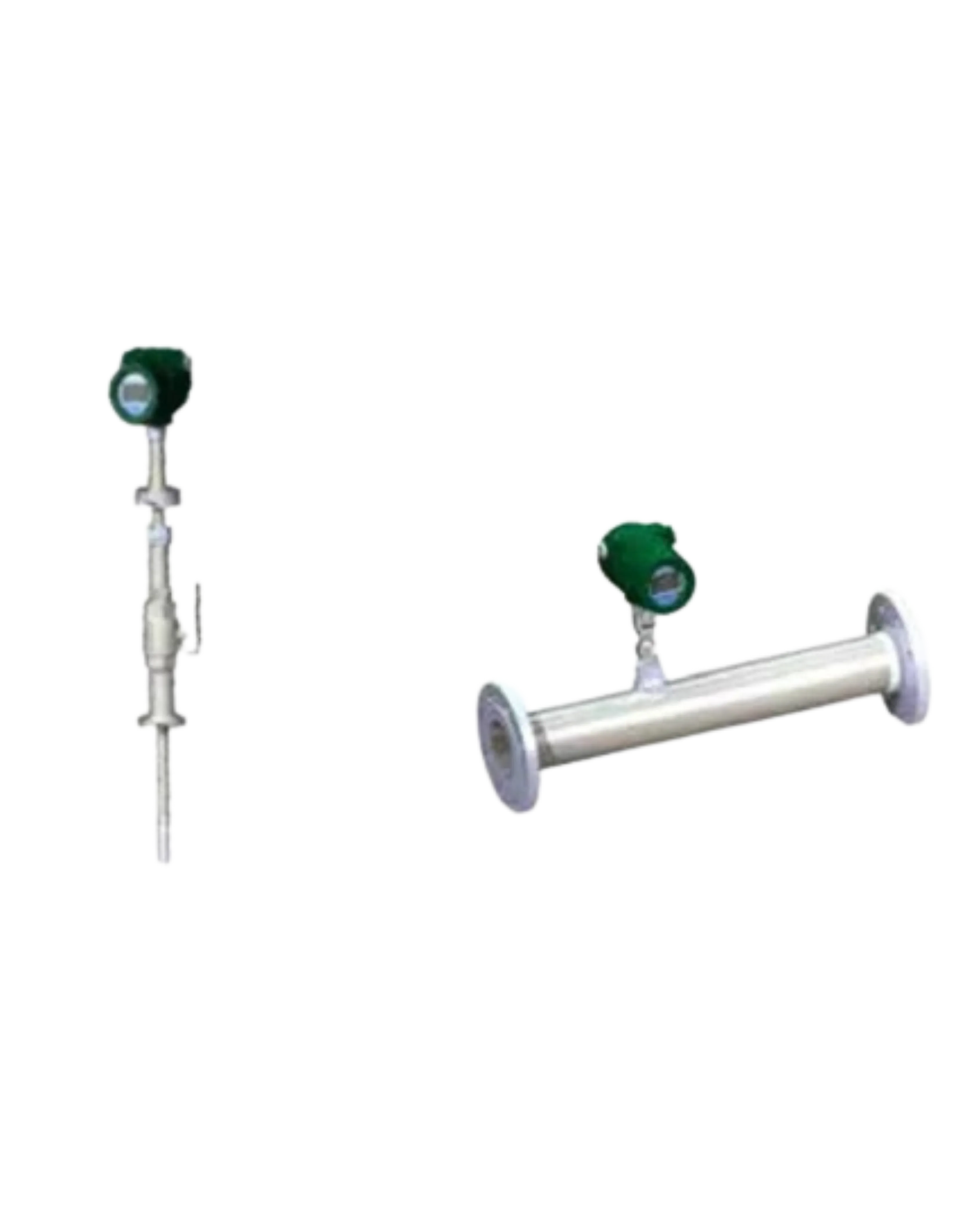

The TORK-TMF300E is an SMS-TORK thermal gas mass flowmeter that measures mass flow directly, without a separate temperature or pressure transmitter, available in inline (DN15 to DN2000) or insertion (DN65 to DN4000) styles and integral or remote mounting.

Covering a velocity range of 0.1 to 120 Nm/s at plus or minus 1.5 percent accuracy, the TMF300E operates standard from -20 to +150 degrees C (-25 to +250 degrees C optional) at working pressures up to 1.6, 2.5 or 4.0 MPa, with a SS316L sensor as standard (Hastelloy optional). It runs on 24 VDC or 220 VAC at under 18 W, outputs 4-20 mA and pulse signals with Modbus RS485 RTU and HART communication, displays mass flow, volume flow, cumulative flow and running time, and is rated IP65 with an ATEX ExdIICT4Gb explosion-protected option for hazardous areas.
