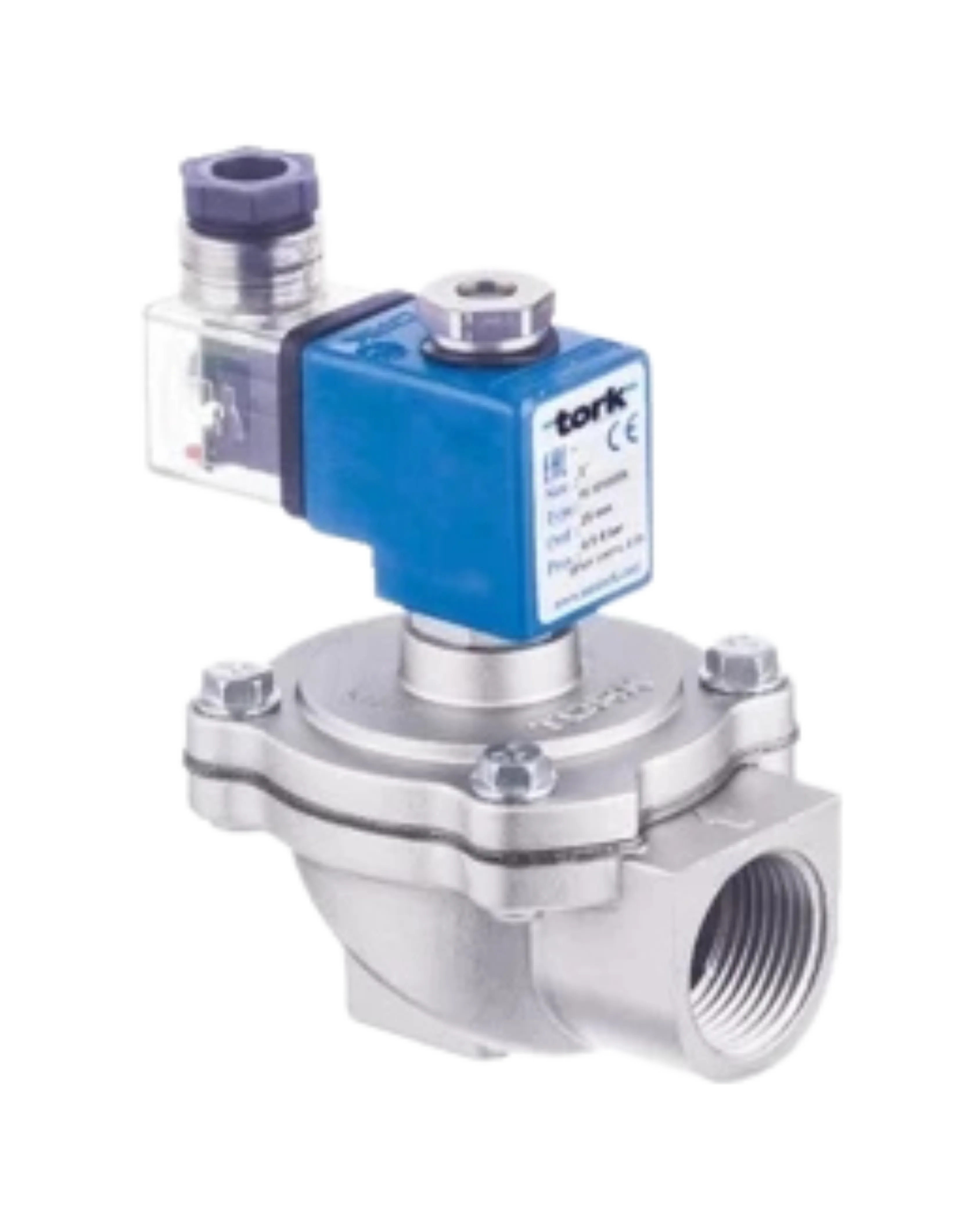

PL1060 Series SMS-TORK - Pulse Valves

The PL1060 Series is an SMS-TORK economy pulse valve for dust collector cleaning duty, built to the same body platform as the PL1010 but simplified to a single NBR sealing option for standard-temperature service.

Covering sizes G3/4 inch to G1 1/2 inch with the same 25 to 44 mm orifice range as the PL1010, the PL1060 runs on a narrower 0.5 to 3 bar operating pressure and -10 to 80 degrees C temperature range, without the Viton or thermoplastic sealing options offered on the wider-range PL1010 and PL1020 valves, making it the straightforward choice for installations that do not need the extended pressure or temperature range. It is rated IP65 as standard (IP68 on request) and weighs from roughly 0.68 to 1.4 kg.
