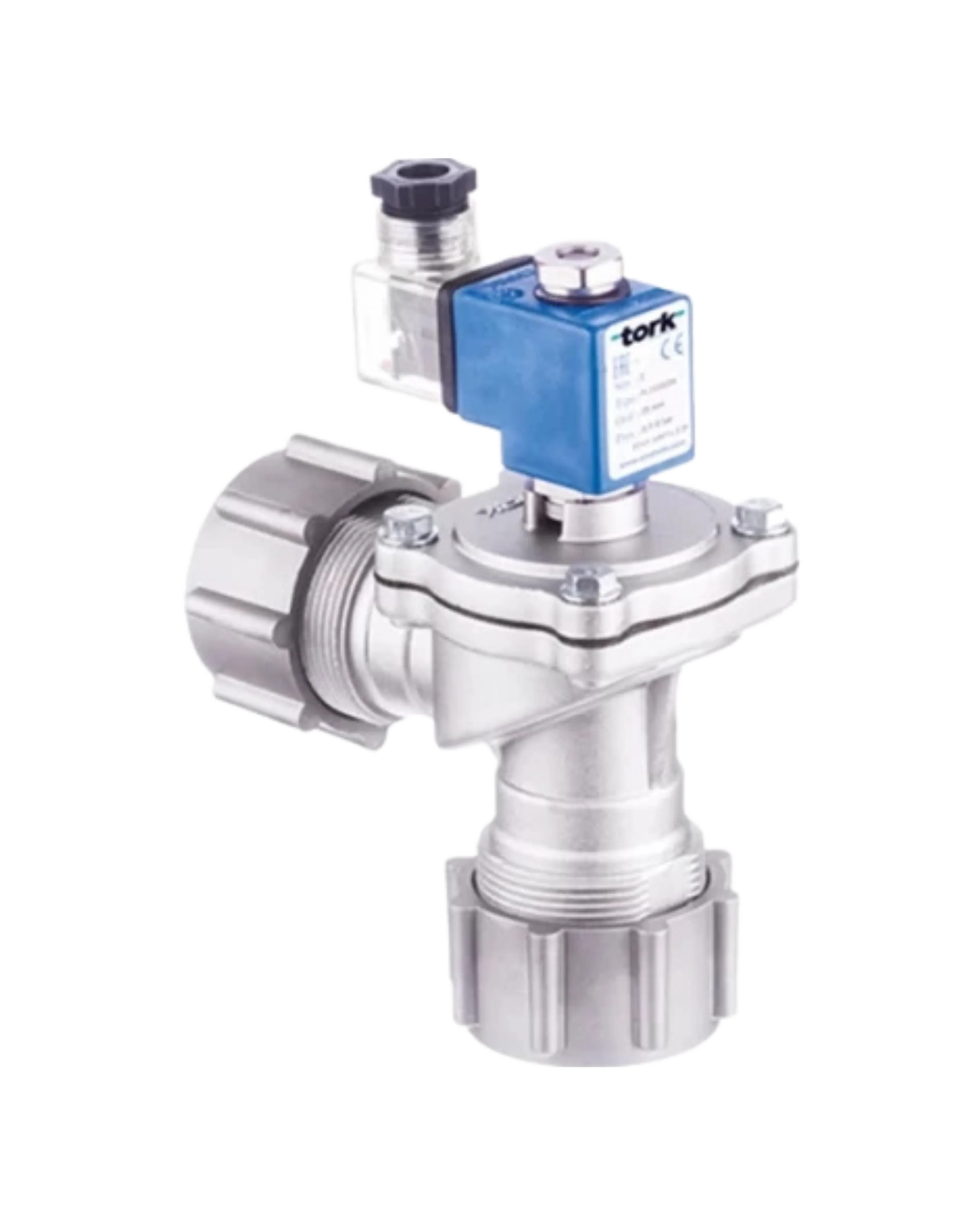

PL1030 Series SMS-TORK - Pulse Solenoid Valves

The PL1030 Series is an SMS-TORK normally closed, pilot-operated 2/2 way pulse solenoid valve with an interchangeable coil, used for dust collector and jet filter cleaning applications.

The coil runs at 100 percent continuous duty with class H (180 degree C) insulation and polyester fibreglass impregnation, connecting through a DIN 43650 / ISO 4400 / EN 175301-803 Form A plug rated IP65 as standard (IP68 on request) and meeting IEC 335 electrical safety. Standard voltages span AC 12, 24, 48, 110 and 230 V or DC 12, 24, 48 and 110 V at plus or minus 10 percent tolerance, 50/60 Hz, with other voltages available on request; LED connector indication is also available. The valve covers sizes G3/4 inch through G1 1/2 inch with an aluminium body and stainless steel and brass internals.
