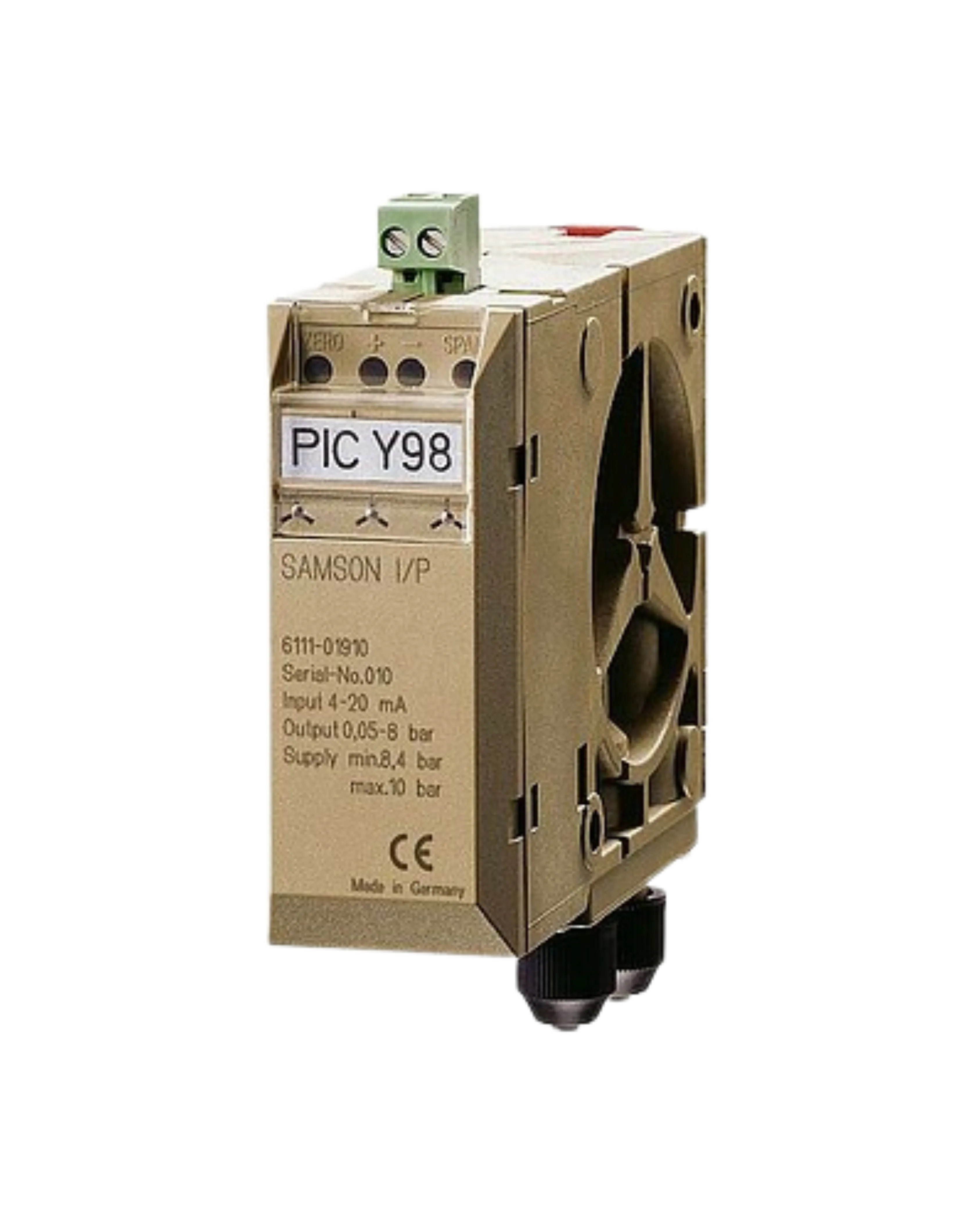

Samson Type 6111 i/p Converter, Rail-Mounting Unit

The Samson Type 6111 i/p Converter converts a load-independent 4 to 20mA DC signal into a proportional pneumatic output signal, acting as the intermediate element between electric measuring or control devices and pneumatic controllers or control valves, in this rail-mounting version with a plastic housing.

It mounts on a 35mm top-hat rail per DIN EN 60714, reaches a maximum output pressure of 8 bar, operates without needing an upstream pressure regulator, accepts standard hose connections (4mm ID / 6mm OD) or optional 1/8 NPT, G1/8 or M5 threads, and terminates electrically via a plug-in two-pole terminal for 0.5 to 2.5 square mm wires.
