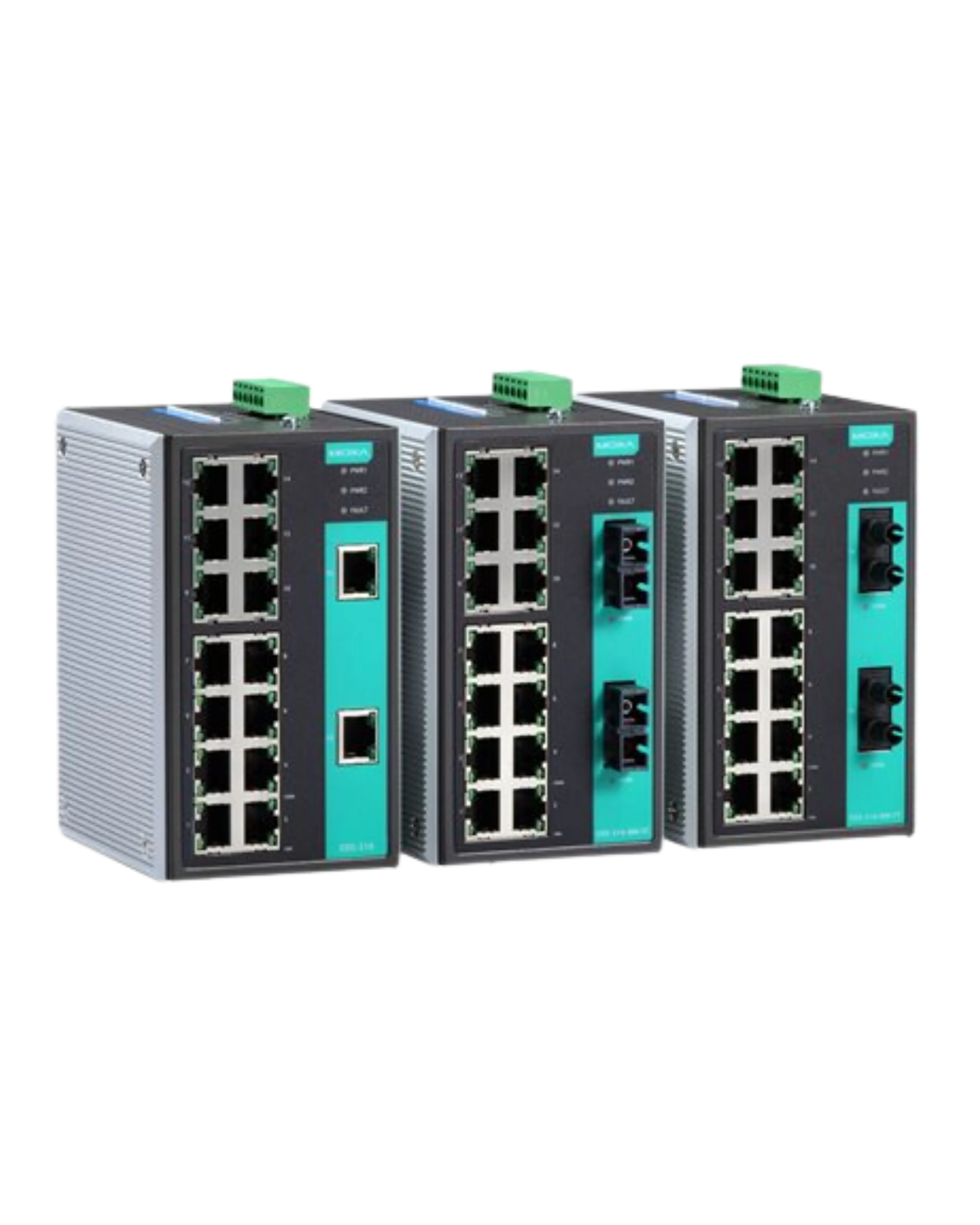

Moxa EDS-316-MM-SC 16-Port Unmanaged Ethernet Switch

The Moxa EDS-316-MM-SC is a 16-port unmanaged industrial Ethernet switch (14 copper plus 2 multi-mode 100BaseFX SC fiber ports) with a built-in relay warning output that alerts on power failure or port break, designed for harsh industrial environments including Class I Div 2 and ATEX Zone 2 hazardous locations.

It supports a typical fiber distance of 4km over multi-mode (OM1), redundant 12/24/48V DC power inputs (9.6 to 60V DC) via a removable 6-contact terminal block with reverse polarity and overload protection, DIP-switch broadcast storm protection, and DIN-rail or distribution-box mounting in a standard (-10 to 60C) or wide (-40 to 75C, -T) temperature range.
