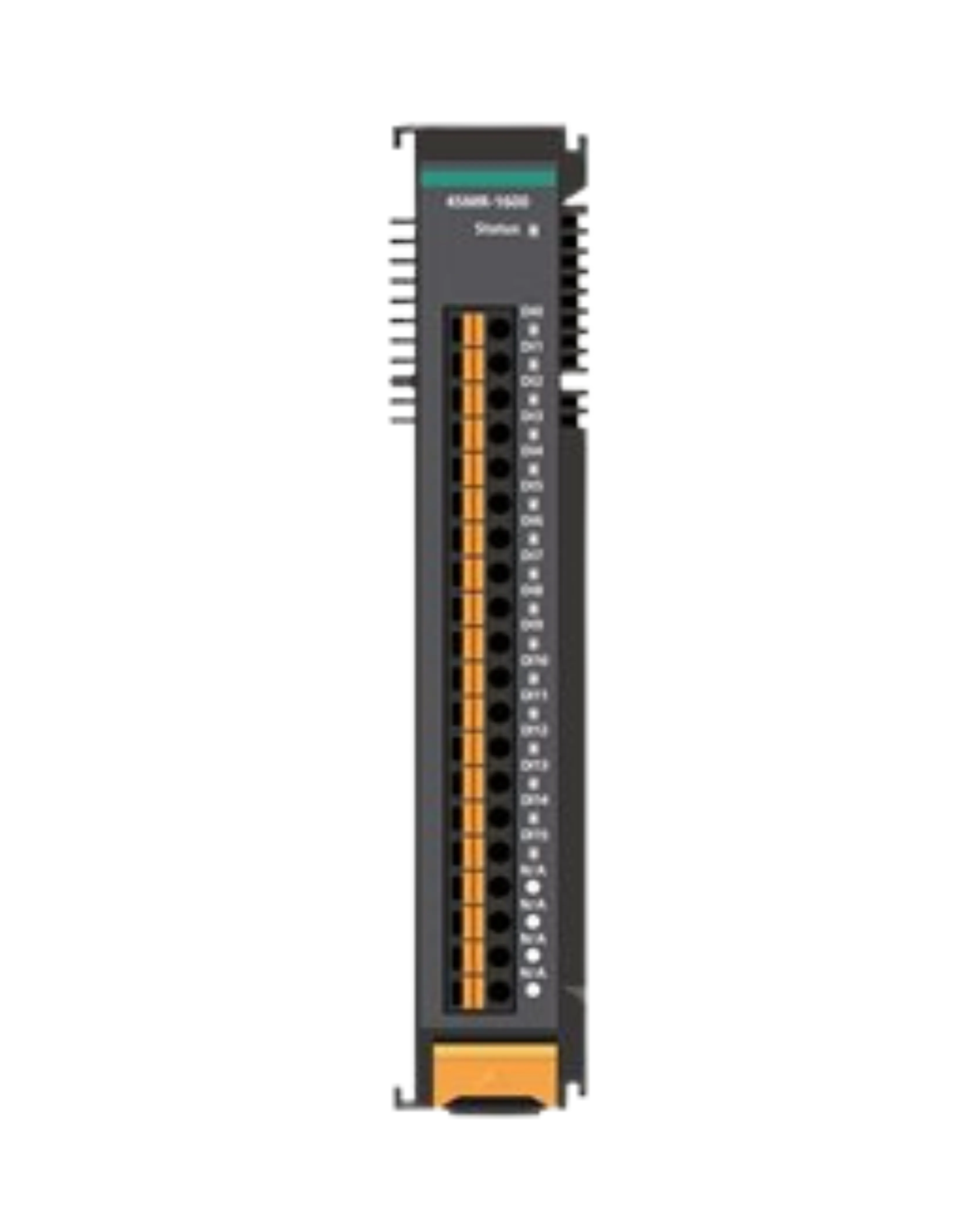

Moxa 45MR-1600 ioThinx 4500 16-Channel Digital Input Module

The Moxa 45MR-1600 is a 16-channel digital input module from the ioThinx 4500 Series, a modular remote I/O system built for tool-free installation and removal on a DIN rail, with built-in LED indicators for every I/O channel.

It accepts dry contact or wet contact (NPN/PNP) sensor inputs through spring-type Euroblock terminals, supports DI or event counter mode (1kHz counter frequency, first 4 channels) with software-configurable digital filtering, offers 3kVDC/2kVrms isolation, and operates across a wide -40 to 75 degrees C range with Class I Division 2 and ATEX Zone 2 certifications.
