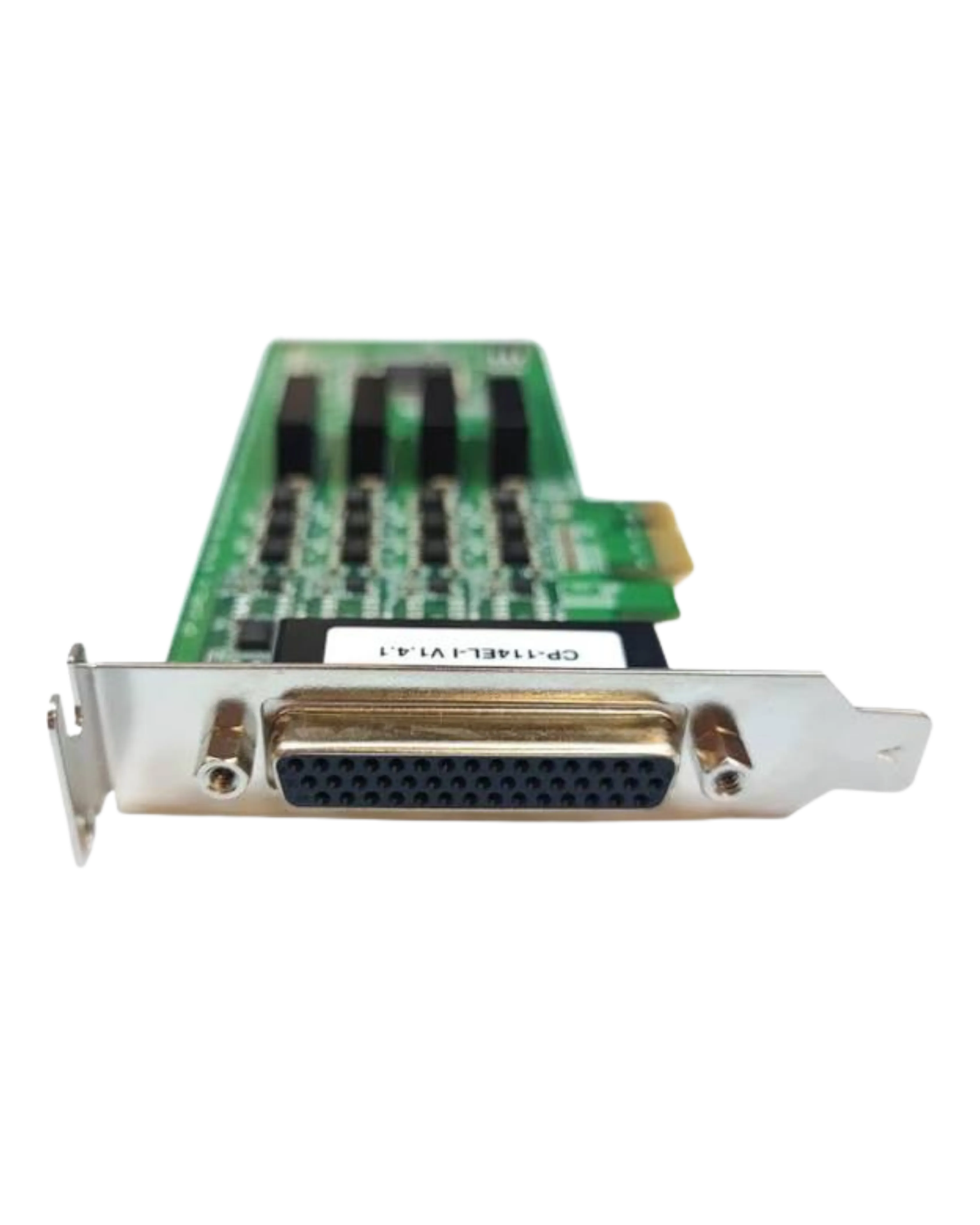

Moxa CP-114EL-DB9M 4-Port Serial PCI Express Board

The Moxa CP-114EL-DB9M is a 4-port RS-232/422/485 PCI Express board designed for POS, ATM and industrial automation applications, built as a low-profile card that fits any PCI Express x1 slot including small-sized PCs.

It supports a maximum baudrate of 921.6kbps with a 128-byte FIFO and on-chip hardware/software flow control, draws 835mA at 3.3V DC, includes built-in Tx/Rx LEDs per port, ships with drivers for Windows, Linux and UNIX, and carries an MTBF rating of 2,347,197 hours.
