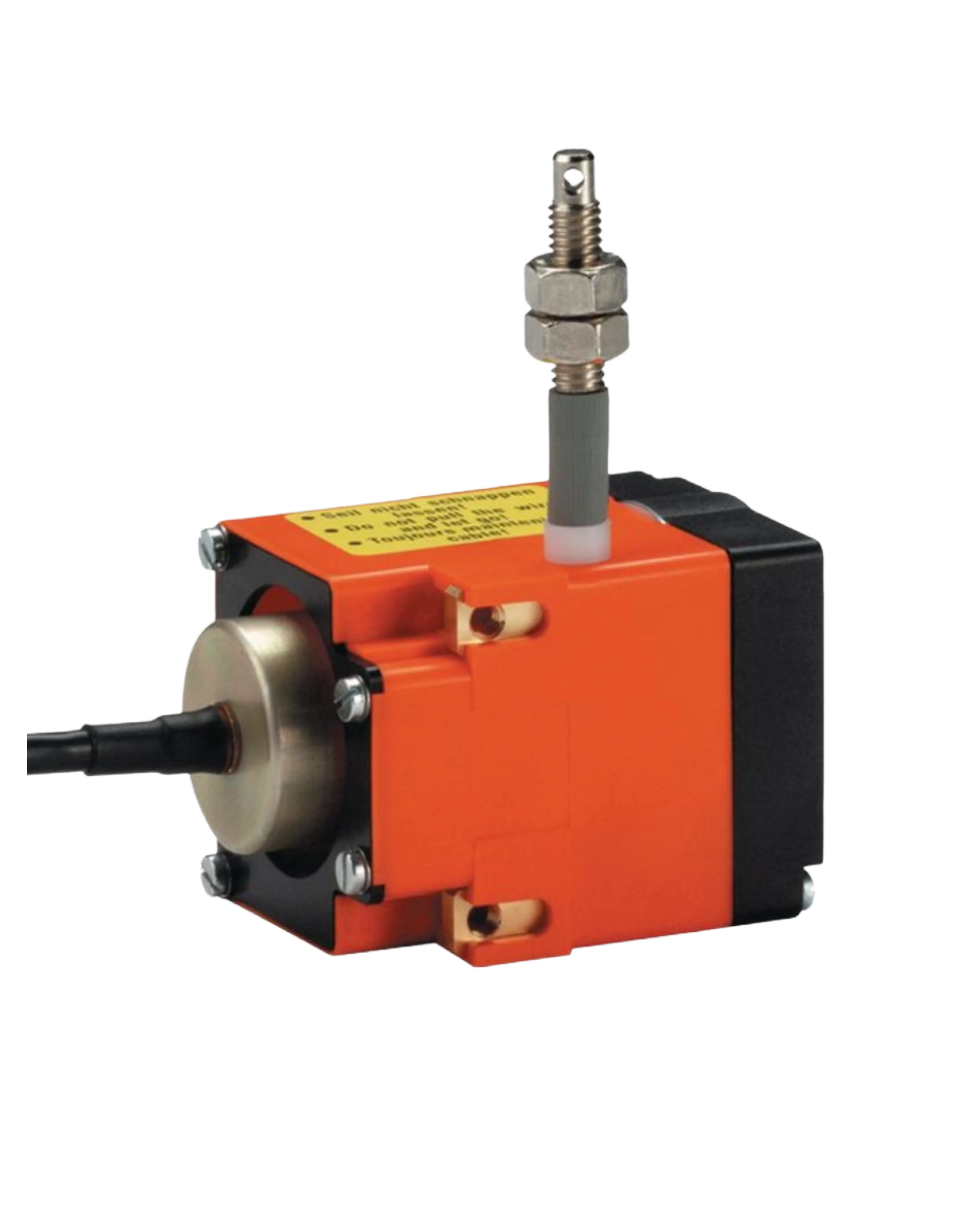

Kubler D5.350 Draw Wire Encoder, 1000mm, Analog Output

The Kubler D5.350 (D5.3501.A111.0000) is a compact draw-wire linear position sensor (draw wire encoder A40) with an analog output, measuring a traverse of up to 1000mm at speeds up to 0.8 m/s, suited to applications with low traversing speed and limited installation space.

It is available with a 4 to 20mA current output, 0 to 10V voltage output, or a 10 kOhm potentiometer output, runs from 15 to 28V DC on the voltage/current versions, delivers a repeat accuracy of +/-0.15mm and linearity of +/-0.35%, uses a plastic/zinc die-cast housing with a stainless-steel plastic-coated wire, and is rated IP50, over a 0 to 50 degrees C working range.
