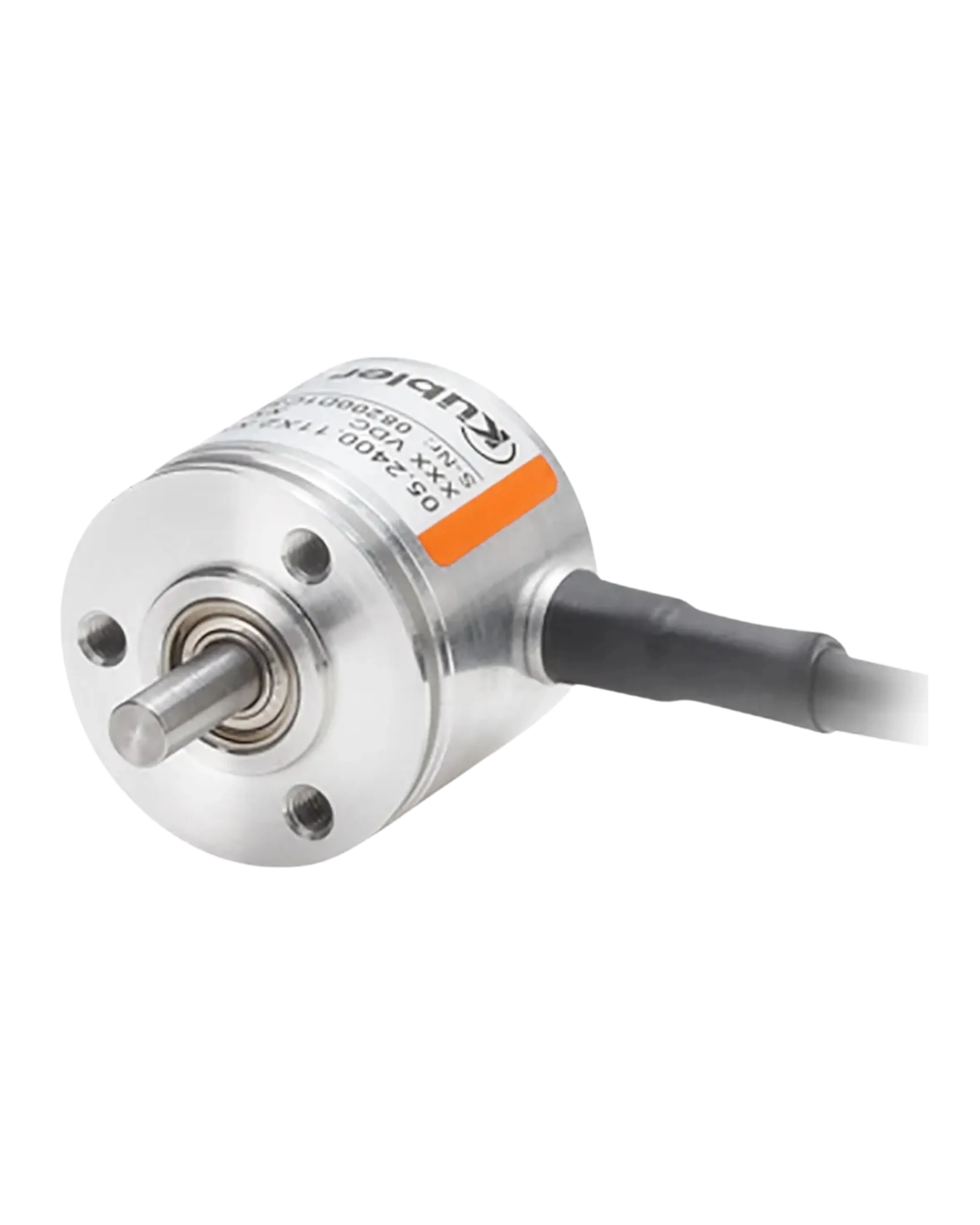

Kubler Miniature Incremental Encoder Type 2400, 1024 PPR

The Kubler Miniature Type 2400 (05.2400.1122.1024) is a compact incremental shaft encoder delivering 1024 pulses per revolution, built for pick-and-place machines and other space-critical motion feedback applications, meeting the German Railways EN 50121 EMC standard.

It operates up to 12,000 min-1, runs from 5 to 24V DC or 8 to 30V DC with reverse-connection and short-circuit protection, gives a push-pull output with a maximum pulse frequency of 160kHz, is rated IP64, and covers a working temperature of -20 to +85 degrees C with a stainless steel shaft.
