Kubler 0.570.012.E90 SSI Display Counter, Type 570

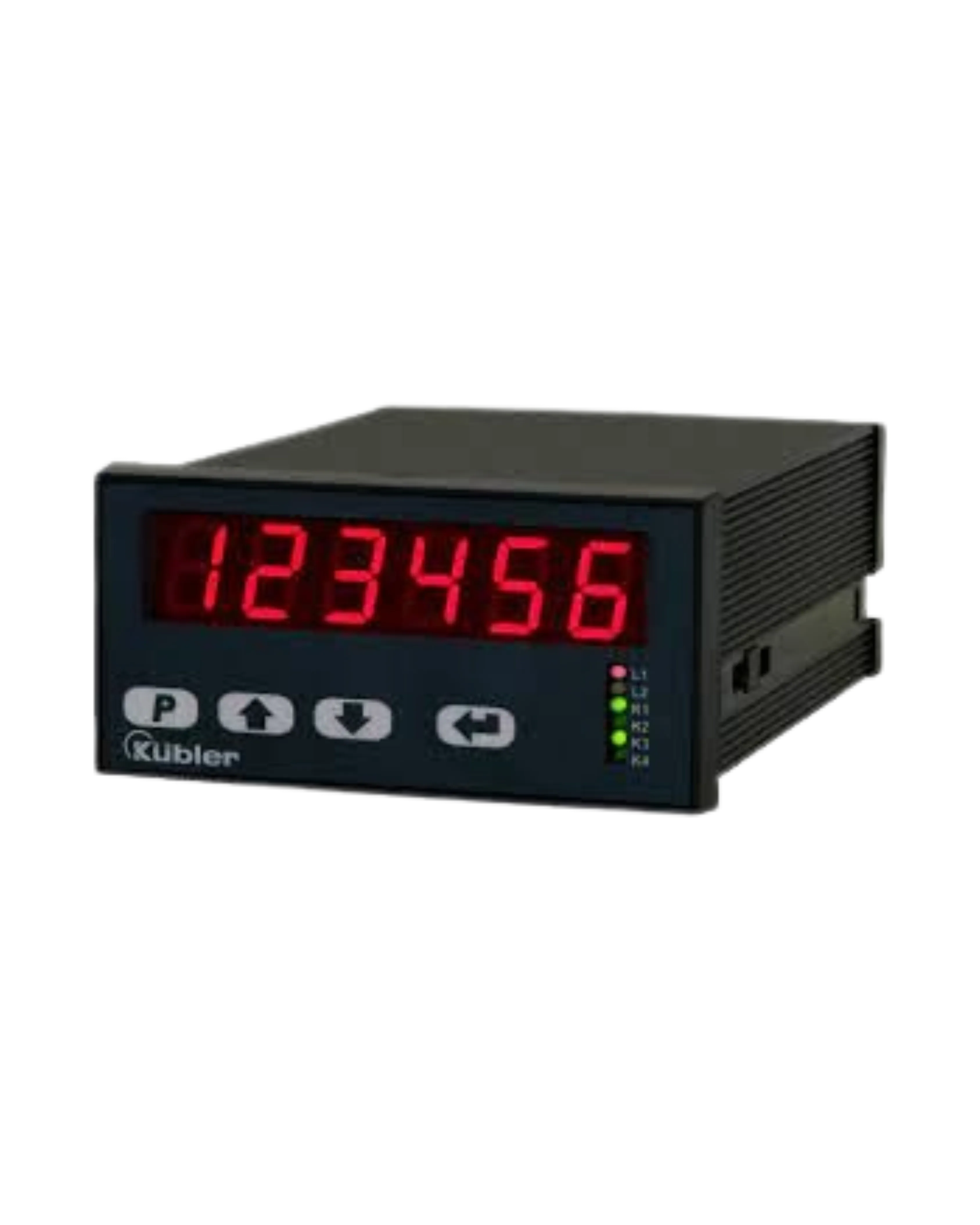

The Kubler 0.570.012.E90 is an SSI-Display Type 570 counter that reads an SSI absolute encoder signal and shows the position on a large 15mm high, 6-digit LED display, with a scaleable 14-bit analog output for feeding the value to a PLC or drive.

It accepts SSI clock frequencies from 100Hz to 1MHz in Gray or binary code up to 25-bit, offers master or slave mode, an analog output of 0 to 10V, -10 to +10V, 0 to 20mA or 4 to 20mA at 0.1% accuracy, runs from 17 to 30V DC or 115/230V AC, and mounts in a 48 x 96mm DIN housing rated IP65 at the front.
