ifm

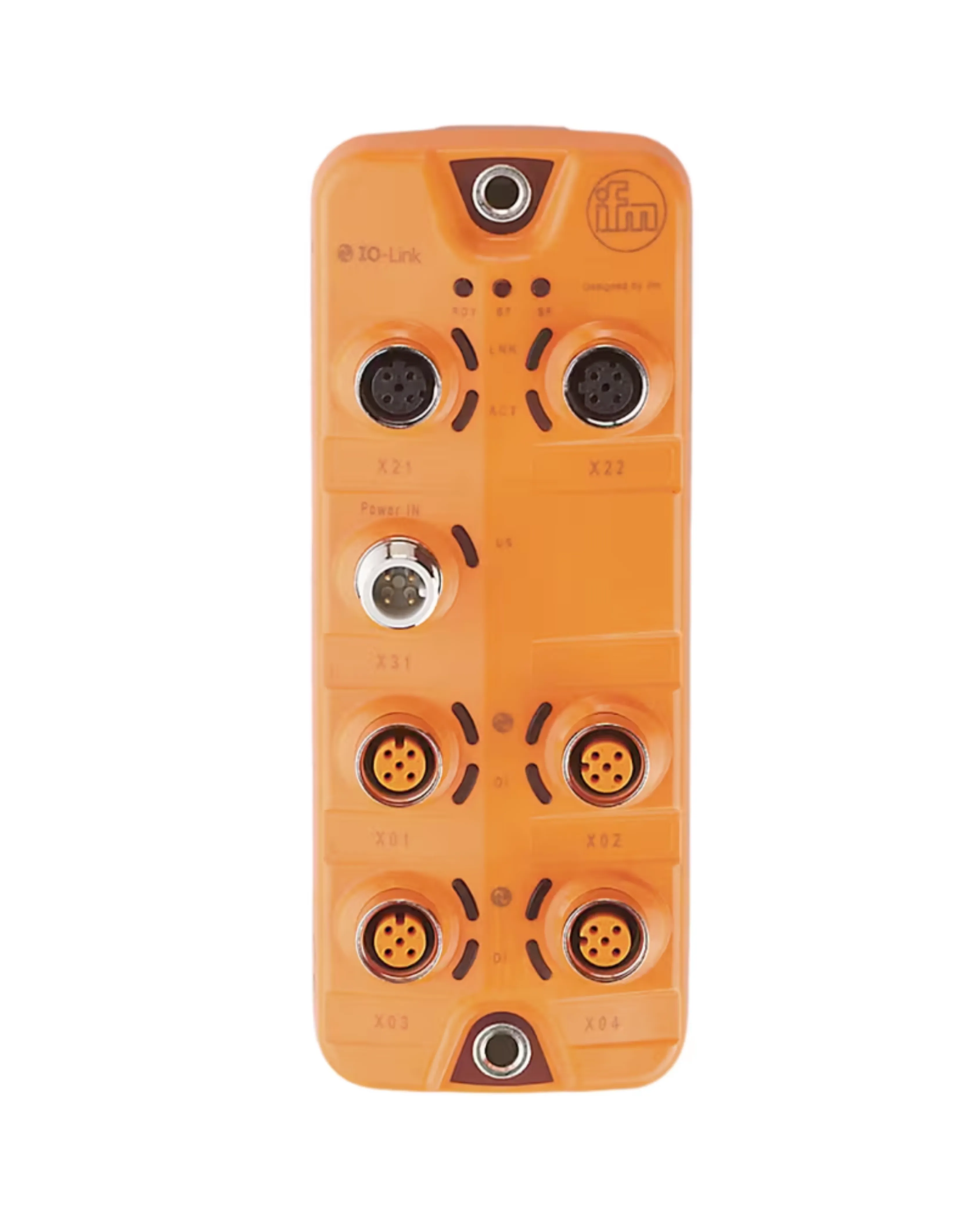

The ifm AL1120 is an IP67-rated IO-Link master with an EtherNet/IP interface, giving 4 Class A IO-Link ports configurable as up to 8 digital inputs and 4 digital outputs for decentralised field I/O without a control cabinet.
It runs from 20 to 30V DC with a total sensor supply current up to 3.6A, supports DHCP/BOOTP/static addressing and DLR ring topology over 10/100 Mbit/s Ethernet, is rated IP65/IP66/IP67 and NEMA 250 Type 6P for -25 to 60 degrees C ambient, with an MTTF of 96 years.
Ready 12 Months Manufacturer Warranty
Key Specifications
Brandifm
CategoryIndustrial Communication
Part NumberAL1120
ConditionNew, Genuine OEM
AvailabilityEx-stock / Ready
Warranty12 Months Manufacturer Warranty
Lead Time4-6 weeks
Features
- IO-Link master with EtherNet/IP, 4 Class A ports (up to 8 digital I/O)
- Total sensor supply current up to 3.6A
- DHCP/BOOTP/static IP, DLR ring topology, 10/100 Mbit/s
- IP65/IP66/IP67, NEMA 250 Type 6P, MTTF 96 years
