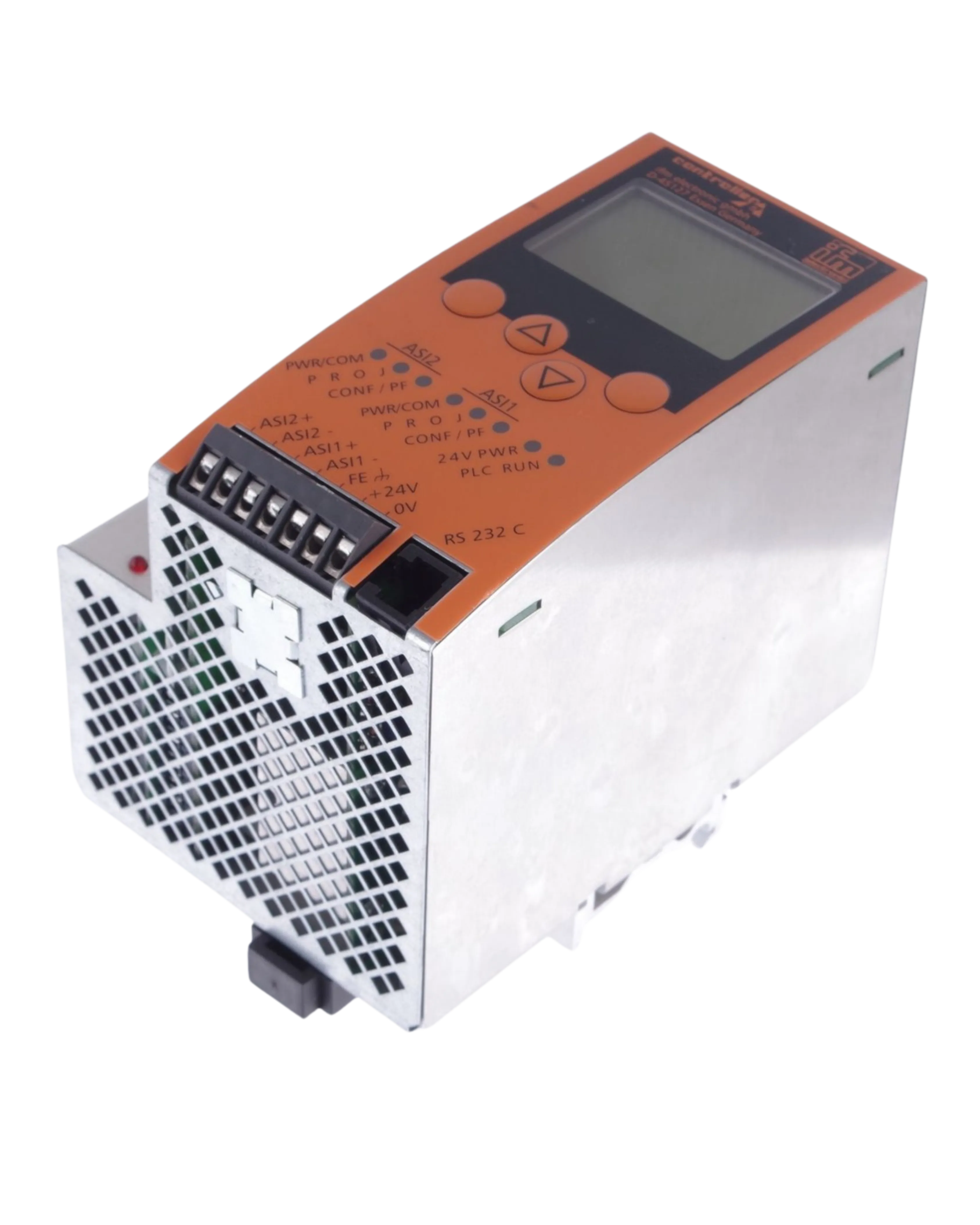

ifm AC1306 AS-Interface PROFIBUS DP Gateway, 2 Masters

The ifm AC1306 is an AS-Interface PROFIBUS DP gateway used as a decentralised controller, managing 2 AS-i masters and giving a full graphic LCD display for on-site diagnostics.

It runs from 24V DC (supply class 2 to cULus), draws under 500mA with a rated insulation of 500V, communicates over PROFIBUS at 12 MBaud to EN 50170 and RS232 at 9600 to 115200 Baud via an isolated RJ11 port, and is rated IP20 with AS-i version 2.1, master profile M3.
