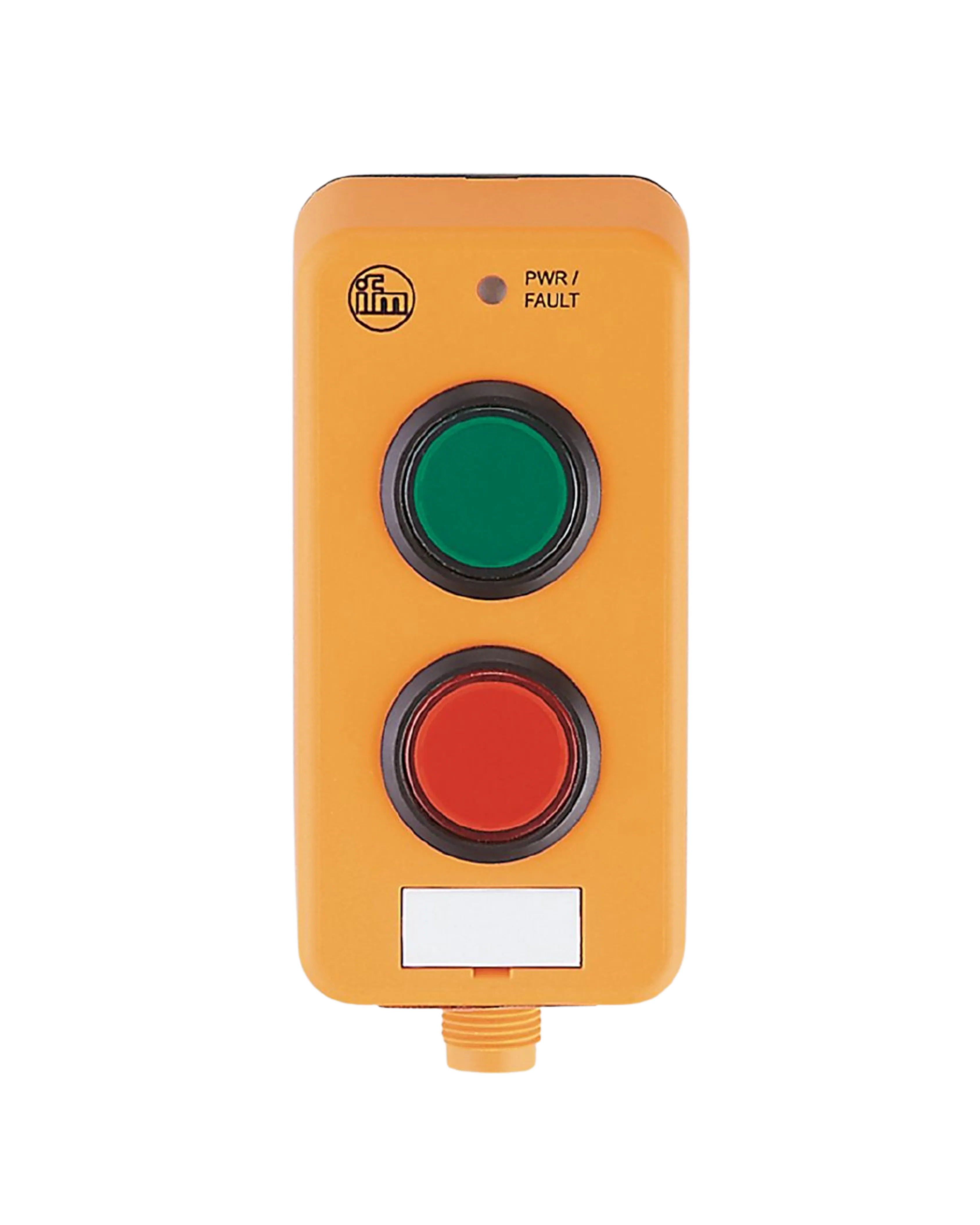

ifm AC2398 AS-Interface Illuminated Pushbutton Module, 2BI 2LO

The ifm AC2398 is an AS-Interface illuminated pushbutton module with 2 freely programmable, backlit function keys (red/green) and 2 binary inputs, used as a compact local operator station wired directly onto an AS-i network.

It runs from 26.5 to 31.6V DC drawing up to 55mA from AS-i, connects via an M12 connector, is UL recognized (Enclosure Type 1, Class 2 supply), rated IP67 for -25 to 60 degrees C ambient, and supports AS-i versions 2.11 and 3.0 with extended addressing mode.
