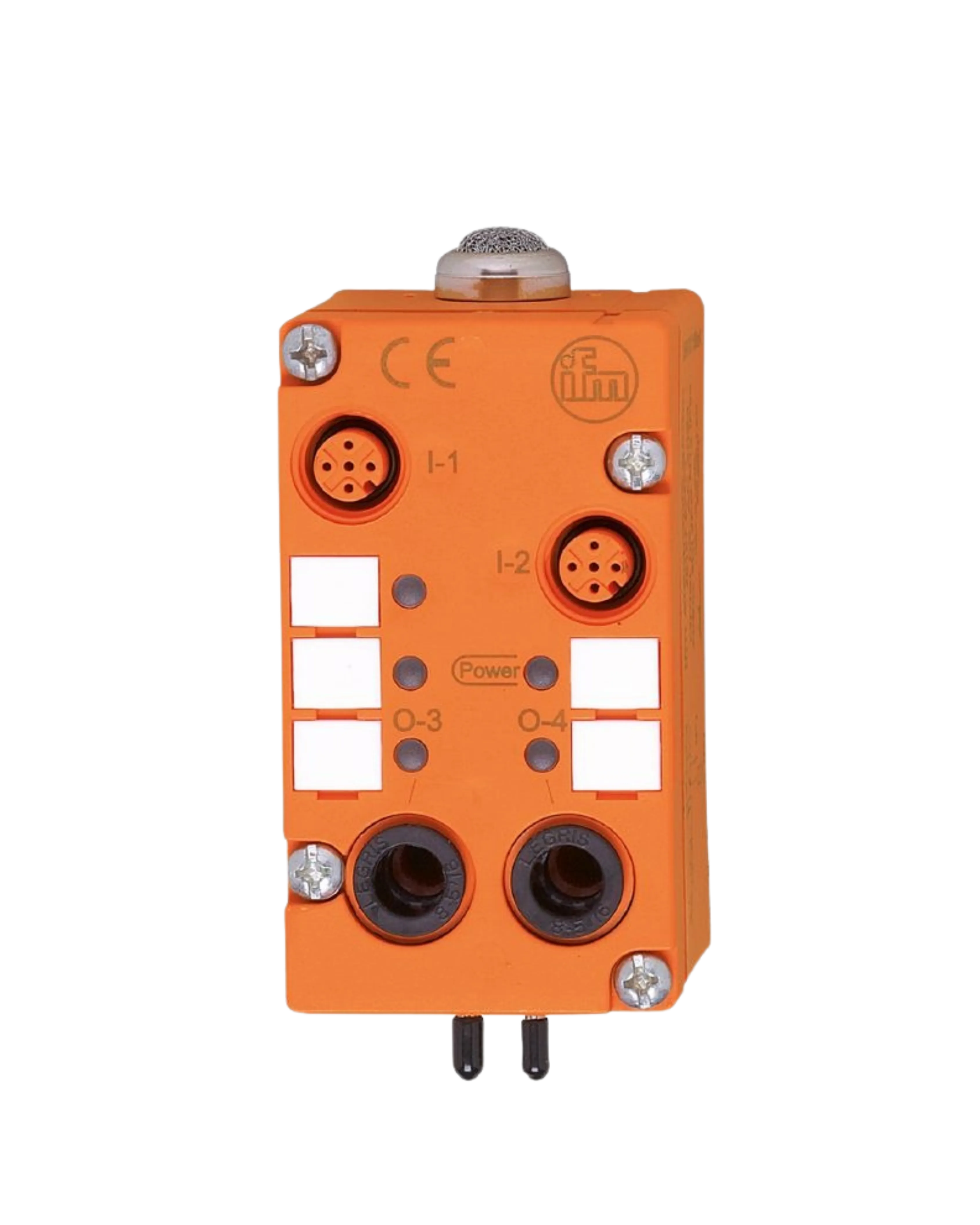

ifm AC2024 AS-Interface AirBox, 2DI 2PO M12

The ifm AC2024 AirBox is a field-mountable AS-Interface node combining 2 PNP digital inputs with 2 integrated 3/2-way pneumatic seat valve outputs, built for wet-environment field installation directly on pneumatic actuators.

It runs from 26.5 to 31.6V DC drawing up to 150mA from AS-i, handles an operating pressure range of 2 to 8 bar with an air flow of 350 l/min at 6/5 bar, is rated IP65 for -0 to 55 degrees C ambient (special air treatment needed below 0C), and meets AS-i master profiles M2/M3/M4.
