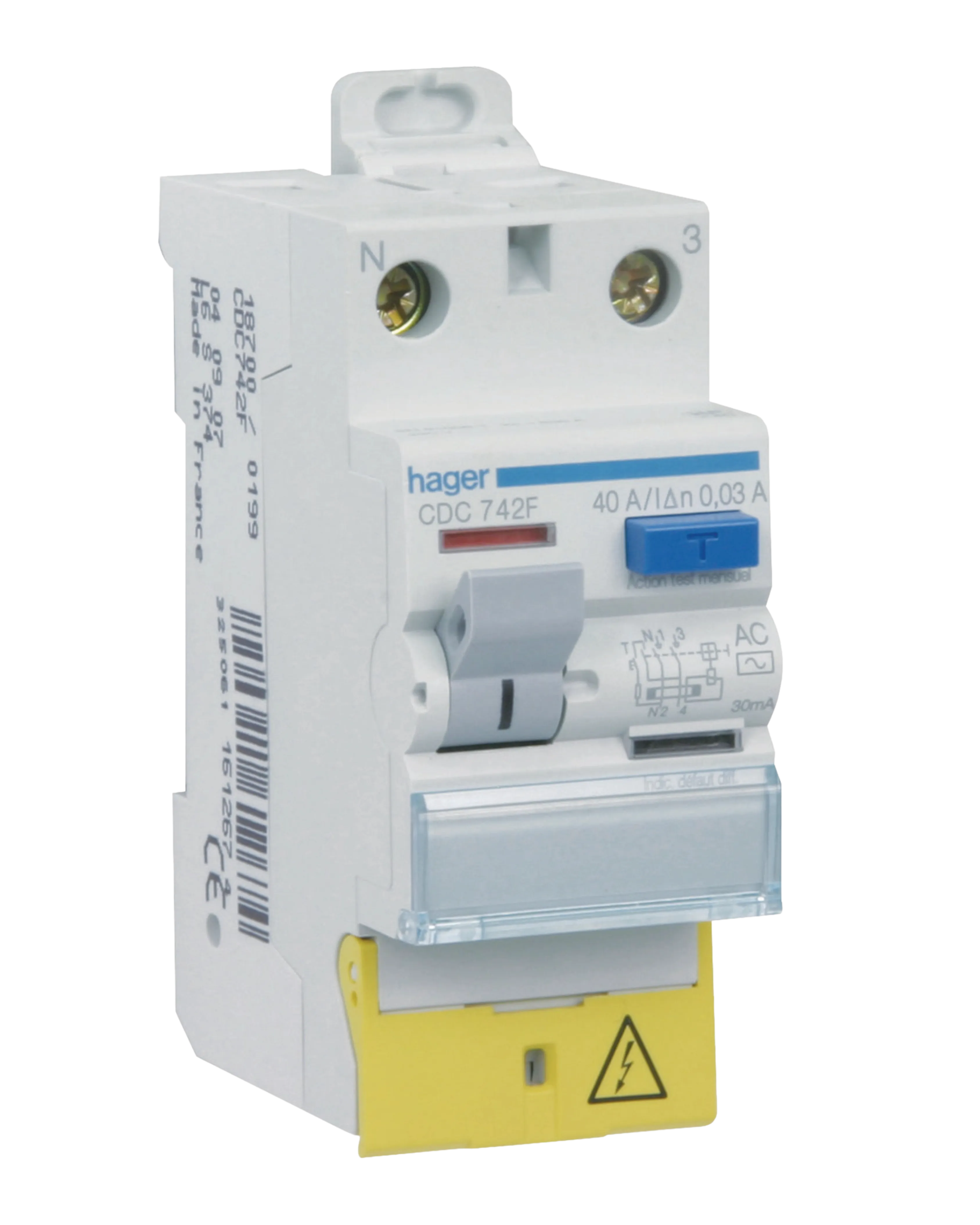

Hager CDC742F RCCB, 2P 40A 30mA Type AC Offset Terminals

The Hager CDC742F is a 2-pole pure residual current circuit breaker rated 40A with 30mA Type AC sensitivity, used as incomer earth fault protection on single-phase plus neutral distribution boards.

It is rated 6kA conditional short-circuit current Inc per EN 61008-1, a making and breaking capacity of 0.63kA, rated operational voltage 230V, insulation voltage 500V, impulse withstand 4000V, an electrical endurance of 2000 cycles and 4000 mechanical operations, in a 2-module, IP20 enclosure with offset screw terminals.
