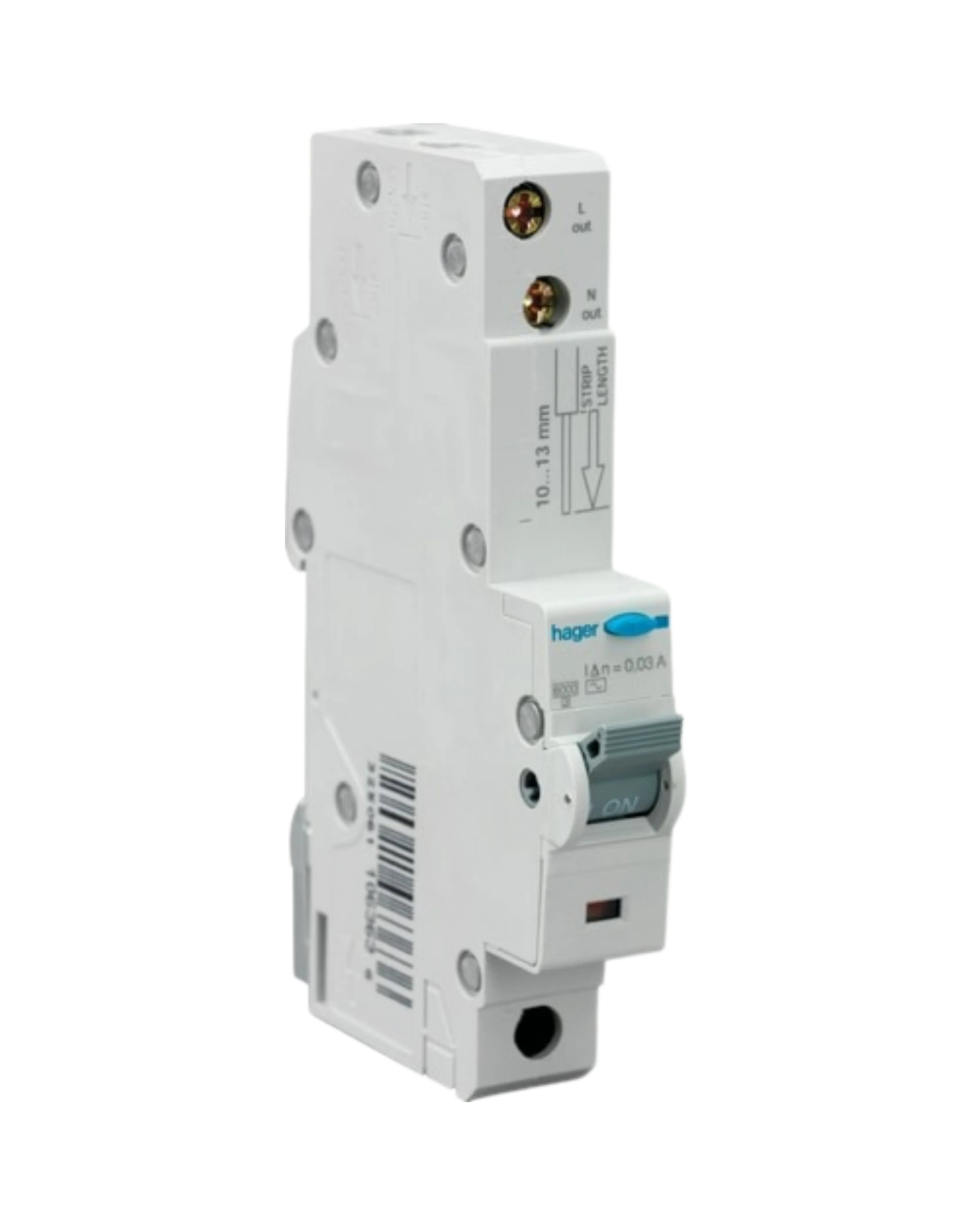

Hager ADA166U RCBO Electronic, 1P 16A C Curve 30mA Type A

The Hager ADA166U is a single-pole electronic RCBO combining overcurrent protection with 30mA Type A residual current protection, covering AC and pulsating DC earth fault currents for socket outlet circuits feeding electronic loads.

It is rated 16A on a C curve with a 10kA breaking capacity Icn per IEC 60898-1, rated insulation voltage 250V, impulse withstand 4000V, overvoltage category III, an electrical endurance of 2000 cycles and 1000 mechanical operations, in a 1-module enclosure with screw terminals for 1 to 25 square mm conductors.
