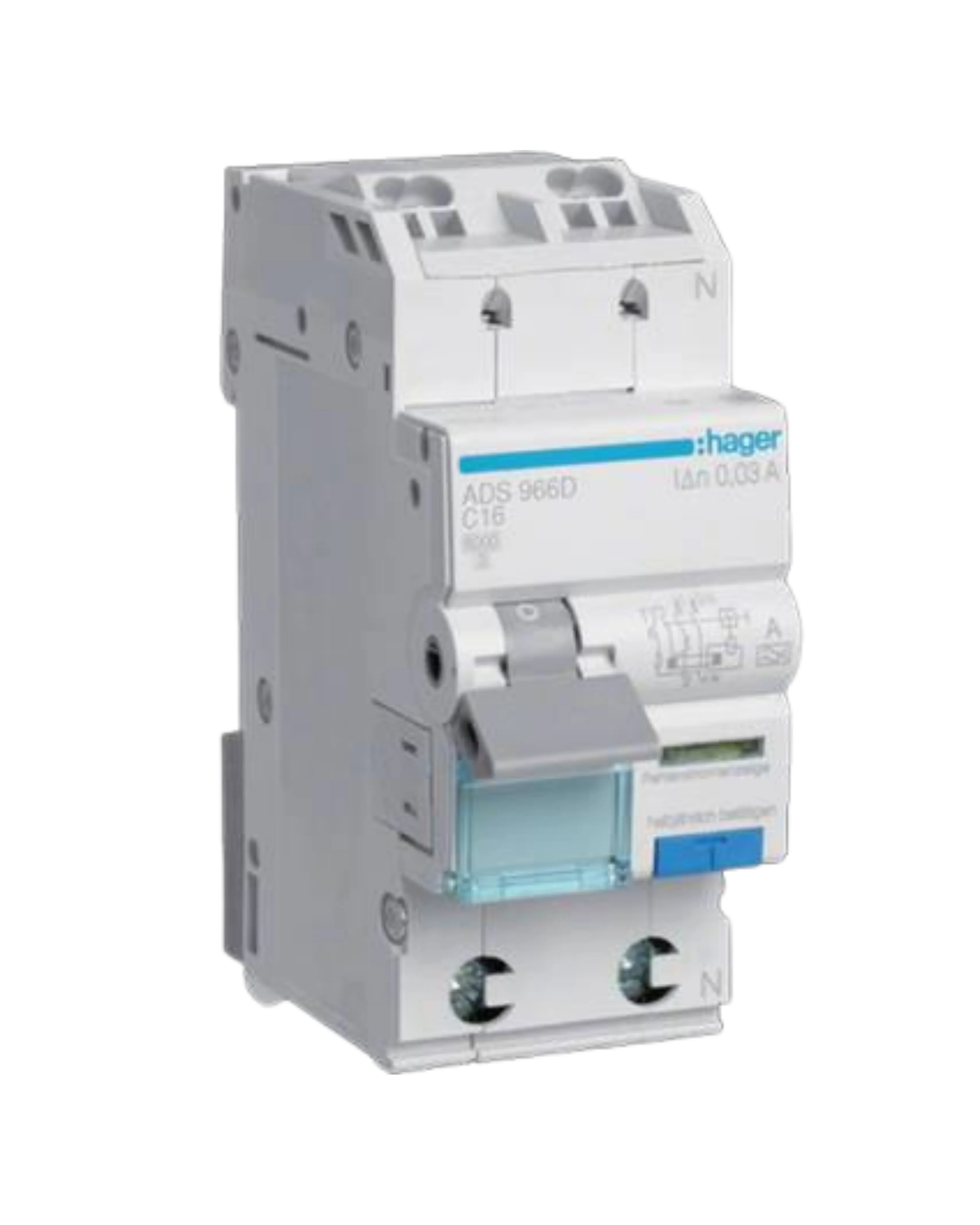

Hager ADS966D RCBO, 1P+N 16A C Curve 30mA Type A Quick Connect

The Hager ADS966D is a 1P+N residual current circuit breaker with overcurrent protection, rated 16A on a C curve with 30mA Type A residual sensitivity, fitted with a quick-connect phase busbar tab for fast panel assembly.

It delivers a 6kA breaking capacity Icn per IEC 60898-1, rated insulation voltage 500V, impulse withstand 4000V, a maximum operating voltage of 240V, and operates across -25 to 40 degrees C in a 2-module, IP2X enclosure, with BIConnect bottom terminals and 2000 mechanical/electrical switching cycles rated.
