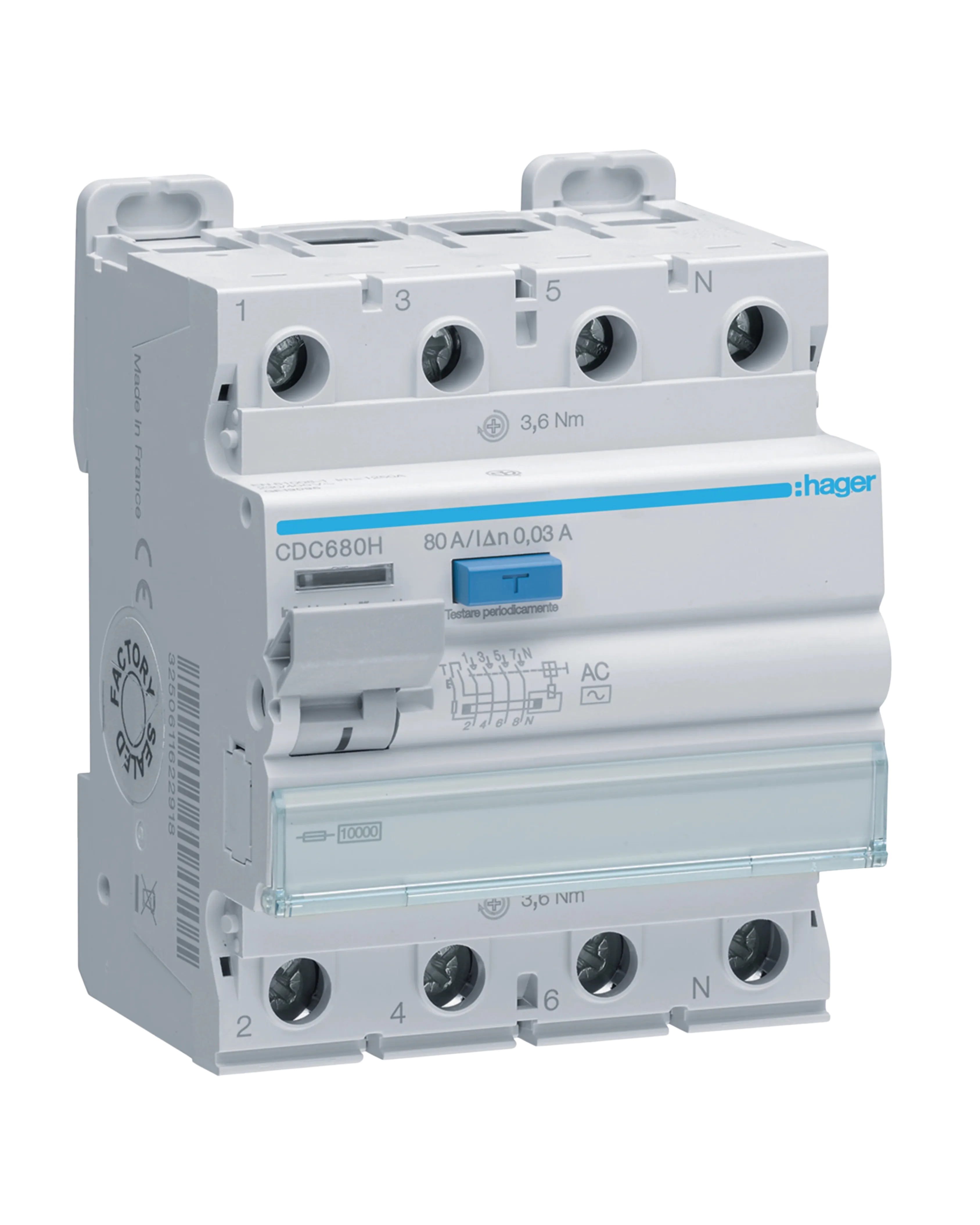

Hager CDC680H Pure RCCB, 4P 80A 30mA Type AC

The Hager CDC680H is a 4-pole pure residual current circuit breaker rated 80A with 30mA Type AC sensitivity, sized for heavier 3-phase distribution boards needing earth fault protection without an overcurrent trip.

It is rated 10kA conditional short-circuit current Inc per IEC 61008-1, a making and breaking capacity of 1.25kA, holding its full 80A rating across -25 to 70 degrees C, with insulation voltage 500V, impulse withstand 4000V, impulse voltage withstand 6000V per IEC 60947-3, and a mechanical endurance of 20000 operations, in a 4-module, IP20 enclosure.
