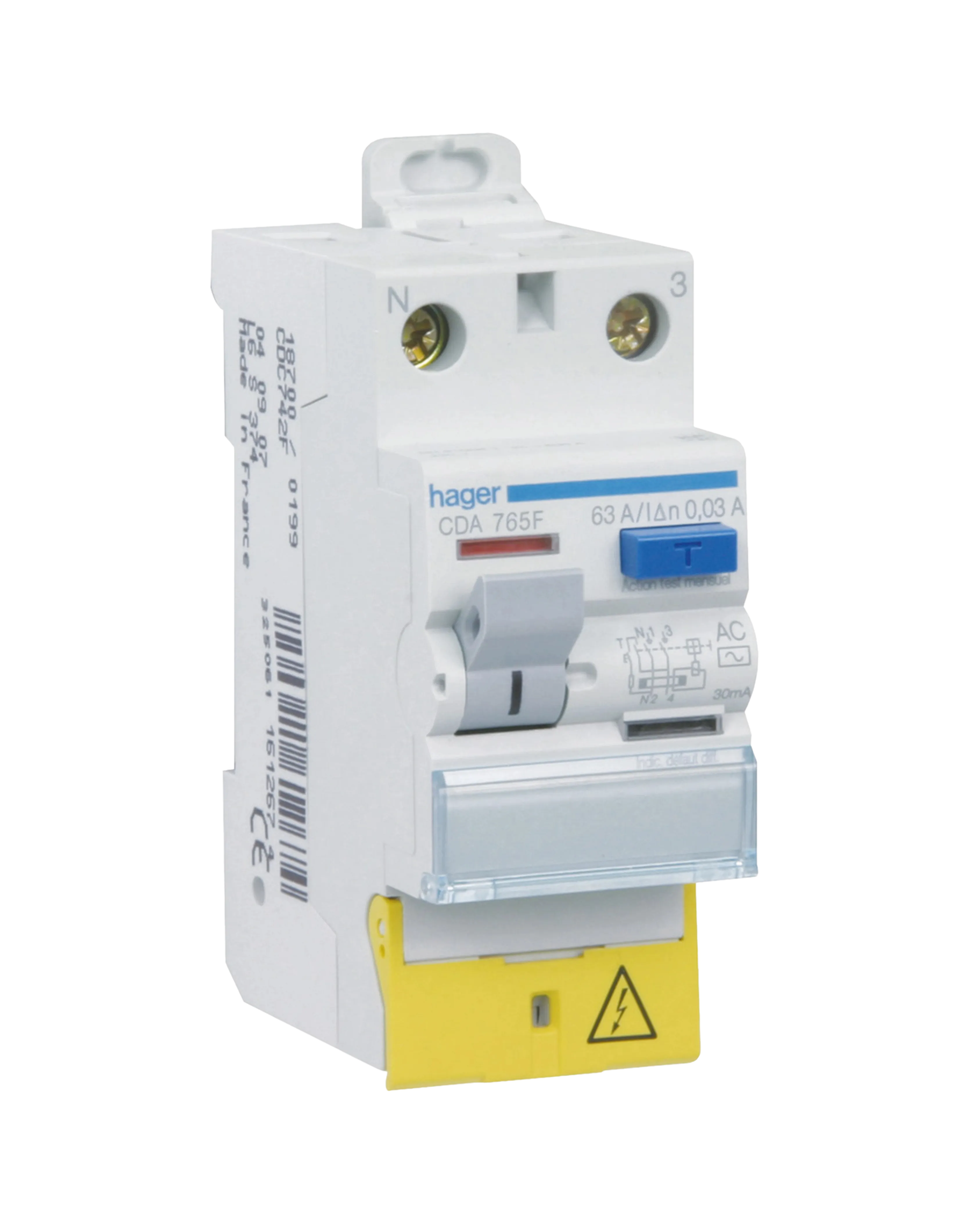

Hager CDA765F RCCB, 2P 63A 30mA Type A Offset Terminals

The Hager CDA765F is a 2-pole residual current circuit breaker (pure RCCB, no overcurrent trip) rated 63A with 30mA Type A sensitivity, used as the main incomer protection on single-phase distribution boards supplying circuits with electronic loads.

It is rated 6kA conditional short-circuit current Inc per EN 61008-1, a making and breaking capacity of 0.63kA, rated operational voltage 230V, insulation voltage 500V, impulse withstand 4000V, holding its full 63A rating from -25 up to 55 degrees C before derating, in a 2-module, IP20 enclosure with offset screw terminals.
