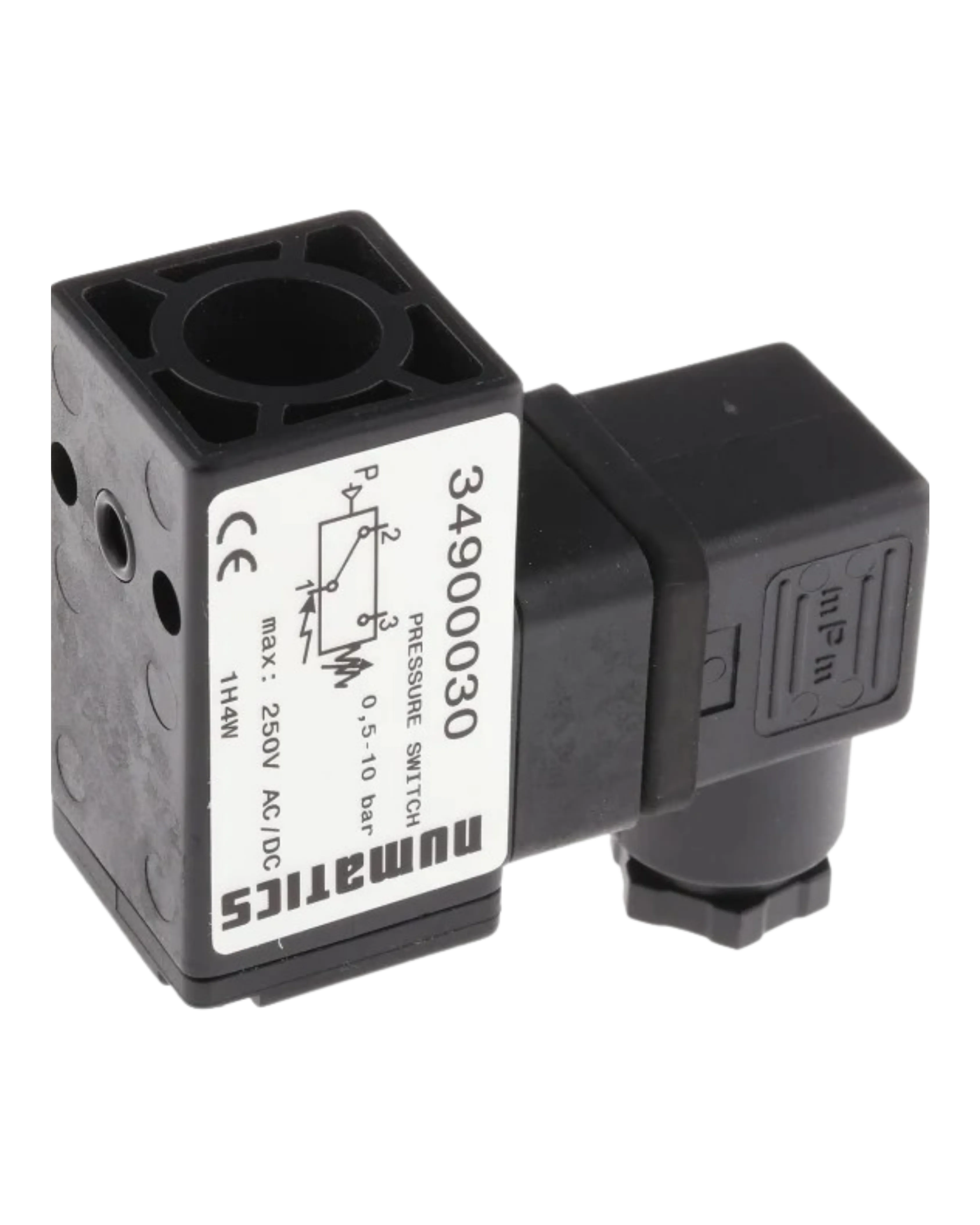

34900030 ASCO - Adjustable Pressure Switch

The 34900030 is an ASCO 349 Series adjustable pressure switch for compressed air or neutral gas, with a subbase-mounted pneumatic connection adaptable onto an FRL air preparation unit.

It switches a reversing SPDT contact across a 0.5 to 10 bar setting range (0.2-6 or 0.5-16 bar variants available), rated 10 or 16 bar max pressure, up to 250 VAC/24 VDC and 5 A, IP65, with a Grivory PA61/XT body (aluminium for the 16 bar version), NBR seals and a mechanical life of 5 million cycles.
