ASCO

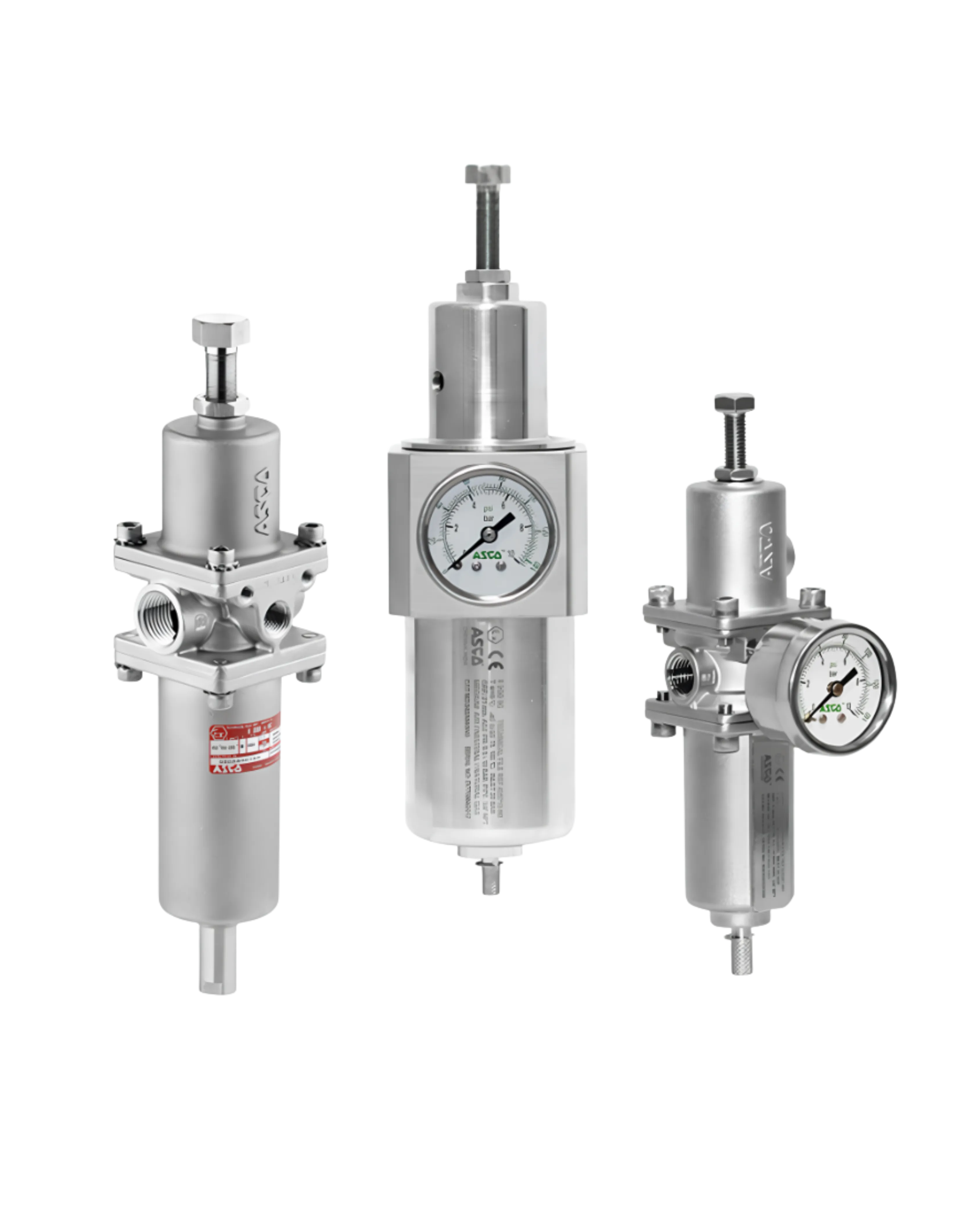

The 342A8201G is an ASCO 342 Series filter and regulator in full 316 stainless steel, built for corrosive environments and certified for use in potentially explosive atmospheres per ATEX 94/9/EC.
Rated II 2GD c IIC T100 degrees C (T5) at 80 degrees ambient or T85 degrees C (T6) at 75 degrees ambient, it is IEC 61508 SIL certified, filters to 25 or 5 microns, regulates 0.5 to 10 bar from a 20 bar max inlet, and operates -40 to 90 degrees C (-50 degrees C optional) with low-temperature FPM elastomers.
Ready 12 Months Manufacturer Warranty
Key Specifications
BrandASCO
CategoryActuators – Hydraulics – Pneumatics
Part Number342A8201G
ConditionNew, Genuine OEM
AvailabilityEx-stock / Ready
Warranty12 Months Manufacturer Warranty
Lead Time3-4 weeks
Features
- Full 316 stainless steel body, bonnet and internals per ASTM A351/NACE MR 01.75
- ATEX 94/9/EC, II 2GD c IIC T100C (T5) or T85C (T6), IEC 61508 SIL certified
- Adjustable 0.5-10 bar from a 20 bar max inlet, hysteresis below 0.2 bar
- 25 or 5 micron filtration, -40 to 90 degrees C (-50 degrees C option)
