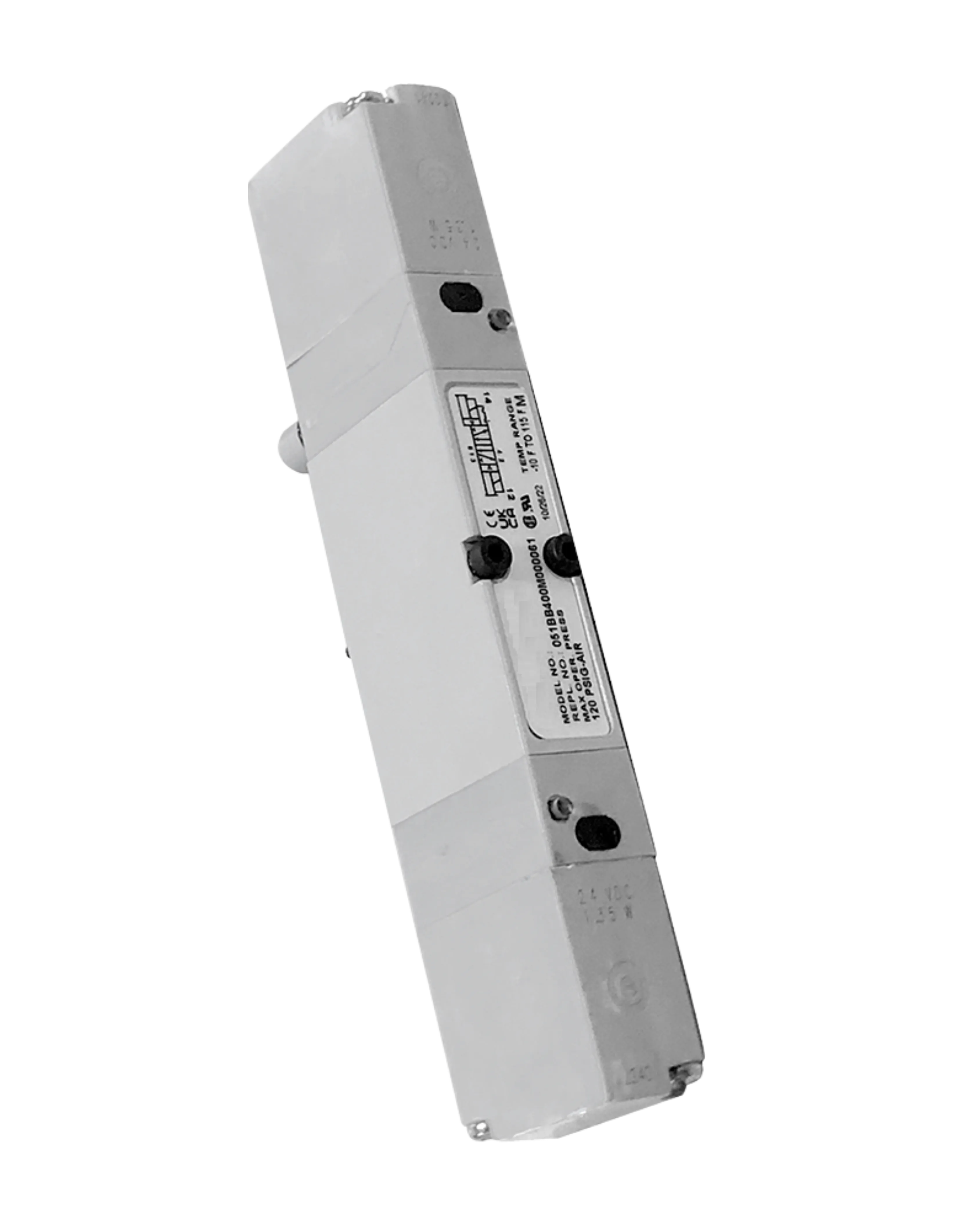

051BB400M000061 ASCO - Dual Solenoid Pilot Valve

The 051BB400M000061 is an ASCO Numatics 2005 Series electrically actuated pneumatic dual solenoid pilot valve, a 2-position 4-way (5/2) spool and sleeve valve with a flush manual override.

Rated Cv 0.56 at 28 inHg vacuum to 150 psig, it runs on 24 VDC with plug-in DC connections (indicating light), draws 0.04 A holding current and 1.35 W, and is rated NEMA 4 / IP65 across -23 to 46 degrees C. Plug-together circuit boards eliminate internal wiring and the modular design accepts Fieldbus electronics.
