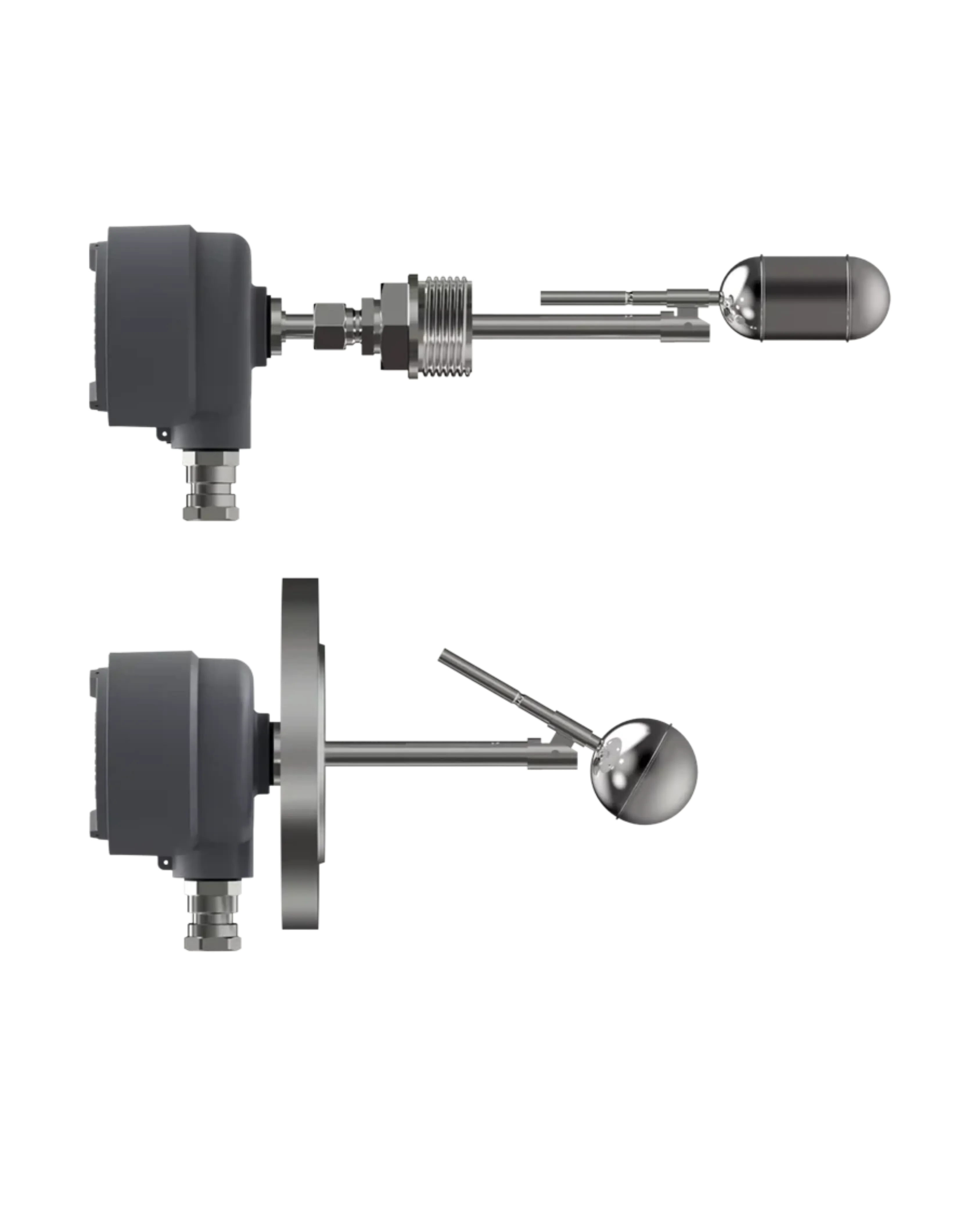

JUMO NESOS R40 LSH Horizontal Float Switch

The JUMO NESOS R40 LSH is a horizontal (side-mounted) magnetic float switch for point level measurement of liquids in storage tanks, containers, oil sumps, water/wastewater treatment, and oil, gas, chemical and petrochemical applications, usable for both minimum and maximum level points.

The float moves on a guide tube and actuates a reed contact via an integrated magnet, available as 1 SPST-NO or 1-2 SPDT-CO switching outputs rated up to AC/DC 230V, 100VA/100W switching capacity, 1A max switching current, with optional integrated Pt100/Pt1000 temperature sensing or a temperature switch contact over -40 to +150 degrees C, DIN class B accuracy (tolerance +/-5K).
