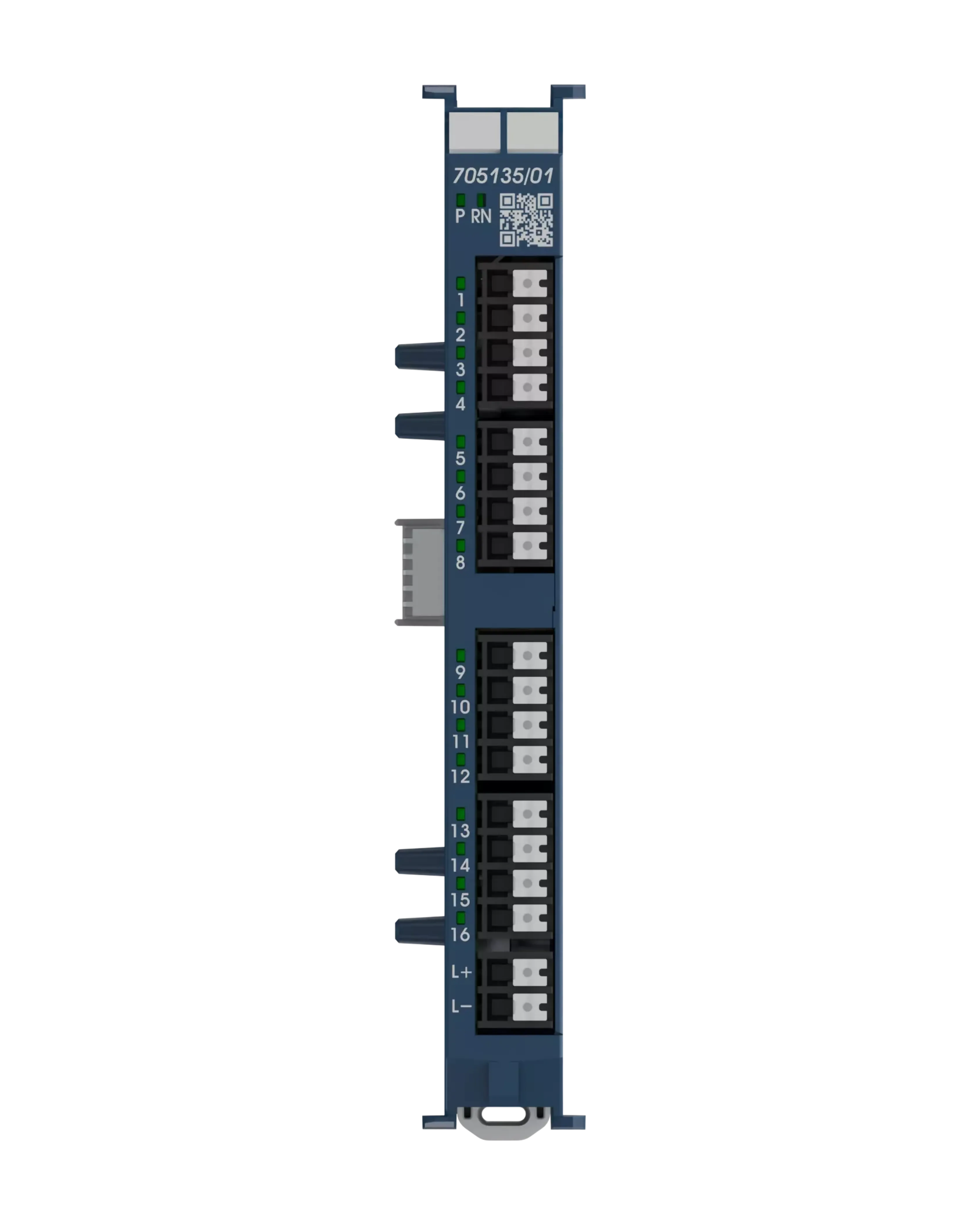

JUMO I/O System 16-Channel Digital Input Module

The JUMO I/O system 16-channel digital input module (705135) provides 16 digital inputs for the JUMO variTRON automation system, suited to HVAC, industrial furnaces and heating systems, water/wastewater, and food and beverage applications, installed on a DIN rail inside a control cabinet.

It uses PUSH IN terminal strips for quick wiring, plugs directly together with adjoining modules for operating voltage and system bus, runs from DC 24V +25/-20% SELV drawing 0.1A at 19.2V (1.5W module electronics, 13.44W max), accepts a DC 0/24V PLC-level input signal (max 5mA per input), and gives two status LEDs (Power/Run) plus one signal LED per input.
