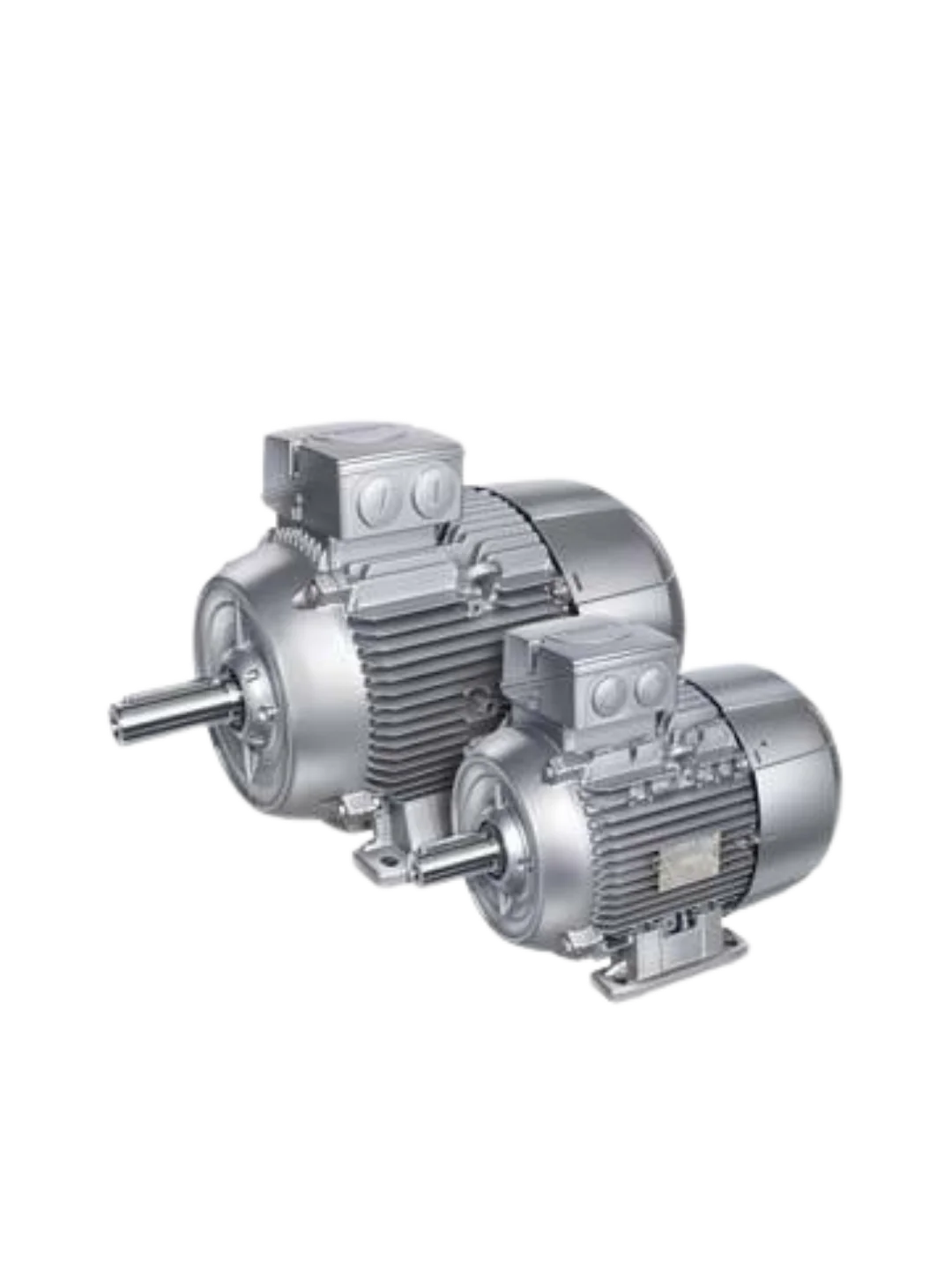

1LE1001 Innomotics - SIMOTICS GP IE2 Low-Voltage Motor, 4-Pole

The 1LE1001 is an Innomotics SIMOTICS GP aluminum-frame low-voltage motor built to IE2 High Efficiency, offered here in the 4-pole, 1500 rpm synchronous speed range from 1.1 to 37 kW.

Across the 4-pole band the 1LE1001 spans frame sizes 80M to 200L, with rated speeds from 1425 to 1470 rpm at rated load against a 1500 rpm synchronous speed. The motor is certified to IE2 High Efficiency per IEC 60034-30-1 with a 1.15 service factor, cooled either self-ventilated (IC411) or, with order code F90, forced-air without an external fan and fan cover (IC418). Insulation is thermal class 155 (temperature class F), utilized to thermal class 130 (temperature class B), with IP55 degree of protection as standard. Motor protection, terminal box position and voltage are configurable at order through the standard SIMOTICS GP article number options.
