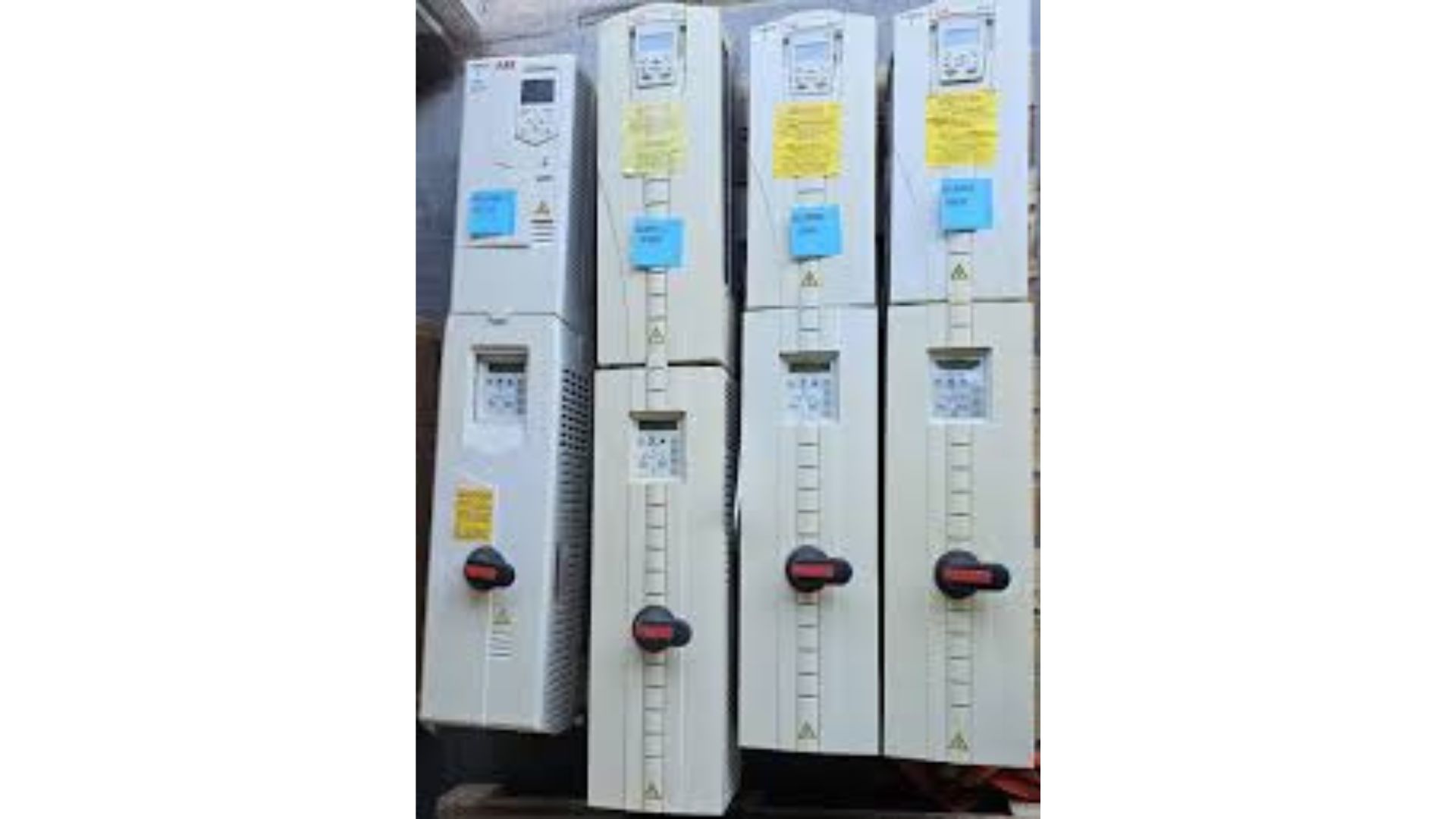

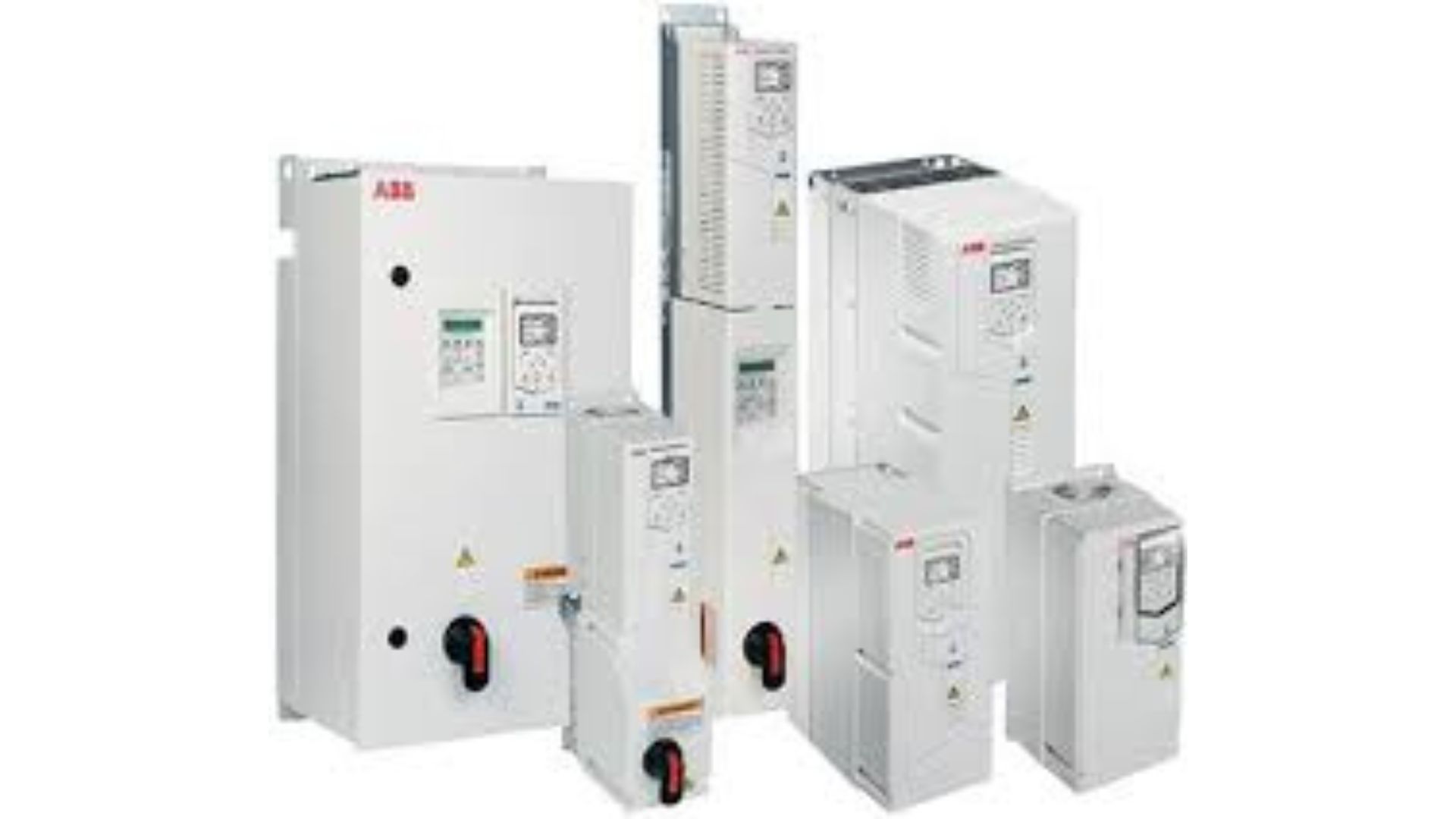

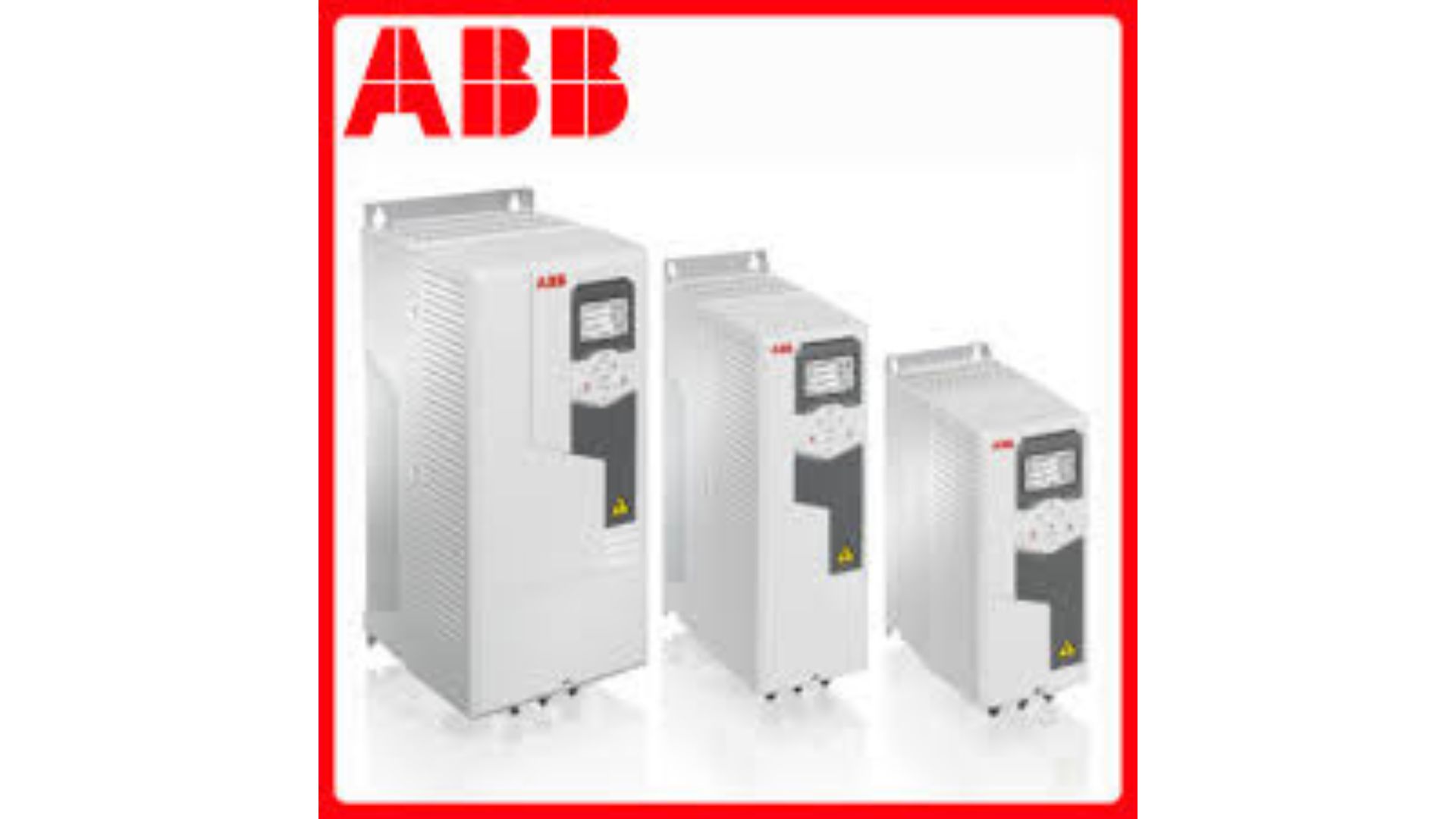

ABB ACH580 – Complete HVAC VFD Solution

The ABB is a high-performance HVAC variable frequency drive (VFD) designed specifically for heating, ventilation, and air conditioning systems. The  HVAC drive delivers reliable motor control, energy savings, and seamless building automation integration.

The ACH580 VFD is widely used in commercial buildings, hospitals, shopping malls, hotels, data centers, and industrial HVAC plants.

If you are searching for ABB models, ABB specifications, or  HVAC drive details, this complete guide covers everything.

---

Key Features of HVAC Drive

The ABB ACH580 VFD series includes advanced HVAC-specific features:

• Built-in BACnet MS/TP communication

• Integrated Modbus RTU

• Optional BACnet/IP & PROFINET

• Built-in Safe Torque Off (STO)

• Fireman’s override mode

• Energy optimizer

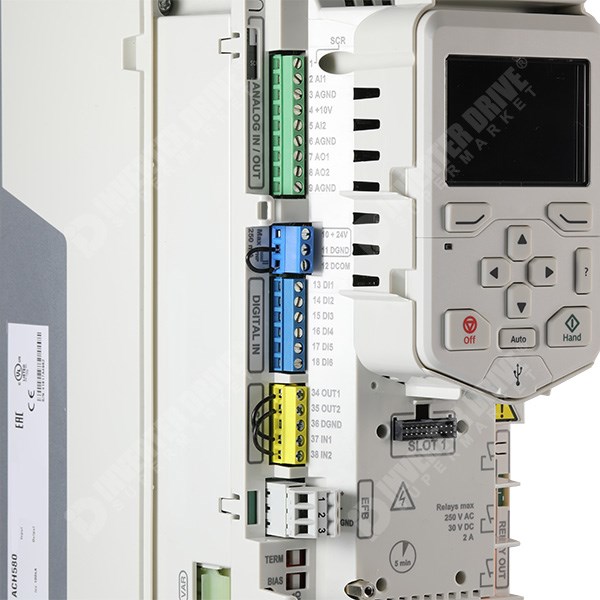

• HVAC dedicated control panel

• Embedded EMC filter

• Real-time clock

• Built-in DC choke

These features make the ABB ACH580 HVAC drive one of the most reliable HVAC VFD solutions in the market.

---

Technical Specifications

The specifications support both light-duty and heavy-duty HVAC applications.

---

Models List

The ABB ACH580 series is divided into multiple model types based on enclosure and voltage class.

---

01 (Wall Mounted – IP21 / IP55)

Most common ABB ACH580 HVAC VFD models in 380–480V range:

• ACH580-01-04A1-4 (0.75 kW)

• ACH580-01-05A6-4 (1.5 kW)

• ACH580-01-07A3-4 (2.2 kW)

• ACH580-01-12A6-4 (5.5 kW)

• ACH580-01-25A0-4 (11 kW)

• ACH580-01-38A0-4 (18.5 kW)

• ACH580-01-72A0-4 (37 kW)

• ACH580-01-145A-4 (75 kW)

• ACH580-01-260A-4 (132 kW)

---

ABB ACH580 Price List

07 (Cabinet Built – High Power)

The ACH580-07 cabinet series supports high power HVAC systems:

• Power range up to 500 kW

• Available in 380–480V and 500–690V

• Suitable for central plant systems

---

🔹 Voltage Class Explanation

• -2 = 200–240V

• -4 = 380–480V

• -5 / -7 = 500–690V

Example:
ACH580-01-12A6-4

• 01 = Wall mounted

• 12A6 = Current rating

• -4 = 400V class

This structure helps when selecting the correct ABB ACH580 HVAC VFD model.

---

🔹 Applications of HVAC Drive

The ABB series drive is ideal for:

• HVAC pump control

• Fan speed control

• Cooling towers

• Air handling units (AHU)

• Building automation systems

The ACH580 VFD ensures smooth motor control and energy efficiency in HVAC operations.

Why Choose ABB ACH580?

The ABB ACH580 HVAC drive offers:

✔ Dedicated HVAC functionality
✔ Easy commissioning
✔ Reliable motor protection
✔ Energy savings up to 30%
✔ Global ABB service support
✔ Seamless BMS integration

For building owners and system integrators, the VFD series provides long-term reliability and performance.

Summary

The ABB ACH580 general purpose series drive is a dedicated HVAC VFD designed for reliable, energy-efficient motor control. With multiple models, voltage options, and protection classes, the HVAC drive is ideal for modern building automation systems.
