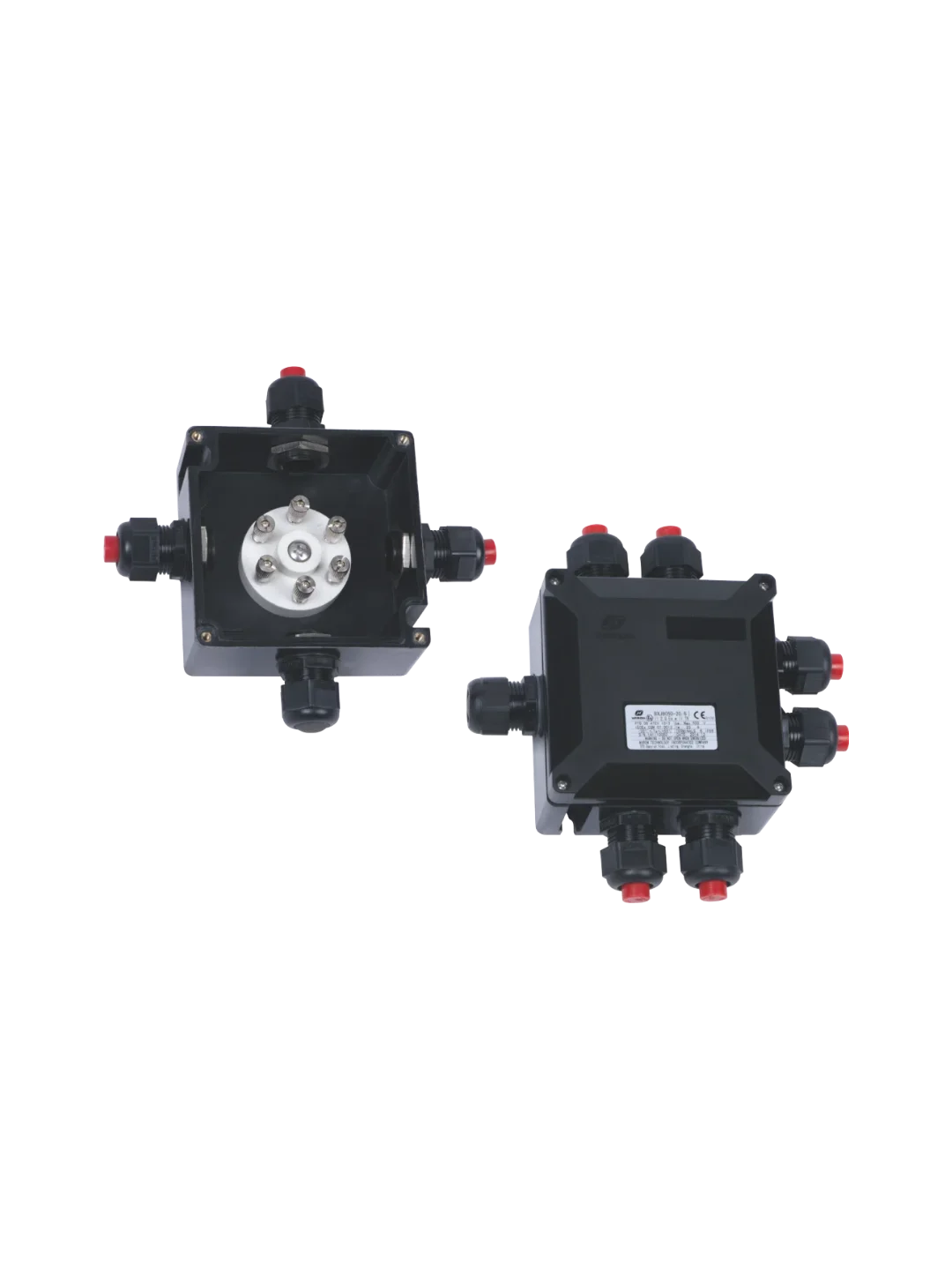

BXJ8050-20/6 Series Warom - Explosion-Proof Junction Boxes

The BXJ8050-20/6 Series is a compact Warom GRP junction box with six stud terminals, certified Ex e IIC T6 Gb for Zones 1 and 2.

This is the small-format member of the BXJ8050 family, meant for field junctions and instrument loop connections rather than large termination racks. Six stud terminals take 0.2 to 4 mm2 conductors at 20 A and up to 500 V AC, the GRP body is rated IP65 across -20 to +55 degrees C, and it carries IECEx, ATEX and CU-TR certification to EN and IEC 60079-0 and 60079-7.
