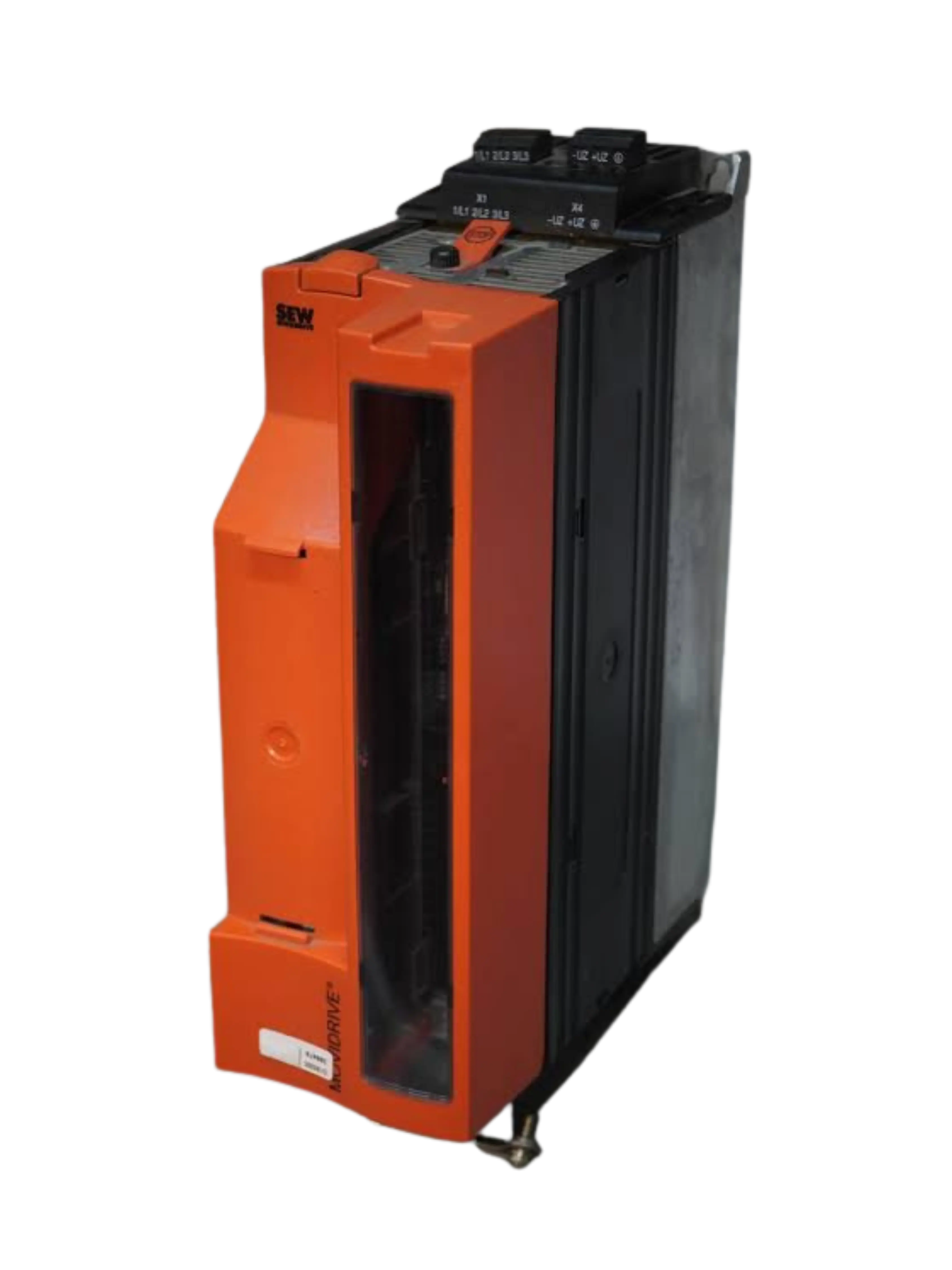

MOVIDRIVE MDX60B SEW-EURODRIVE - Compact Frequency Inverter Series

MOVIDRIVE MDX60B/61B is a SEW-EURODRIVE compact frequency inverter series spanning model sizes 0005 through 2500 (construction sizes 0S to 5), UL and cUL listed for North American installations.

The series covers a 230 V class for the smaller models (0015 to 0300) and a 380 to 500 V three-phase class across the full model range (0005 to 2500), with power terminal torque specifications and short circuit current ratings (SCCR) defined per size, up to 200,000 rms symmetrical amperes when protected by the listed fuses or circuit breakers, or 65,000 rms symmetrical amperes when protected by ABB or Rockwell Type E combination motor controllers. As with the rest of the MOVIDRIVE platform, the integral solid-state short circuit protection does not substitute for branch circuit protection, which must be provided separately in accordance with the National Electrical Code and local codes.
