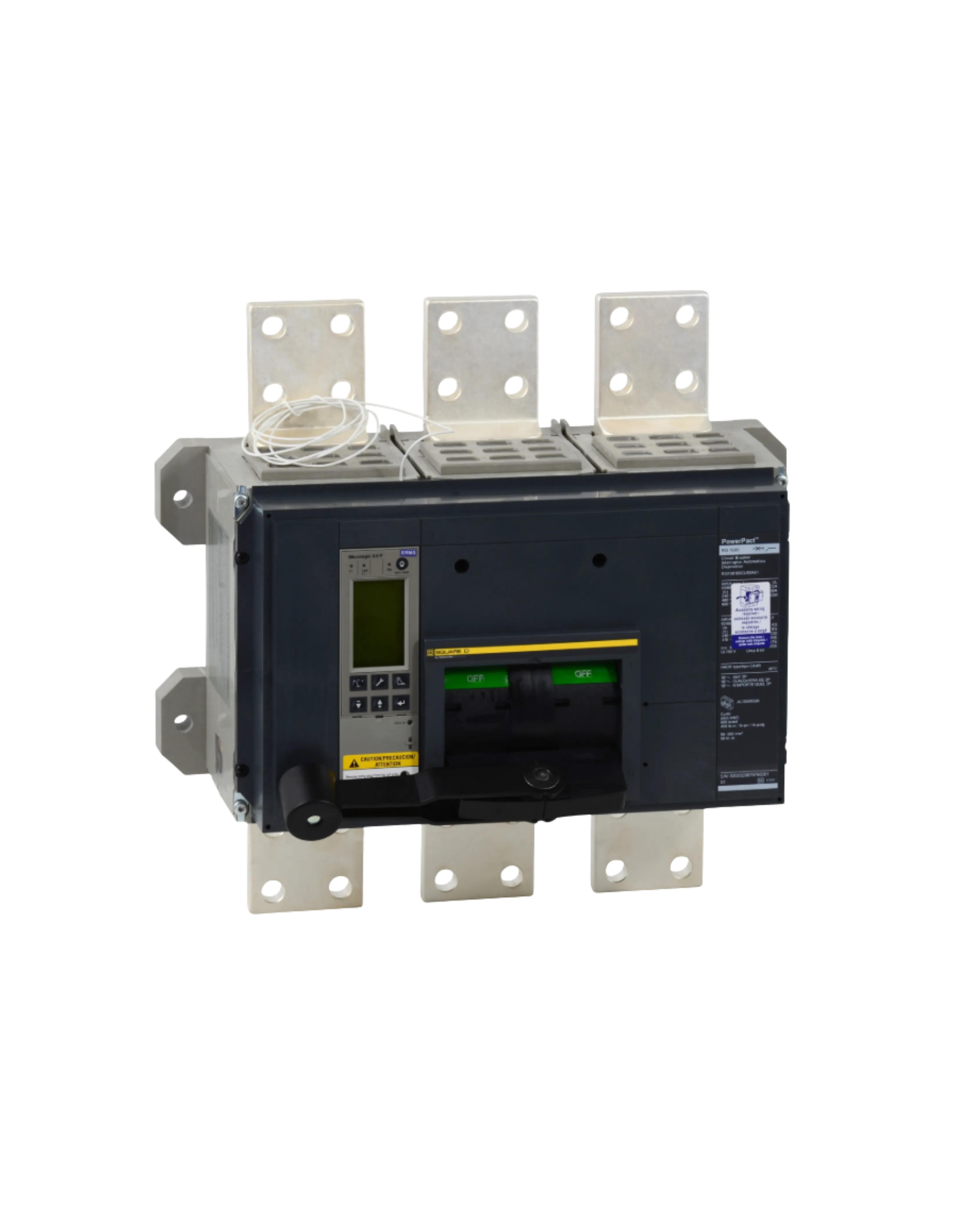

Schneider Electric PowerPacT R Circuit Breaker, 2000A, Micrologic 5.0P, Modbus

The Schneider Electric PowerPacT R (RJF36200U63AE1) is a 3-pole molded case circuit breaker rated 2000A for 600VAC distribution, fitted with an electronic power MicroLogic 5.0P (LSI) trip unit and Modbus communication, busbar mounted at 80% continuous current rating.

It delivers a breaking capacity of 25kA at 600VAC (100kA at 240VAC, 65kA at 480VAC per UL 489), an 8kV impulse withstand voltage, busbar line/load connections accepting 3/0 AWG to 750 kcmil conductors, is UL, CSA and NOM certified, rated IP40, and weighs 23.6kg.
