Schneider Electric PowerPacT P Circuit Breaker, 1200A, Micrologic 6.0A

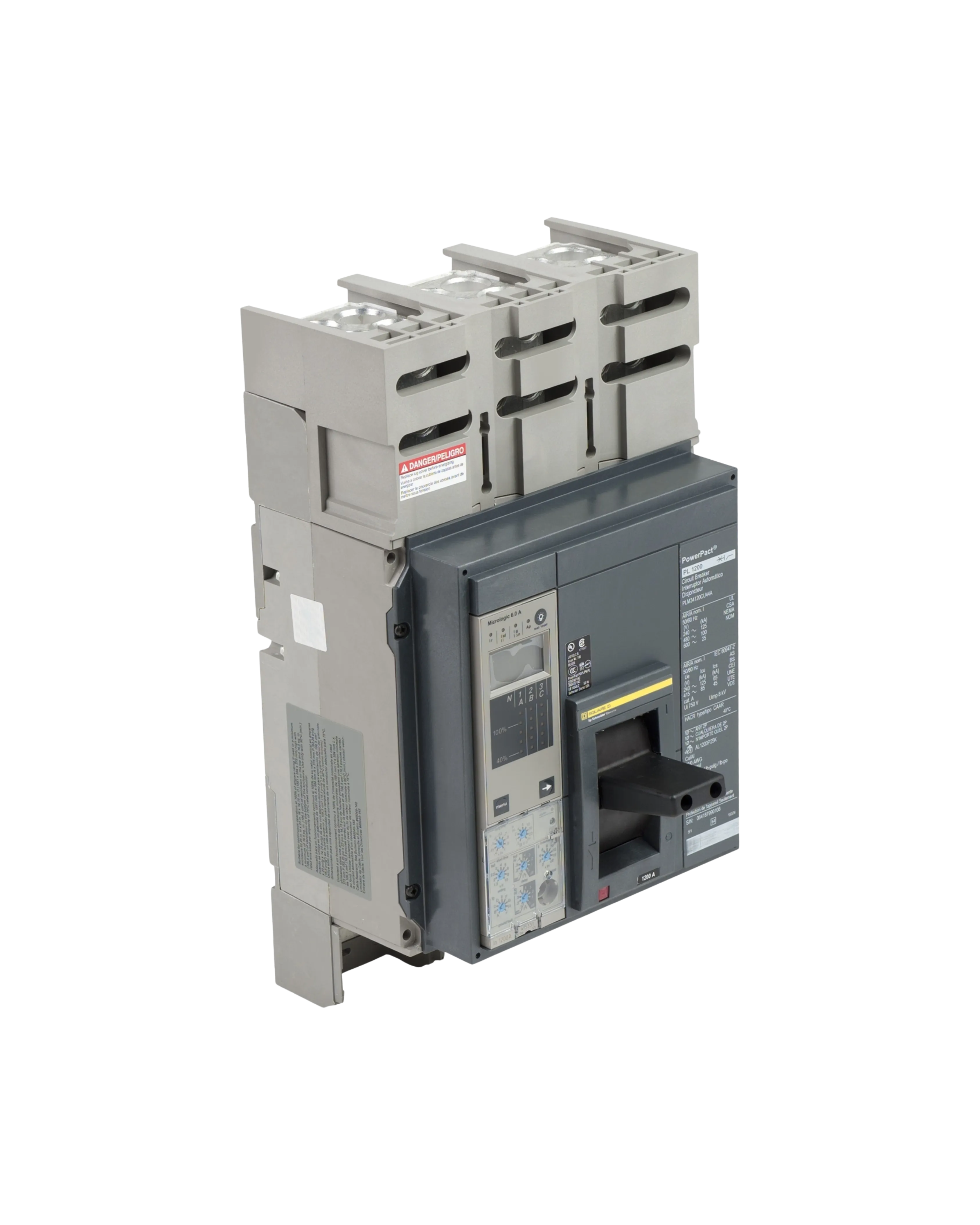

The Schneider Electric PowerPacT P (PLM34120CU44A) is a 3-pole molded case circuit breaker rated 1200A for 480VAC distribution, fitted with an electronic ammeter MicroLogic 6.0A (LSIG) trip unit with ground-fault protection, lug-mounted at 100% continuous current rating.

It delivers a breaking capacity of 100kA at 480VAC (125kA at 240VAC per UL 489), an 8kV impulse withstand voltage, accepts 4 x 3/0 AWG to 500 kcmil aluminum/copper conductors, is UL, CSA and NOM certified, rated IP40 at the front cover, and operates from -25 to +70 degrees C, weighing 14.5kg.
